Icy Dock ToughArmor MB111VP-B PCIe x4 Rugged and Removable U.2/U.3 NVMe SSD Enclosure

Supporting 1xU.2/U.3 NVMe SSD with height of up to 9.5mm, and compatible with PCIe 4.0 x4/ x8 /x16 slot

Icy Dock announced the ToughArmor MB111VP-B, a rugged and removable U.2/U.3 NVMe SSD enclosure designed to fit into a PCIe slot, supporting U.2/U.3 NVMe SSDs up to a height of 9.5mm.

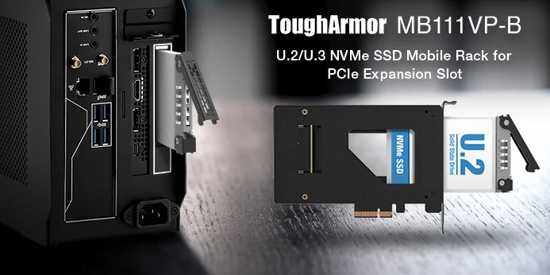

Icy Dock Mb111vp B Intro 2305

With the ability to fit into a single PCIe x4 expansion slot, this drive mobile rack allows for removal of U.2/U.3 NVMe SSDs from the PCIe slot while minimizing the clutter from data and power cables.

Icy Dock Mb111vp B Hot Swap Design

Drive swapping made simple
Say goodbye to complex drive-swapping procedures with the ToughArmor MB111VP-B. Equipped with a removable drive tray and supporting hot-plug functionality for U.2/U.3 NVMe drives, it allows user to add or remove drives in seconds without needing to power down or open the case. Furthermore, the SFF-8639 connector is rated for 10,000 insertion/removal cycles, allowing for longer-term usage with the system. (See FAQ for Hot-plug support).

Storage solution (or unleash pcie storage potential)

Icy Dock Mb111vp B Pcie Connector
Unlock the full potential of user desktop computer’s storage capabilities with the ToughArmor MB111VP-B by utilizing unused PCIe expansion slots. This storage solution allows adding a U.2/U.3 NVMe drive to system, effectively exceeding computer’s usual drive limitations. In addition, with the PCIe interface, user can take advantage of transfer speeds of up to 64Gb/s.

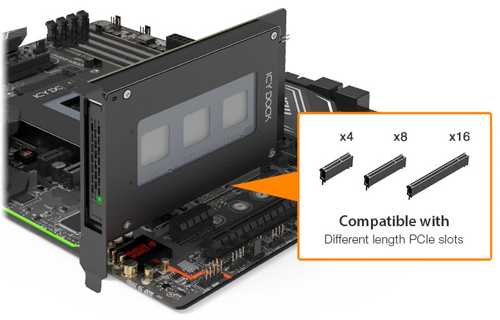

Icy Dock Mb111vp B Compatible Pcie Slots

Protection

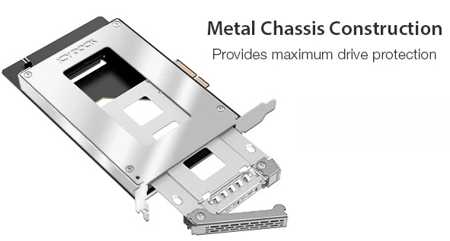

Icy Dock Mb111vp B Protection
Get the protection data deserves with the rugged and durable ToughArmor MB111VP-B. Its metal chassis, tray, and mounting bracket ensure a long product life and heat dissipation. The built-in anti-vibration mechanism helps to reduce noise and protect vs. environmental damage.

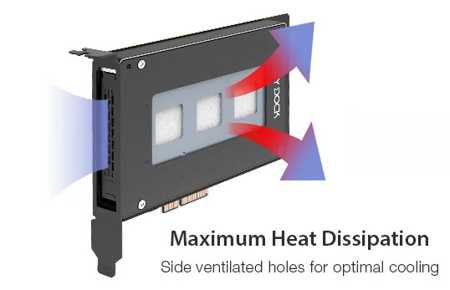

Icy Dock Mb111vp B Air Flow

In addition, large ventilation holes on both sides of the enclosure work in tandem with user system’s cooling system to maintain optimal temperatures for NVMe drives, even under a full load.

Packed with features

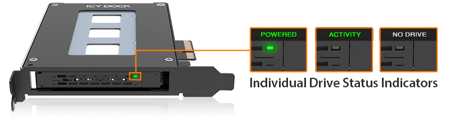

Icy Dock Mb111vp B Led Indicators
The MB111VP-B is a feature-packed device that leverages the PCIe interface to simplify cable management in PC cases. Additionally, the drive tray comes equipped with a LED indicator to display drive power and activity, while an optional 2-pin HDD activity signal output (cable not included) allows for easy transfer of the drive activity signal to the front of the computer.

Key features:

  • Supports 1xU.2/U.3 NVMe SSD with a height of up to 9.5mm
  • Compatible with PCIe 4.0 x4/ x8 /x16 slot
  • Supports PCIe Gen 4.0 x 4 speed up to 64Gb/s
  • Supports drive hot-plug without requiring the system to be powered down
  • Active Power Technology (APT) – drive activity LED only powers up if there is a drive installed in the bay
  • Optional 2-pin drive activity signal output – allows for easy transfer of the drive activity signal to the front of the computer case
  • Connector is rated for a minimum of 10,000 insertion/removal cycles
  • EMI Grounding – protects hard drives from electrical damage
  • Narrow design allows for multiple bays to be installed side-by-side in a modular design
  • 5-year limited warranty against all defects
  • Complimentary support from professionally trained US-based technical support agents

Specs:
Icy Dock Mb111vp B Spectal 2305Resource:
