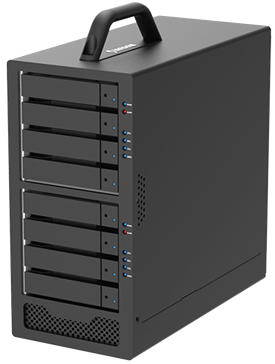

Raidon Technology Introduces the Stardom ST8R-B32 – 8-Bay USB-C Dual Hardware RAID Storage

Raidon Technology unveils the Stardom ST8R-B32 is an 8-bay USB-C DAS with two independent 4-drive hardware RAID groups, enabling different storage workflows in a single enclosure.Each group supports RAID 0, RAID 5, BIG, and JBOD, allowing active project storage and RAID-protected storage to operate side by side. Dedicated hardware RAID controllers manage each group independently without relying on host-based RAID software.

Why ST8R-B32?

• Separate Active and Protected Storage
  Keep performance-focused and protected data environments independent
• Flexible RAID Per Workflow
  Configure G1 and G2 independently as RAID 0, RAID 5, BIG, or JBOD
• Reduce Hardware Footprint
  Run two storage workflows without purchasing a second DAS
• Single-Cable Simplicity
  Access both RAID groups through one USB-C connection

Key Features

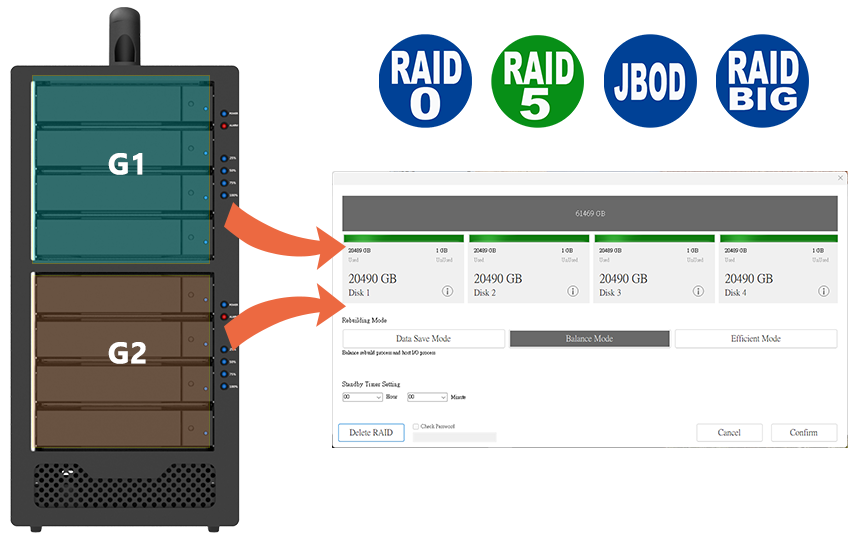

• Two independent hardware RAID controllers for separate RAID groups in one 8-bay enclosure
• Supports RAID 0, RAID 5, BIG, and JBOD
• Hot-swappable 3.5-inch HDDs and 2.5-inch HDDs/SSDs with lockable trays
• USB 3.2 Gen 2×2 with up to 20Gb/s aggregate bandwidth
• LEDs show drive access, failure, and rebuild progress at 25%, 50%, 75%, and 100%
• Independent 80mm cooling fans with High/Low control and 40mm power-supply cooling
• Temperature and fan-failure alerts via LED and buzzer
• Monitor both RAID groups and system status through a single Windows GUI
• Storage access on Windows, macOS, and Linux; monitoring utility available for Windows only
• Easy Data Vault enables direct photo and video backup from compatible USB-C iPhone and iPad devices

Click to enlarge

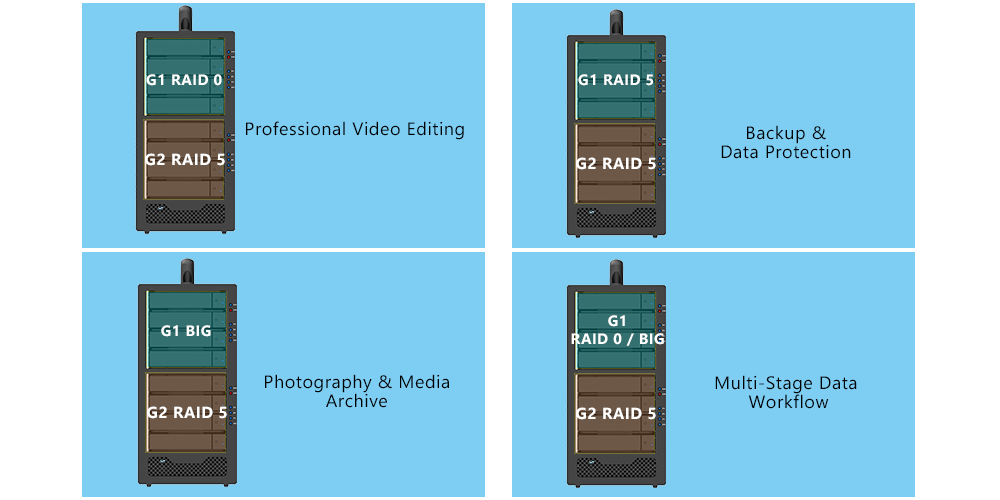

Main Applications

1. Professional Video Editing
   G1 — RAID 0: High-Speed Editing Workspace
   G2 — RAID 5: Protected Project Storage
   Handle demanding video editing while protecting completed project data in the same enclosure
2. Photography & Media Archive
   G1 — BIG: Photo & Video Library
   G2 — RAID 5: Protected Media Archive
   Use one group for media storage and the other for protected archiving, with independent management
3. Backup & Data Protection
   G1 — RAID 5: Primary Local Storage
   G2 — RAID 5: Secondary Local Copy
   Use two RAID 5 groups for local protection, with critical data backed up separately. Copying between groups requires user action or backup software. RAID does not replace an independent backup
4. Multi-Stage Data Workflow
   G1 — RAID 0 / BIG: Active Working Data
   G2 — RAID 5: Protected Data
   Move completed projects from a performance-focused workspace in G1 to RAID 5-protected storage in G2 without adding a second enclosure
5. Mobile Photo & Video Backup
   Back up photos and videos directly from compatible USB-C iPhone and iPad devices using Easy Data Vault

Click to enlarge

Choose Your Dual-Workflow DAS

Based on supported 30TB drives. Actual usable capacity depends on RAID configuration and formatting. USB bandwidth is shared between both RAID groups.

Product Specifications

*Actual usable capacity depends on RAID mode, drive capacity, formatting, and operating system.

*USB bandwidth is shared between both RAID groups. Achieving up to 20Gb/s requires a compatible USB 3.2 Gen 2×2 host and cable. Actual transfer speeds vary by configuration and workload.
