Raidon Technology Introduces IR2026 Dual-Drive Internal RAID-0/1 Module

Raidon Technology, Inc. announces the IR2026 internal RAID module, a compact, high-performance internal RAID module purpose-built for space-constrained industrial systems.

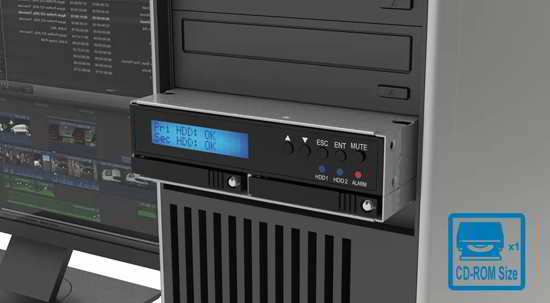

Designed to fit a standard 5.25-inch drive bay, it transforms a single slot into a dual-drive RAID array supporting 2×2.5-inch SATA 3 (6Gb) SSDs or HDDs, with configurable RAID-0 or 1 for either maximum throughput or mirrored data protection.

Engineered for 24/7 operation in IPCs, servers, and professional workstations, the iR2026 prioritizes uptime and serviceability with front-access drive maintenance, real-time status indicators, and platform-proven reliability. Advanced safeguards include GUI-based monitoring, key-lock security, silent active cooling, and overheat alarm protection – hallmarks of the company’s trusted 5.25-inch dual-bay RAID architecture.

Space-Saving Design:

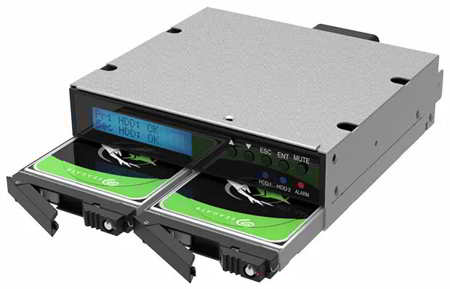

Fits 2x2.5” SATA HDD/SSDs (9.5mm or 7mm height) into a single standard 5.25” drive bay.

Hardware RAID Performance:

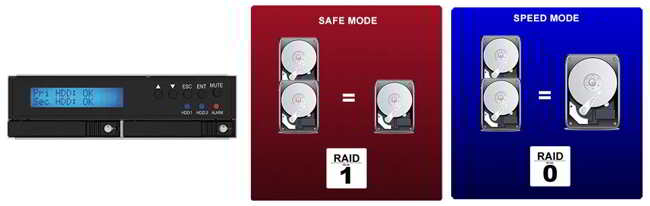

Selectable RAID-0 for high-speed striping or RAID-1 for automated mirroring and data protection.

Optimized Single-Port Connectivity:

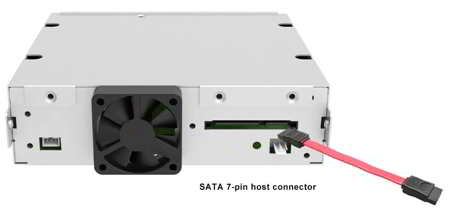

Effectively manages 2 drives through a single SATA 7-pin host connector. This hardware RAID design saves motherboard ports and reduces cable clutter while sustaining high throughput over a SATA 3 (6Gb/s) host link for SSD/HDD workloads.

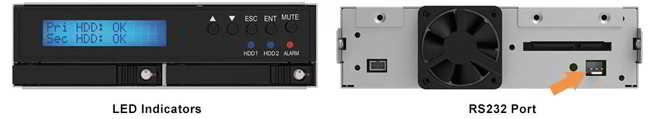

Advanced Monitoring:

• RS232 Port: Allows custom software integration for drive status monitoring

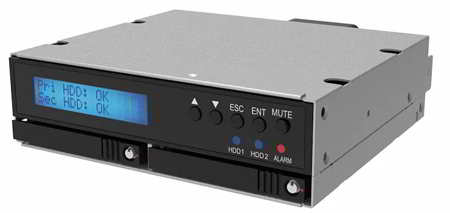

• LED Indicators: Visual status for drive activity and health

Click to enlarge

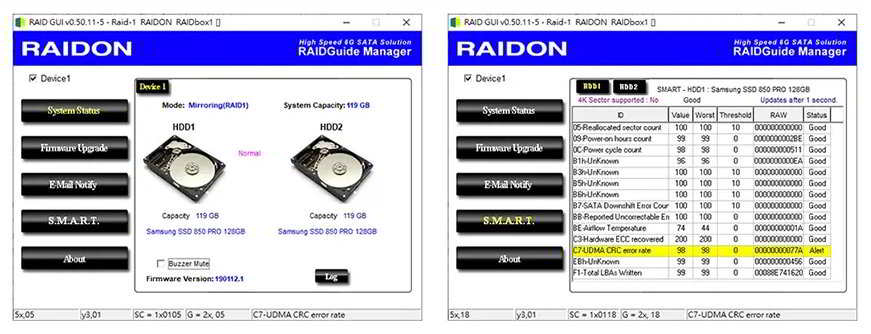

• STATUSGUARD GUI: Dedicated Windows software for real-time drive S.M.A.R.T. monitoring

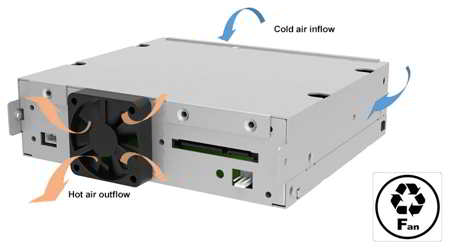

Reliable Cooling and Durability:

Rugged metal housing with a built-in 40mm silent cooling fan ensures optimal operating temperatures.

Secure and Easy Maintenance:

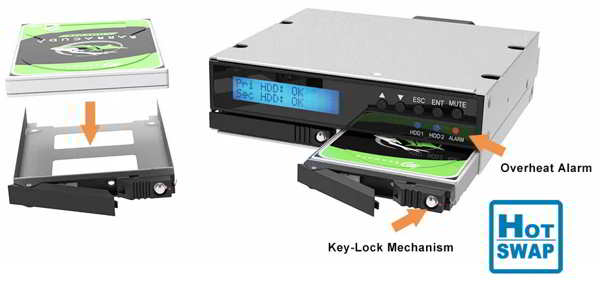

• Hot-Swappable Trays: Replace drives without powering down the system
• Key-Lock Mechanism: Prevents unauthorized physical access to drives
• Overheat Alarm: Audible buzzer with a mute button for immediate system warnings

Benefits :

• Maximized Space Efficiency
  In industrial and server environments where internal space is at a premium, the iR2026 allows you to double your drive density without requiring additional mounting brackets. Its short depth (138mm) ensures compatibility with almost any chassis, including compact IPC cases
• Business Continuity and Data Security
  System downtime is costly. By configuring the iR2026 in RAID-1, you create an instant real-time backup. If one drive fails, your system continues to run seamlessly, and the hot-swap capability allows you to replace the faulty drive without interruption
• Industrial-Grade Reliability
  Built for 24/7 operation, the rugged metal construction and active cooling fan protect your drives from heat and physical stress. The addition of the RS232 signaling port makes it a perfect fit for automated factory systems that require remote health monitoring

Applications
The iR2026 is versatile but excels in environments requiring durability and data safety:

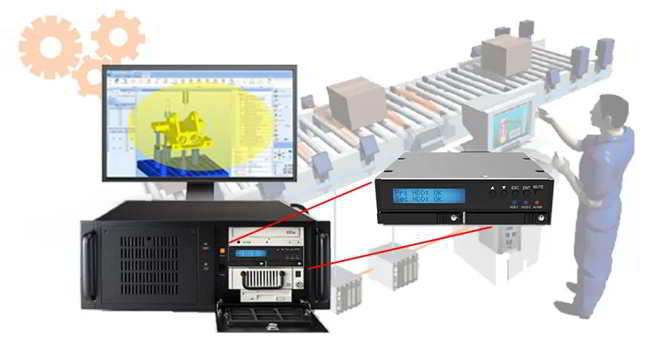

• Industrial Automation (IPC): Ideal for factory floor controllers where vibration resistance and data redundancy are critical. The compact size fits easily into control cabinets
• Surveillance and DVR: Use RAID-1 to ensure that critical footage is never lost due to a single drive failure

• SMB Servers and Workstations: A perfect boot-drive solution. Run your OS in RAID-1 to ensure the server stays online even if a boot drive crashes
• Embedded Systems: The RS232 monitoring capability allows for integration into ‘headless’ systems where no monitor is attached

Specs:
