From AIC 3 Storage Dual Socket Rackmount Server Powered by 3rd Gen Scalable Processors

Including 1U 4-bay 3.5-inch, SB202-A6 2U 12-bay 3.5-inch, and SB201-A6 2U 24-bay 2.5-inch

AIC Inc. announced a product family of dual socket storage servers.

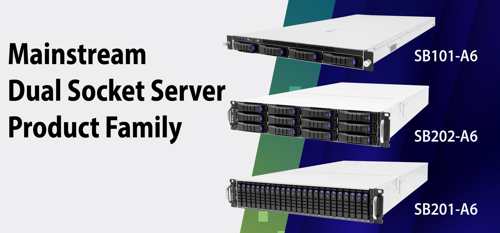

Aic Severs 2207 Intro

Powered by 3rd Gen. Xeon Scalable processors, these rackmount storage servers are high-performance and designed with high flexibility to support various storage devices. This product family provides options ranging from cost-efficiency servers to performance all-flash NVMe platforms and can fulfill a range of data storage applications from storage tiering, virtualization to cloud datacenters and HPC.

This product family includes 3 models, SB101-A6, SB202-A6 and SB201-A6. These dual socket server systems are with company’s server board (codename:A6) that is based on 3rd Gen. Xeon Scalable processors. By leveraging 3rd Gen. Xeon Scalable processors’ features, including CPU TDP supports up to 270W, DDR4 memory, PCIe Gen4 ready, built-in AI and security, these server systems provide performance and low latency while maintaining the cost-effective benefits. Customers can utilize the enhanced Intel CPU performances, memory capabilities and doubled PCIe Gen4 I/O bandwidth to tackle the challenges in storage workloads. Besides, these server systems are designed with universal (tri-mode) backplanes and are able to support SAS (*), SATA, and NVMe, providing flexibility for customers to load either 3.5” or 2.5” HDDs/SSDs. With tool-less features, these systems can save operators amount of maintenance resources, which is crucial for hyper-scaler and cloud environments.

Storage server product family at glance:

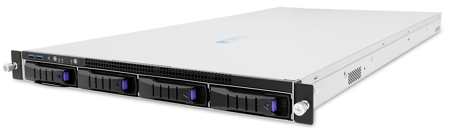

SB101-A6 front and rear

Aic Sb101 A6 Front 2207

Aic Sb101 A6 Rear 2207

SB101-A6, a 1U 4-bay 3.5” rackmount server, supporting dual 3rd Gen. Xeon Scalable processors, 32xDDR4 DIMMs, with 2xPCIe 4.0 x16 and 1xOCP 3.0 x16 slots, tri-mode backplane to support 4xSAS/SATA/NVMe HDD/SSDs, compatible with 2.5” drives.

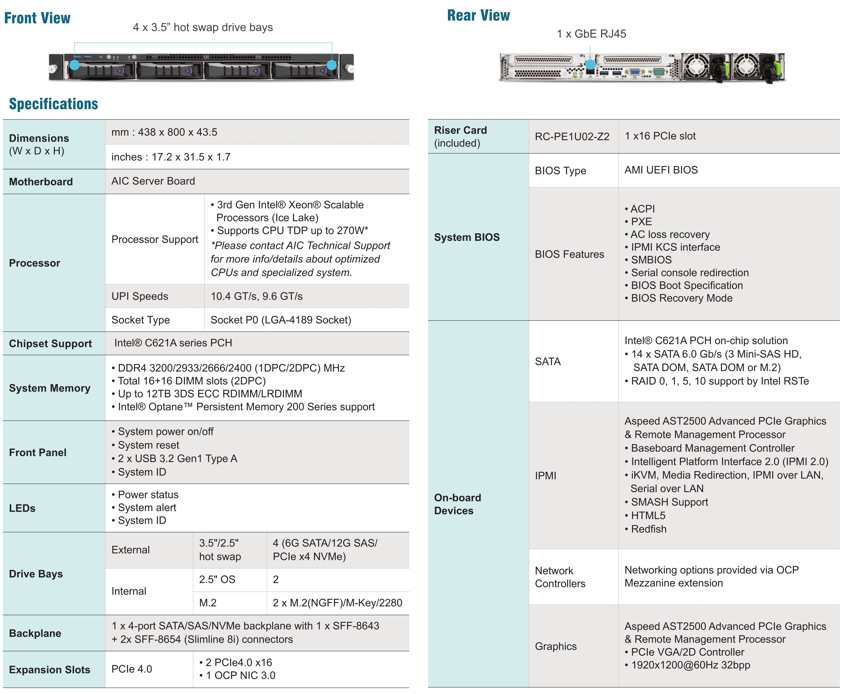

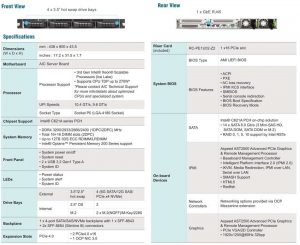

Aic Sb101 A6 Spectabl

SB202-A6 front and rear

Aic Sb202 A6 Front 2207

Aic Sb202 A6 Rear 2207

SB202-A6, a 2U 12-bay 3.5”rackmount server, supporting dual 3rd Gen. Xeon Scalable processors, 32xDDR4 DIMMs, with 2xPCIe 4.0 x16, 4xPCIe 4.0 x8 and 1xOCP 3.0 x16 slots, tri-mode backplane to support 12xSAS/SATA/NVMe HDD/SSDs, compatible with 2.5” drives.

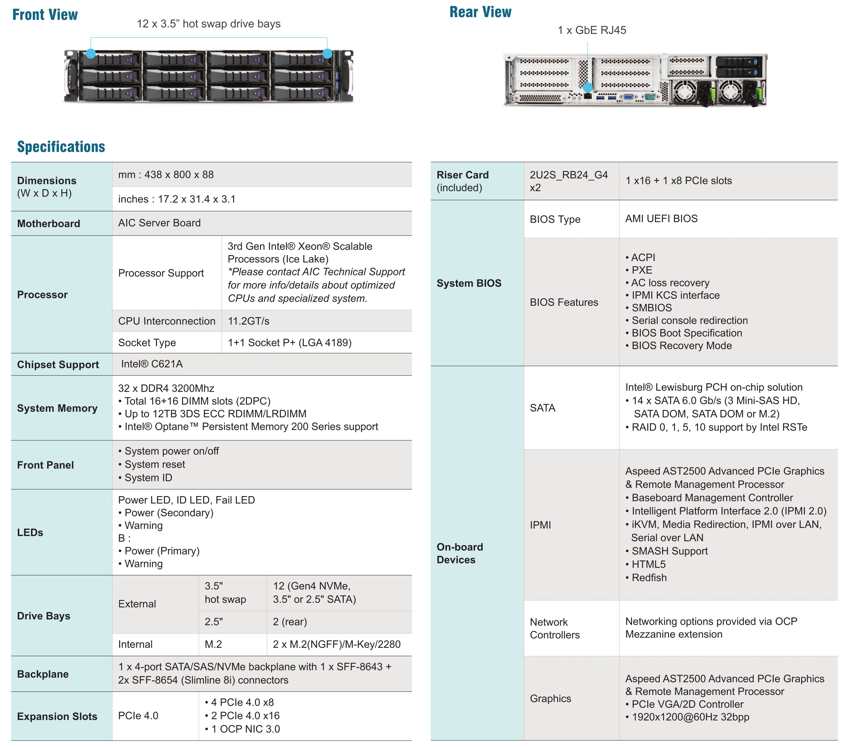

Aic Sb202 A6 Spectabl

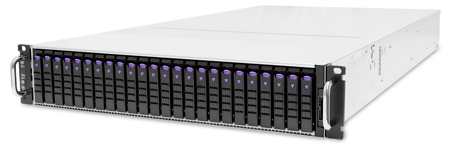

SB201-A6 front and rear

Aic Sb201 A6 Front 202207

Aic Sb201 A6 Sb201 A6 Rear

SB201-A6, a 2U 24-bay 2.5” rackmount server, supporting dual 3rd Gen. Xeon Scalable processors, 32xDDR4 DIMMs, all-flash NVMe SSDs, with 4xPCIe 4.0 x16 and 1xOCP 3.0 x16 slots.

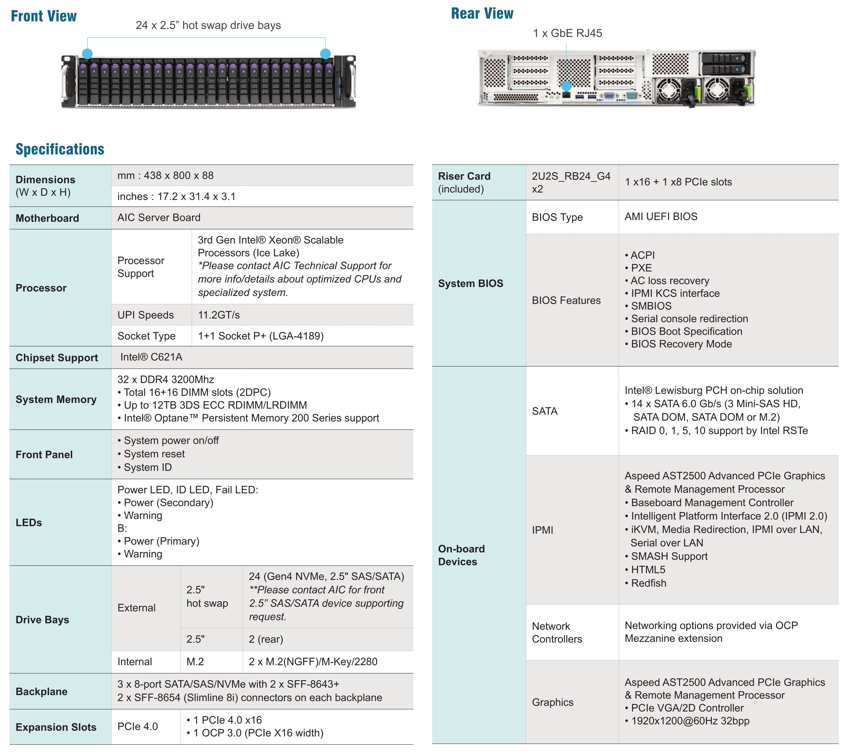

Aic Sb201 A6 Spectabl

Thee company’s dual socket servers based on 3rd Gen. Xeon Scalable processors are expected to be shipped in 3Q22.

(*) Additional SAS HBA/RAID card required

Resources:
SB101-A6 video
SB202-A6 video
SB201-A6 video
