AIC 2U 4-Node Hybrid Storage Server Multi-Node Series

Including HP201-VL and HP202-VL models with dual-socket 2nd Gen. Xeon Scalable processor, and HP201-AG and HP202-AG supporting single-socket AMD EPYC

AIC Inc., announced its multi-node product series.

Aic Multinode Servers Intro 2206

These multi-node platforms are designed with an architecture that combines compute, storage and networking support into a compact system. Featuring flexibility and performance, these servers are for HCI, multi-access edge computing and HPC..

The company’s multi-node servers are 2U 4-node rackmount server systems with options based on either 2nd gen Xeon scalable processors or AMD EPYC 7002/7003 series processors. Each server node has 2 HHHL PCIe x16 slots plus one OCP 2.0 PCIe x16, providing high density 3 add-in cards utilization. With maximized PCIe lanes, cable-less design and hot-pluggable support for each server node, the firm’s multi-node servers are designed to deliver performance and ease of maintenance. Optimized for software-defined HCI, this multi-node servers offer flexibility and scalability. The virtualized and consolidated nature of HCI provides better space and energy utilization and reduces total cost of ownership.

Multi-node server product series include:

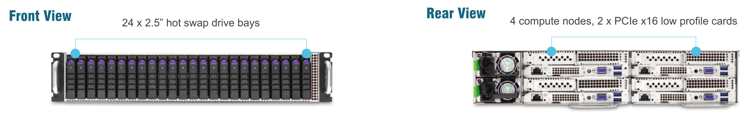

HP201-VL

HP201-VL

HP201-VL, 2U 4-node hybrid storage server supporting dual-socket 2nd Gen. Xeon Scalable processors boards, 16 memory slots, 24×2.5” NVMe SSDs and 8xSATA (7mm), 2xHHHL PCIe Gen3 x16 slots and 1xOCP2.0 PCIe x16 slot.

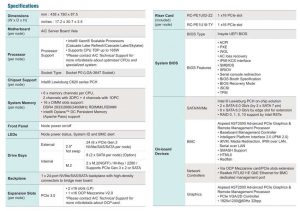

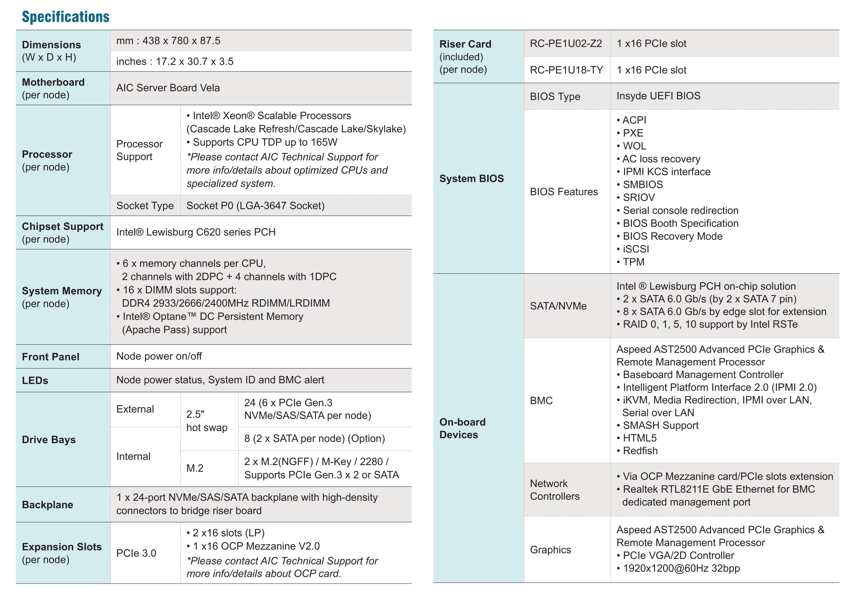

Aic Hp201 Vl Spectabl

HP202-VL

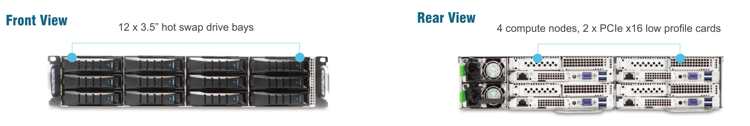

Aic Hp202 Vl Front Rear 2206

HP202-VL, 2U 4-node hybrid storage server supporting dual-socket 2nd Gen. Xeon Scalable processors boards, 16 memory slots, 12×3.5” SATA/SAS drives, 2xHHHL PCIe Gen3 x16 slots and 1xOCP2.0 PCIe x16 slot

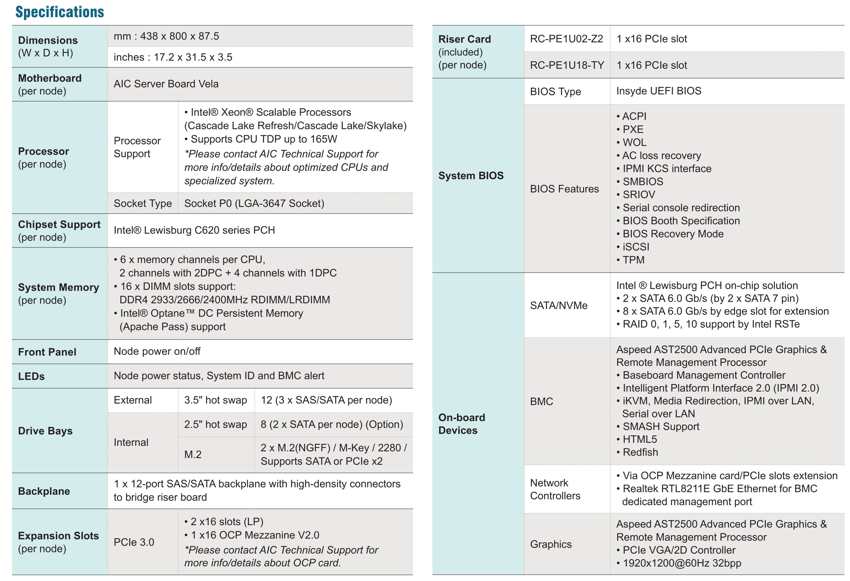

Aic Hp202 Vl Spectabl

HP201-AG

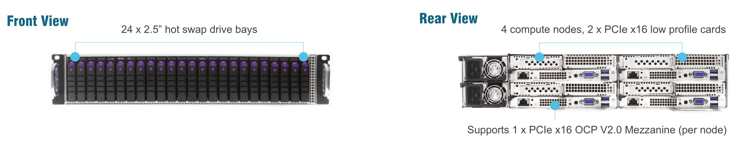

Aic Hp201 Ag Front Rear

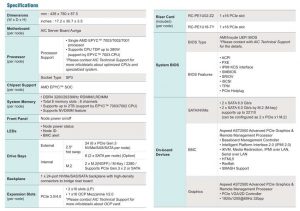

HP201-AG, 2U 4-node hybrid storage server supporting single-socket AMD EPYC boards, 8 memory slots, 24×2.5” NVMe SSDs and 8xSATA (7mm), 2xHHHL PCIe Gen4 x16 slots and 1xOCP2.0 PCIe x16 slot

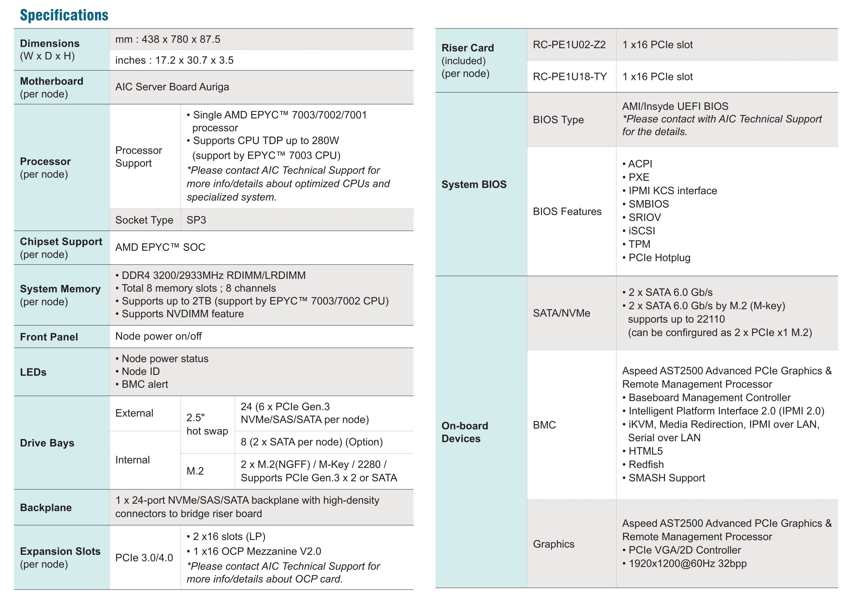

Aic Hp201 Ag Spectabl

HP202-AG

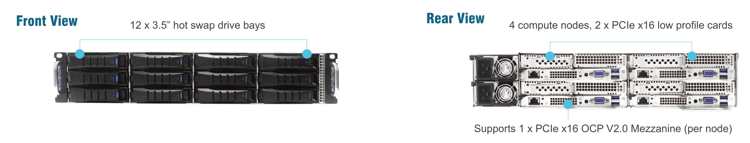

Aic Hp202 Ag Front Rear

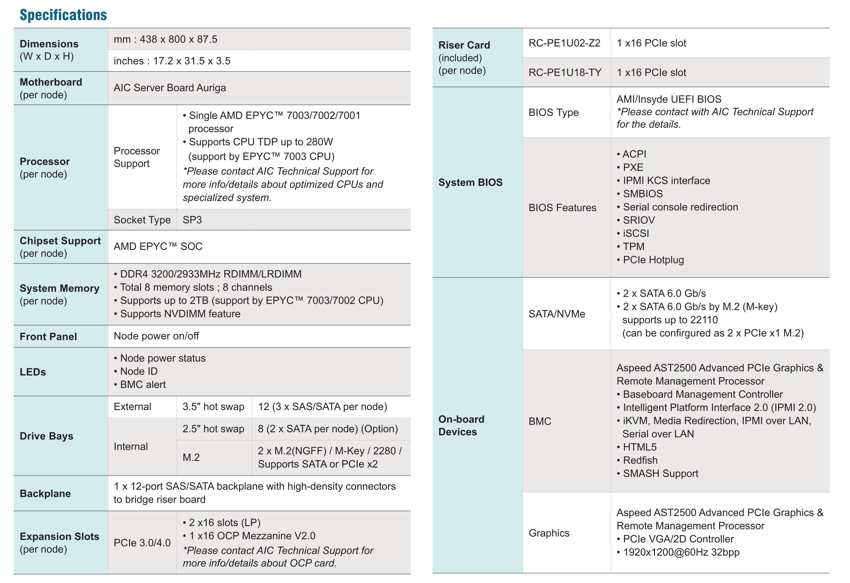

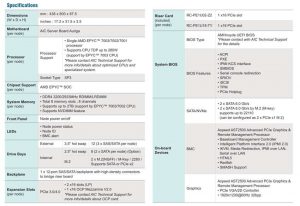

HP202-AG, 2U 4-node hybrid storage server supporting single-socket AMD EPYC boards, 8 memory slots, 12×3.5” SATA/SAS drives, 2xHHHL PCIe Gen4 x16 slots and 1xOCP2.0 PCIe x16 slot

Aic Hp202 Ag Spectabl
