Raidon iR2031 Internal RAID Storage Bay for 2×2.5”and 1×3.5” 6Gb SATA HDD/SSD

Designed into CD-ROM bay, and supporting JBOD (1 for 3.5”/2.5” SATA HDD/SSD) and RAID-0/1 (-2 for 2.5” SATA HDD/SSD)

Raidon, a brand name of Raidon Technology, Inc, announces iR2031 internal RAID storage designed in one CD-ROM bay for 2×2.5” and 1×3.5”/2.5” 6Gb SATA HDD/SSD, comes with metal trays with lock and provides 2×2.5”disk tray for RAID 1/0 and 1×3.5” disk tray for independent volume.

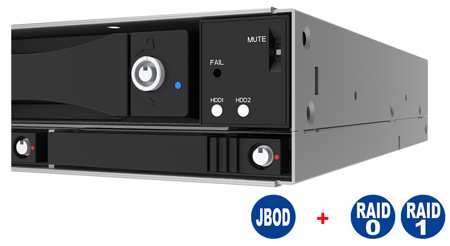

Ir2031 Internal Raid Storage Led

The iR2301 is made up of one RAID which supports RAID-1/0 and an independent JBOD that has the separate SATA host interface. It provides users diversified applications, that users can use 1×2.5” SSD as a boot disk to speed up the system performance, and set RAID-1 disk array as a data disk to protect the data security. Or users can use RAID-1 disk array as a boot disk, and install 1×3.5” HDD as a data disk to save the large data.

Raidon Ir2031 Internal Raid Storage 1

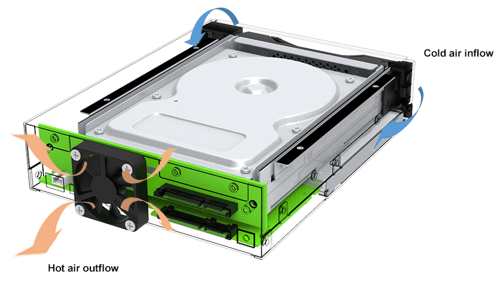

The iR2301 provides mute switch, data access and fail LED signal, so that users can check the status of system all the times. The fail signal will be lighting and beeping when the device fails, so users can turn off the mute switch to avoid constant buzzing and noise. It also comes with the 2×2.5” and 1×3.5” hot swappable metal drive trays with lock to secure the drive in place and to protect the data safely. Besides, it is equipped with the 4cm silent fan for the better heat dissipation and the usage of hard drives extension.

Ir2031 Internal Raid Storage 3

 It is the dual function storage, not only offering the backup data security but also for on the go data transport. It is a choice RAID internal storage and suitable for applications uses on professional workstations, file servers, and real-time backup storage systems.

Raidon Ir2031 Internal Raid Storage 2


  • Support JBOD (1 for 3.5”/2.5” SATA HDD/SSD) and RAID-0/1 (-2 for 2.5” SATA HDD/SSD)
  • Support 2×2.5″ SATA HDD/SSD and 1×3.5”/2.5” SATA HDD/SSD
  • Support Mute and Fail LED signal
  • Hot swappable drive trays with key lock
  • Silent fan for heat dissipation

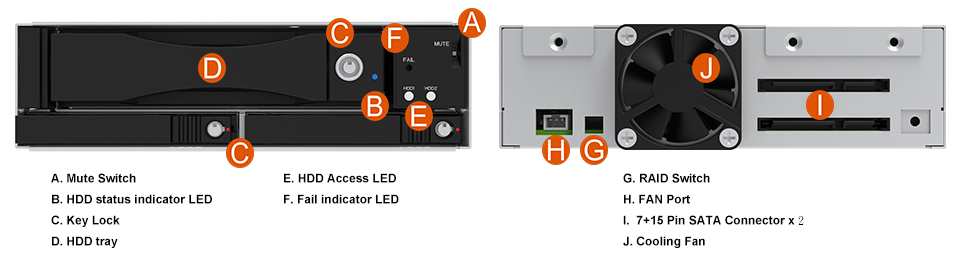

Ir2031 Internal Raid Storage Front And Rear

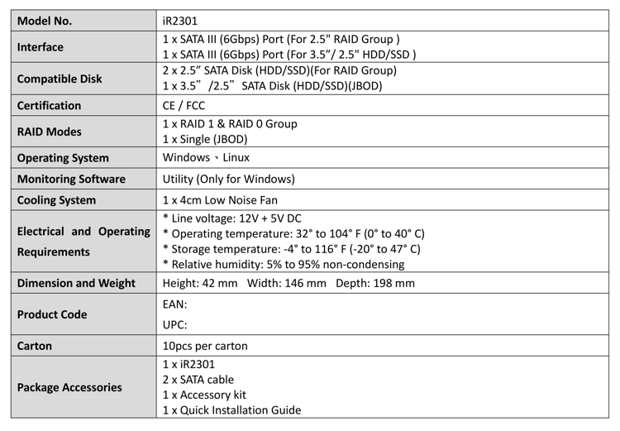

Raidon Ir2301 Spectabl 2205
