ATP Electronics N750Pi Series Configured as pSLC and N650Si/Sc Series in Native TLC M.2 2280 NVMe SSDs Built on 3D TLC NAND

From 40 to 320GB, sustained sequential write performance up to 2,000MB/s for N750Pi Series SSD, and from 120 to 960GB for N650Si/Sc Series SSDs

ATP Electronics, Inc. introduces its M.2 2280 NVMe SSDs built on 3D TLC NAND flash: the N750Pi series, which is configured as pseudo single level cell (pSLC) and the N650Si/Sc Series in native TLC.

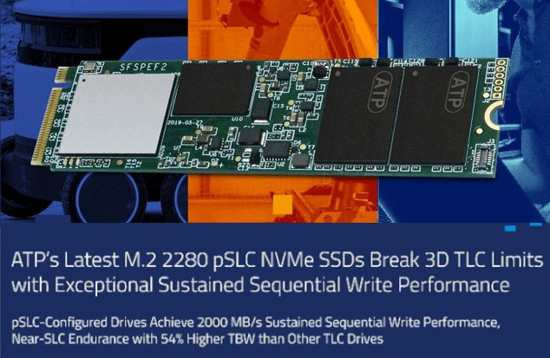

Atp N750pi Ssd 2203 Intro

These SSDs use a die package to surmount the endurance and write performance challenges of 3D TLC NAND flash and to meet the requirements of write-intensive industrial and embedded applications.

Supply assurance
The company has always worked with its suppliers with long-term planning and commitment to ensure supply continuity to support the mass production ramp for the latest NVMe offerings and other recently launched TLC NAND-based product lines.

With all the supply challenges over the past couple years, we have heavily invested in and improved our approach to working with our supply base in general,” said Jeff Hsieh, SVP. “Suppliers are looking for predictability and commitment, especially amidst an atmosphere where overbooking is prevalent. While we have always been oriented towards establishing long-term relationships, we are further strengthening this strategy to ensure supply stability for the long haul. By aligning specific key items such as NAND with long-term agreements, we are confident that we will be able to support key growth areas such as TLC-based SSDs despite the current or future industry turbulence.”

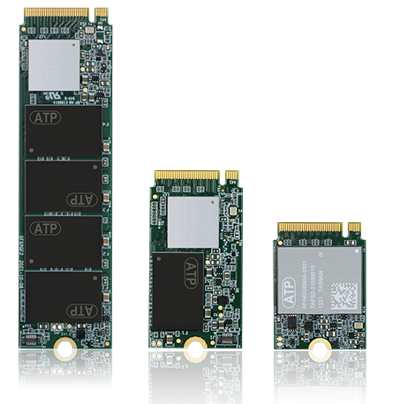

Atp N750pi Series 2203

N750Pi Series SSDs are configured in full-drive pSLC mode with capacities from 40 to 320GB. Their sustained sequential write performance can reach over 2,000MB/s. The die package prolongs lifespan to near-SLC levels with 54% higher endurance compared with other TLC-based NVMe SSDs.

ATP’s new full-drive pSLC N750Pi Series SSDs deliver impressive sustained sequential write performance,” said Chris Lien, head, embedded SSD business unit. “Sustained performance is the average, real-world, steady speed that our drives can run for extended periods of time. This is a more realistic gauge especially for write-intensive industrial/embedded applications that require reliable, uninterrupted operation. Depending on drive capacity, these new SSDs deliver maximum sustained sequential write performance of over 2,000 MB/s, which is far above industry standards.

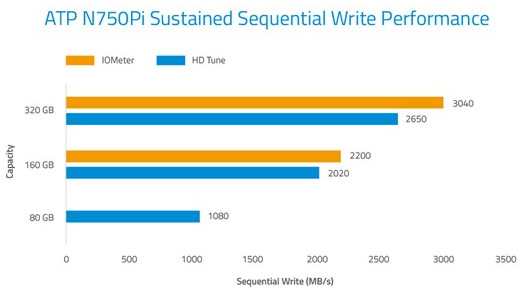

Atp N750pi Ssd 2203 Scheme1

N750Pi SSDs are configured in pSLC mode, resulting in capacities lower than typical TLC drives but delivering higher reliability and longer service life.

Atp N750pi Ssd 2203 Scheme2

N650Si/Sc Series SSDs operate in native TLC flash. They perform reliably and extend endurance by 66% more than other TLC drives. Available in higher capacities, from 120 to 960GB, these drives have close to MLC TBW ratings.

Atp N750pi Ssd 2203 Scheme3

Reliability features:

  • Tested and validated for compliance. The N750Pi and N650Si/Sc SSDs have been tested and validated by the following ULINK DriveMaster Test Suites: ULINK NVMe Protocol, Regression, and TCG Opal Compliance.

  • I-Temp support. The N750Pi and N650Si/Sc SSDs support industrial temperature (I-Temp), allowing them to operate reliably from -40°C to 85°C, while N650Sc SSDs are support commercial temperature (C-Temp) ranges from 0°C to 70°C.

  • MCU-Based Power Loss Protection. Models with power loss protection (PLP) mechanism provides an extra layer of reliability, combining hardware and firmware solutions to protect both data and storage device.

  • Self-Encrypting Drive (SED) security. N650Si/Sc SSDs are optionally available as SEDs. They comply with TCG Opal 2.0 specs and provide self-encryption capabilities with hardware AES-256 XTS engine for secure storage without performance trade-off.

  • LDPC. A proprietary 2KB codeword Low-Density Parity-Check (LDPC) ECC enhances the endurance and data retention of 3D TLC NAND.

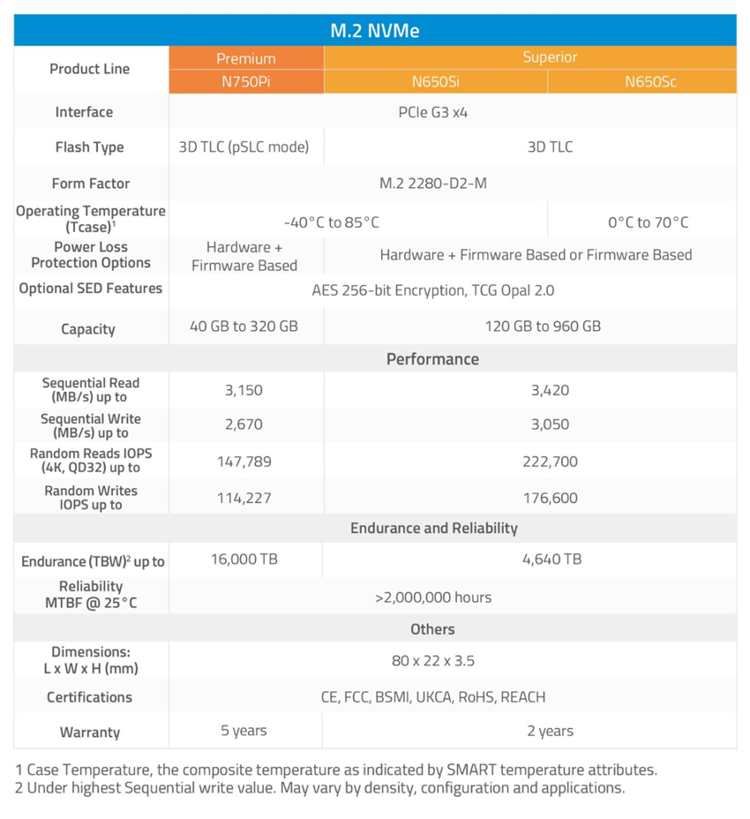

Atp N750pi Ssd 2203 Spectabl
