Qnap 6-Bay TVS-675 Desktop NAS With Zhaoxin KaiXian KX-U6580 8-Core 2.5GHz Processor and Dual 2.5GbE RJ45 Ports

Qnap Systems, Inc. introduced the 6-bay TVS-675 NAS powered by the x86 Zhaoxin KaiXian KX-U6580 8-core 2.5GHz processor.

Featuring dual-port 2.5GbE connectivity, dual M.2 SSD slots for cache acceleration, PCIe expansion, multi-cloud backup, 4K HDMI 2.0 output, expandable storage capacity and install-on-demand apps, it provides businesses with a cost-effective 2.5GbE NAS solution.

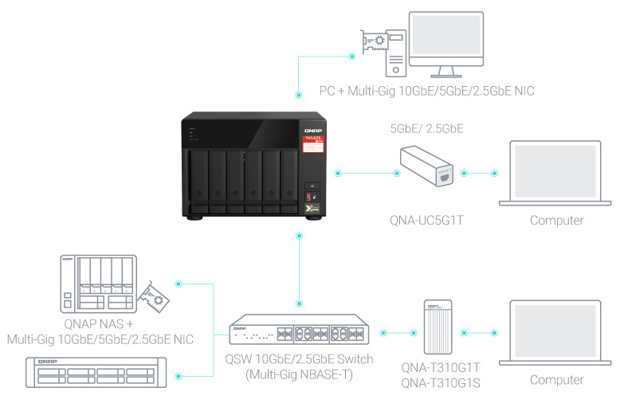

“The TVS-675 NAS has enormous processing power for driving VM performance and tackling complex multitasking workloads.” said Stanley Huang, product manager. “It is also a perfect match with Qnap’s numerous managed and unmanaged 10GbE/2.5GbE switches to create a high-speed, budget-wise, and future-proof collaborative network environment.“

The TVS-675 has 8GB DDR4 memory (expandable up to 64GB – 2x32GB) and supports AES-NI encryption acceleration. The built-in dual 2.5GbE RJ45 ports can deliver up to 5Gb/s potential under Port Trunking, satisfying bandwidth-hungry applications such as large file transfers, fast backup/restoration, and multimedia transfer & editing. To attain optimal I/O and reduced latency, users can configure SSD caching by using the 2 built-in M.2 2280 SSDs slots (supports PCIe NVMe Gen 3 SSDs or 6Gb SATA SSDs, sold separately) without occupying disk drive bays. By utilizing the company‘s Qtier technology the NAS can benefit from auto-optimized tiered storage to achieve performance while also balancing storage utilization.

The TVS-675 provides 2xPCIe Gen 3 x4 slots allows for installing expansion cards to enhance NAS functionality (such as a 2.5/5GbE/10GbE network card, or a QM2 network/storage card). The HDMI 2.0 output allows for directly displaying NAS multimedia and VMs on a monitor or TV. The product meets business storage demands for security, file sharing, central management, local/remote/cloud backup, and snapshot protection to facilitate daily tasks with greater productivity. The built-in App Center increases NAS application potential, such as hosting multiple virtual machines and containers, deploying a cloud storage gateway, building a professional video surveillance system, backing up S3 object cold data, and more.

TVS-675 NAS users can switch the OS from QTS to QuTS hero – the firm‘s ZFS-based NAS OS that provides end-to-end data integrity, data reduction (inline data de-dupe, compression, and compaction), and more features for users that need to prioritize data reliability over performance.

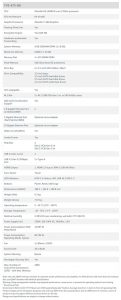

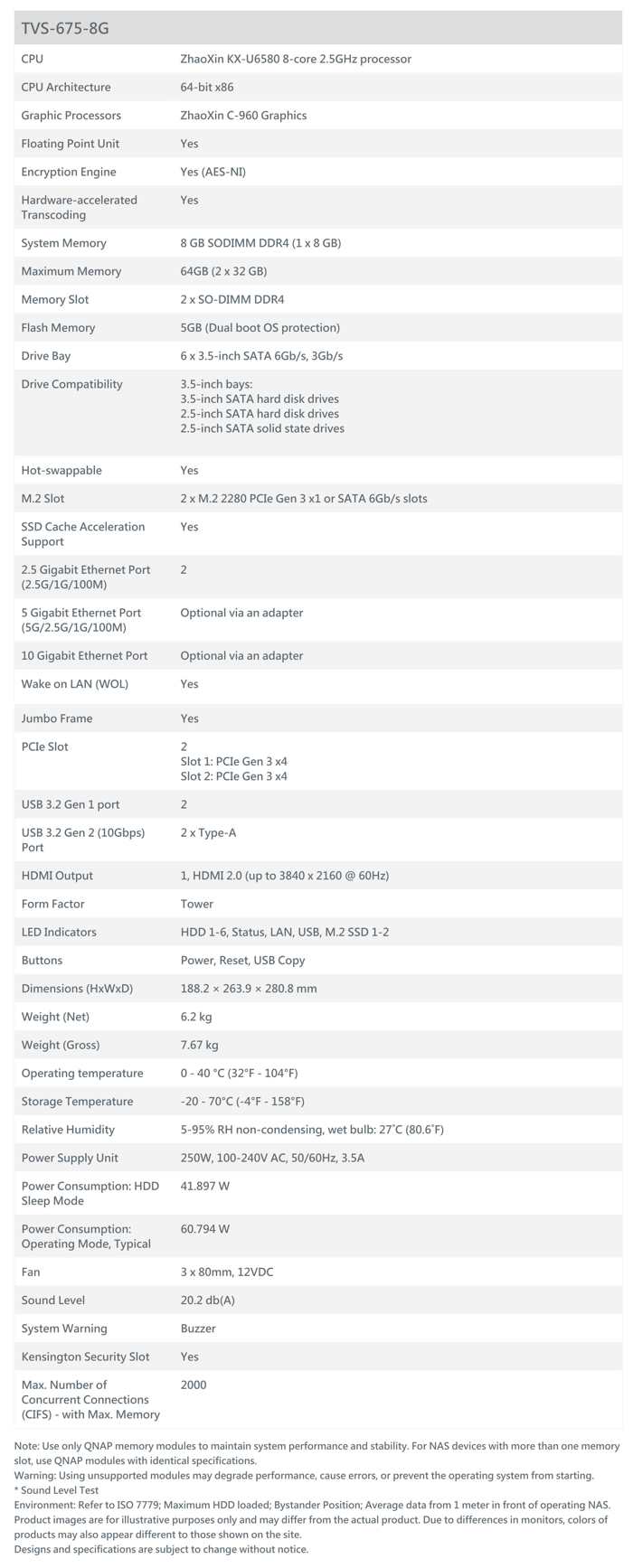

Key specs:

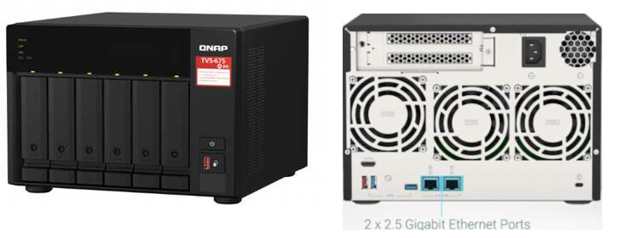

TVS-675-8G: Tower model, 6xhot-swappable 2.5-inch/3.5-inch 6Gb SATA drive bays, Zhaoxin KaiXian KX-U6580 8 cores/8 threads 2.5GHz processor, 8GB memory (expandable to 64GB), 2×2.5GbE RJ45 LAN ports (2.5Gb/1Gb/100Mb), 2xPCIe Gen 3 x4 slots, 2xM.2 2280 SSD slots (supports NVMe PCIe Gen 3 or 6Gb SATA), 2xUSB 3.2 Gen 2 (10Gb/s) ports, 2xUSB 3.2 Gen 1 (5Gb/s) ports, and one HDMI 2.0 (4K @60Hz) output.
