Swissbit SD and CompactFlash Industrial Cards S-250 and C-350 for Long-Term Availability

7-year guarantee for memory cards aimed at legacy systems, industrial temperature of -40°C to +85°C, and operational life with data retention of up to 10 years

Swissbit AG extended the availability of its SLC-based SD memory cards, microSD memory cards and CompactFlash cards.

Swissbit S 250 C 350

The product series S-250(u) and C-350 deploy the same product architecture as the previous S-200(u) and C-300 products. The new models replace these industrial memory products, which were introduced in 2008, and extend their availability well beyond 2027. Since the new products feature identical interfaces, controllers and NAND flash technologies, qualification of this series can be carried out without risk and with minimal effort. This facilitates continued use in embedded control units that have already been in operation for a long time in automation, rail and avionics systems.

With the S-250(u) and C-350 cards, the company has extended the long-term availability of its robust and durable storage media to a total of almost 20 years. While NAND flash products usually have a short availability due to relatively rapid innovation cycles, the firm meets the critical requirements of industrial embedded systems with long life cycles through these special products.

Swissbit S 250 S 250u Legacy Sd

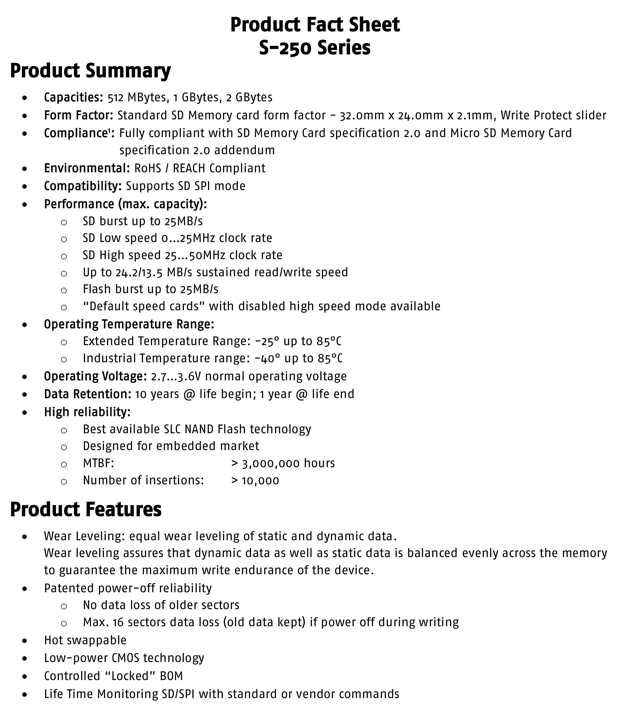

The S-250-SD and S-250u-microSD memory cards are SLC-based memory products that comply with the SD standard and support the SPI mode. The capacities range from 512MB to 2GB. The cards are specified for an industrial temperature range of -40°C to +85°C, offer a long operational life with data retention of up to ten years, and feature a robust design with an increased gold layer on the contacts. The cards are manufactured in the company’s factory in Berlin, Germany, using a chip-on-board process.

Swissbit S 250 Spectabl

Memory for legacy systems

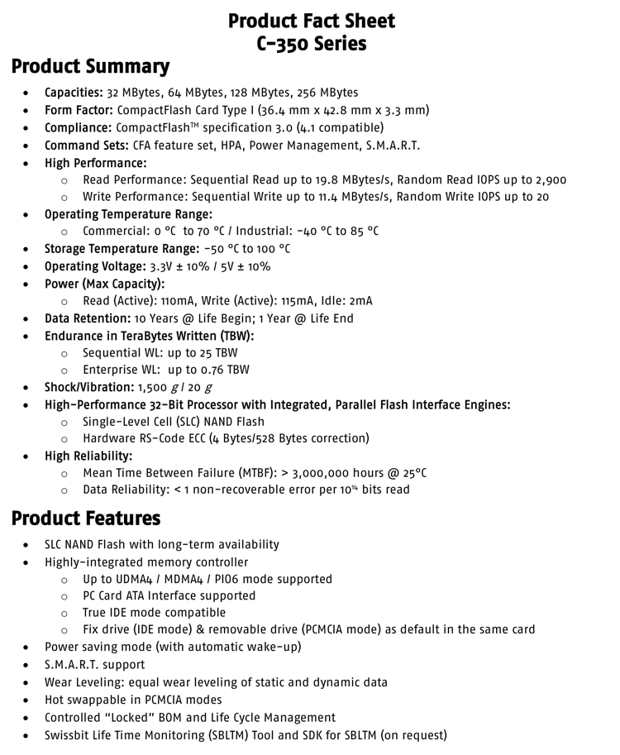

The C-350 CompactFlash cards are
available in capacities from 32 to 256MB and support the same temperature range and functions. Historically, the CompactFlash form factor was the preferred solution for demanding industrial applications requiring replacement and reliable protection when used in harsh environments. Although the industry has since migrated to more modern form factors such as SD and CFast for new developments, the firm remains committed to supplying proven memory cards formats with long-term availability.

Swissbit C 350 Compactflash Cards

Swissbit C 350 SpectablIndustrial applications: more than just extended temperature ranges
Robust and durable memory products are predominantly used in applications that have long life cycles. Here, long-term availability is a primary requirement.

Swissbit addresses industrial applications in two different ways,” explains Roger Griesemer, GM, memory solutions. “On the one hand, we support the demand for state-of-the-art technology with large capacities and high performance at low total cost. On the other hand, we know that there are many legacy systems that still need support and will remain in the field for another decade. Swissbit serves both markets with passion, commitment and the optimum products.
