Swissbit EM-30 Up to 256GB BGA Device With e.MMC-5.1 Standard Interface and 3D-NAND

Swissbit AG extends its range of miniaturized storage solutions with its EM-30 device with an e.MMC-5.1 standard interface.

The BGA package combines a controller with 3D-NAND and firmware that supports the most demanding applications. Available in capacities from 16 to 256GB, EM-30 offers cost savings over former 2D-NAND solutions. Possible applications range from embedded systems, POS/POI terminals, factory automation, routers, and switches to solutions for the IoT and medical systems.

The EM-30 product series complies with e.MMC-5.1 specs and is downward compatible. Thanks to standards, integration is easy.

With a temperature range of -40°C to +85°C, the product family is suited for embedded applications.

With sequential data rates of up to 300MB/s for read and 230MB/s for write as well as 39,000 IO/s and 41,000 IO/s for read and write random access, EM-30 delivers the performance of SATA SSDs, but with smaller size requirements and costs.

Data refresh and reliability
Similar to large SSDs, the EM-30 firmware supports automatic background data refresh of read-only areas that for instance occur with boot media. This feature coupled with strong error correction, ensures that data availability is always highly reliable, even if the data has not been accessed under prolonged periods of exposure to high temperatures.

A further special feature is the increased protection vs. data corruption in the event of sudden power loss, which not only occurs in regions with an unstable power supply, but also typically when handling medical devices or embedded systems.

Future proof solution
“This e.MMC series is positioned to address the growing demands of embedded systems and their new chipsets, which typically require ultra-small, vibration-proof form factors with ever-increasing data-storage capacities. Extended Lifetime Monitoring support combined with potential in-field firmware updates without data loss and typical Swissbit longevity makes the EM-30 series a future proof solution for our customers“, explains Roger Griesemer, GM, memory solutions.

Predictable service life

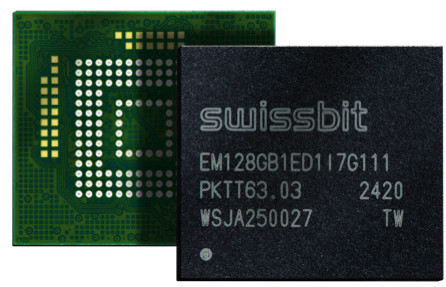

The BGA component comes in an 11.5x13mm, 153 ball housing with 0.5mm pitch or optional in a 100ball, 1mm pitch BGA. For soldered-down components, knowing the expected service life under real conditions is important. EM-30 devices offer the option to access detailed information about the consumption of the write cycles and internal resources via standard access to the e.MMC registers without the need for special access methods or drivers. This feature goes far beyond the e.MMC standard and allows a reliable prediction of the service life in the field.

Flexible configuration
EM-30 devices can be partitioned by the user into several TLC and pSLC (enhanced reliable) segments to optimally separate read-only areas from partitions that are frequently written to. If the maximum possible endurance of the NAND is required, the company offers an EM-36 variant pre-configured to 100% pSLC. These types are available in capacities between 5GB and 80GB.

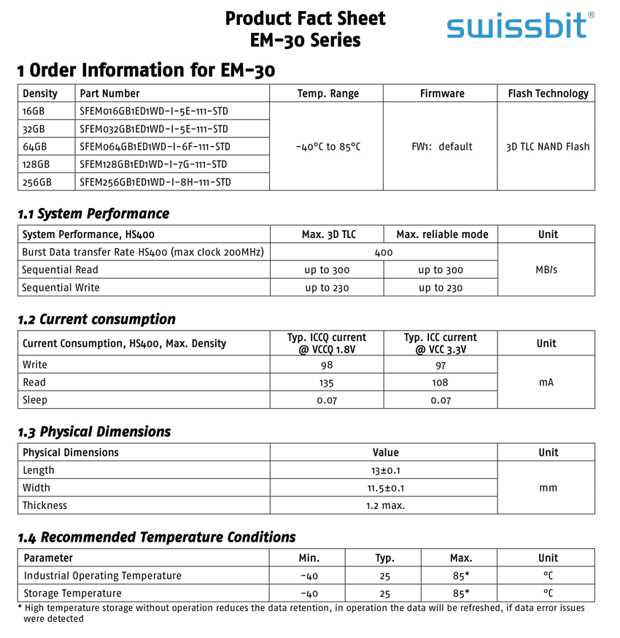

Click to enlarge
