Qnap QXP-W6-AX200 Dual Band Wi-Fi 6 PCIe Network Card for NAS and PC

Qnap Systems, Inc. released the QXP-W6-AX200 dual band Wi-Fi 6 PCIe network card for NAS and PC.

It supports the IEEE 802.11ax standard (backward compatible with 802.11a/b/g/n/ac), MIMO 2Tx2R, MU-MIMO TX/RX, and can be installed in the company’s NAS or Windows/Linux PC to provide Wi-Fi 6 connectivity. When installed in a Windows PC, it also provides Bluetooth 5.0 connectivity.

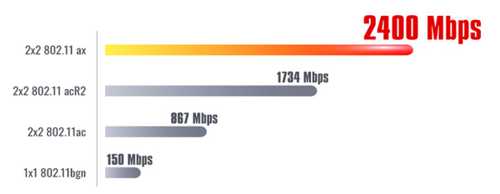

The QXP-W6-AX200 is a PCIe Gen 2×1 Wi-Fi 6 adapter with an Intel Corp.’s Wi-Fi 6 AX200 module, providing speeds of up to 2,400Mb/s faster than WiFi 5. The antenna design supports dual band 802.11ax 2.4GHz and 5GHz, and the multiple angle tilt and magnetic base provides the best signal strength direction and location.

“Qnap is devoted to providing affordable high-speed networking solutions for both Ethernet and Wi-Fi environments” said Jason Hsu, product manager, Qnap, adding “the QXP-W6-AX200 provides breakthrough Wi-Fi 6 connectivity to enable high-speed backup, file sharing, and other demanding tasks in modern IT environments“.

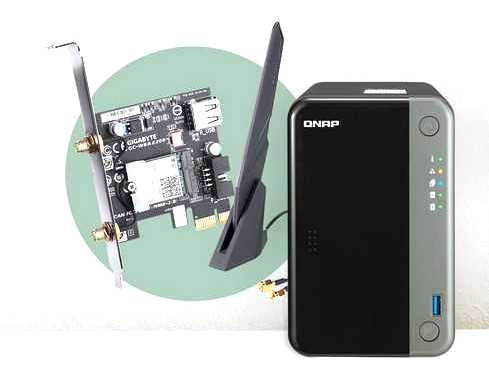

The QXP-W6-AX200 allows company’s NAS to break free from Ethernet cables, or it can be installed in a Windows or Linux PC for faster downloading speeds and low-latency connectivity. In addition, when installed in a Windows PC, it provides Bluetooth 5.0 connectivity, improving the speed and active range for communicating with compatible devices.

A driver is required when the QXP-W6-AX200 is used in a PC/Server. Use the following links to download for Windows and Linux. A driver is not required when it is used in company’s NAS.

Key specs:

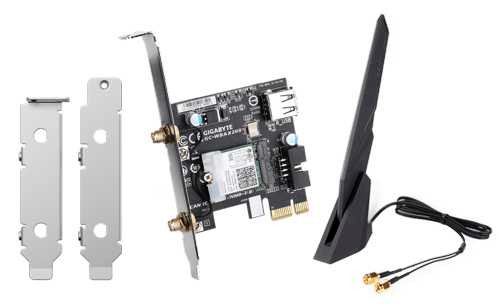

QXP-W6-AX200: PCIe 2.0 x1; IEEE 802.11a/b/g/n/ac/ax, 2.4GHz/5GHz Dual Band Dual Concurrent (DBDC), MU-MIMO, maximmum 2.4Gb/s connection speeds; detachable 2Tx2R antenna with magnetic stand base, a full-height bracket is pre-installed; 2xhalf-height low-profile brackets (a standard bracket and a flat bracket for NAS); Bluetooth USB cable; Windows 10 driver CD.
