Chenbro RB13804 1U 4-Bay Rackmount Server Barebone With Intel Server Board S2600WFTR

Chenbro Micom Co., Ltd. has launched the RB13804, a 1U rackmount server barebone designed for mission-critical, storage-focused applications for mixed deployments (HCI) in data center and HPC enterprise, that may either require maximum density of compute-to-storage capability or are limited by available rack space.

The RB13804 is pre-integrated with an Intel Corp.‘ Server Board S2600WFTR that supports up to two 2nd gen Xeon Scalable ‘Cascade Lake’ Processors, allowing cost and build flexibility in deployment.

Tri-mode storage with universal drive bays
The RB13804 is a barebones server solution that pre-integrates a 2-socket Intel Server board to ensure a flexible, scalable design with mission-critical reliability. Notably, it offers tri-mode storage with interchangeable backplane that enables universal drive bays that can switch between SAS, SATA and NVMe storage types, allowing a single server to upgrade according to the growing needs of the business.

Xeon Scalable server barebone with 4X hot-swap drive bays and 2X FHHL expansion

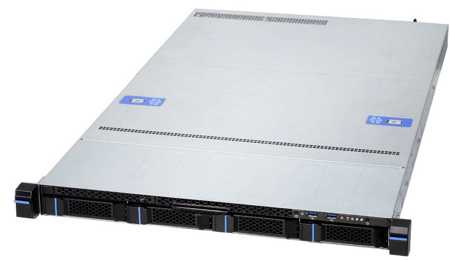

The 1U server barebone system is pre-tested to ensure compatibility and reliability with the pre-installed S2600WFTR server board. The RB13804 chassis is available with 4×3.5-inch tri-mode storage bays, plus optional 2-bay 2.5-inch internal drive bays and 1xslim ODD bay for configuration flexibility.

RB 13804 rear

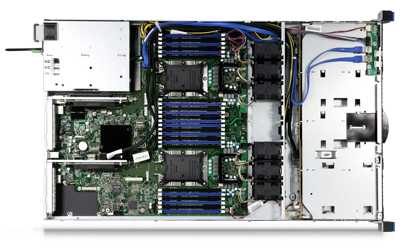

Internal AIB expansion is provided by 2X FHHL, in addition to the integrated I/O module and RAID module. The barebones design includes a 800W CRPS 80Plus Platinum grade PSU, optimized cable routing, plus 6X easy-swap, 22.5Krpm cooling fans with airflow optimized ducts to ensure reliable cooling for two CPUs up to 165W each, the PCI-e expansion cards and all storage hardware. Up to 24X ECC UDIMM 2933MT/s slots are supported enabling a maximum 7.5TB of storage and networking is provided by 2X10GbE via RJ45, plus one remote management port. The scalable design also includes expansion space for another CRPS PSU.

Logo branding and customization services for rackmount server chassis
As with other company’s chassis, the RB13804 barebone is available for branding customization. The server case can be modified to meet a customer’s needs, including personalized silkscreens, logo plates, and tailor-made bezels to create a data center rackmount in the customer’s brand image. Thanks to an organization, the firm’s server customization services can support requests from system integrators and MSP’s for their exclusive clients requiring select quantities.

Quality server manufacturing for fast and safe server assembly by MSP
Building on its 37 years of Taiwan manufacturing excellence, the company assures a quality product manufactured with a sturdy frame and no sharp edges to ensure the well-being of assembly teams in system integrators, rack and stack service providers. The RB13804 barebone server employs a tool-less design for upgrades and maintenance, including storage, HDD trays, system fans, and PCIe riser brackets.

The RB13804 rackmount server barebone is available.
