Chenbro Micom RB133G13-U10 1U/10-Bay NVMe U.2 Dual Xeon Scalable NVMe SSD Server Barebone System

Designed for AFA, tiered and virtualized storage applications in enterprise

Chenbro Micom Co., Ltd. launches the RB133G13-U10, a 1U dual Xeon Scalable NVMe SSD server barebone system designed for AFA, tiered and virtualized storage applications in enterprise.

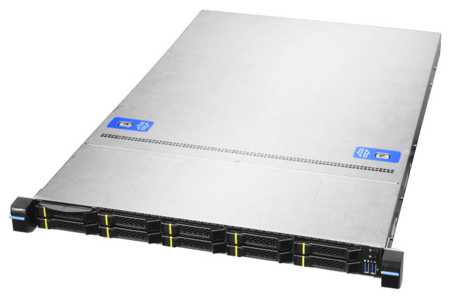

Chenbro Rb133g13 U10

Offering Intel VROC, Apache Pass, and Redfish compliance, it is for performance applications such as SDS, virtualization, HPC, cloud computing, and SaaS, with end-to-end security and management. The scale-up storage design helps enterprise remain agile to meet future business needs.

For NVMe-Enabled enterprise storage servers
It is a custom 1U chassis pre-fitted with dual Xeon motherboard. Ready to install 2 Xeon Scalable processors with up to 28-cores, 165W TDP, with a maximum of 2TB of DDR4 memory, 2x10GbE connectivity, 1X PCI-E Gen 3 x16 HH/HL expansion slot and with support for up to 10X hot-swappable NVMe U.2 drives, it is a barebone storage solution that scales as a company’s needs grow.

RB133G13-U10 rear

Chenbro Rb133g13 U10 Rear

Ready for scalable storage servers setup with virtual RAID on CPU standard
Intel VROC is designed for performance NVMe to unleash their performance potential in RAID arrays. Thus reducing complexity, cost, and power consumption of traditional hardware RAID HBA cards placed between the drives and the CPU.

The RB133G13-U10 delivers performance with endurance thanks to the ability to support 10 NVMe SSDs directly attached to PCIe bus on the dual-socket server board.

Building storage servers that scale-up with business
The RB133G13-U10 all-flash barebone is tailor-made for enterprise use and ready for scale-up with SDS and virtualized computing as business grows. Thanks to being built upon the Xeon Scalable system architecture, the TCO for enterprises looking to roll-out cutting-edge storage arrays is low.

Click to enlarge

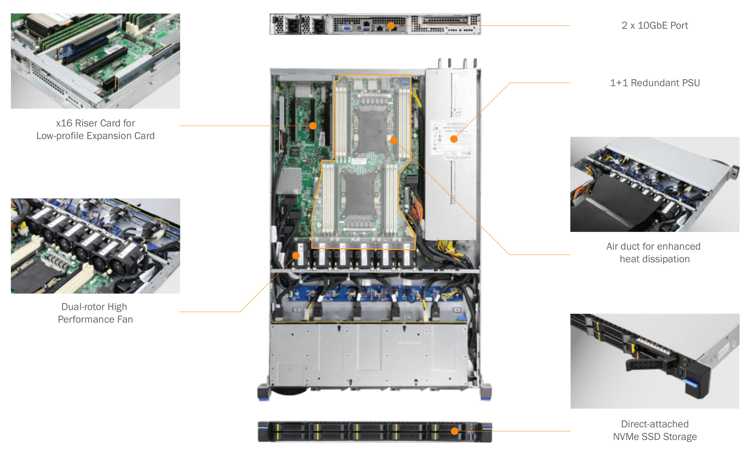

M Rb133g13 U10 Scheme

Logo branding and customization services for rackmount server chassis
As with other company’s chassis, the RB133G13-U10 barebone is available for branding customization. The server case can be modified to meet a customer’s needs, including personalized silkscreens, logo plates, and tailor-made bezels to create a data center rackmount in the customer’s brand image. The firm’s server customization services can support requests from system integrators and MSP’s for their clients requiring select quantities.

Quality server manufacturing for fast and safe server assembly by MSP
Building on its 37 years of Taiwan manufacturing excellence, the firm assures a product manufactured with a sturdy frame and no sharp edges to ensure the well-being of assembly teams in system integrators, rack and stack service providers. The RB133G13-U10 barebone server employs a tool-less design for upgrades and maintenance, including storage, HDD trays, system fans, and PCIe riser brackets.

Click to enlarge

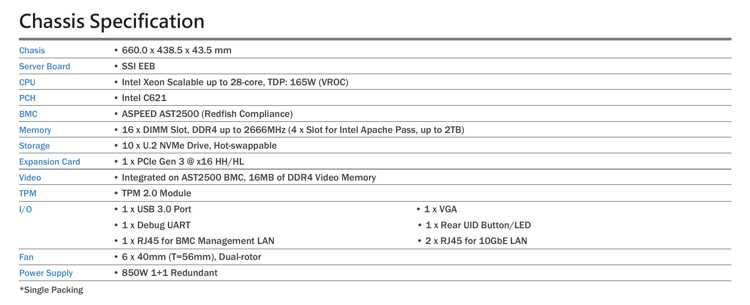

M Rb133g13 U10 Spectabl

Video: RB133G13-U10 video introduction
