From HighPoint, SSD7202 Low-Profile Bootable NVMe RAID Controller for Windows and Linux

HighPoint Technologies, Inc. launches the third gen SSD7202 NVMe RAID controller, a compact, low-profile, bootable NVMe RAID solution for Windows and Linux platforms.

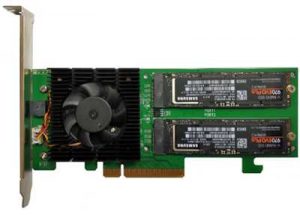

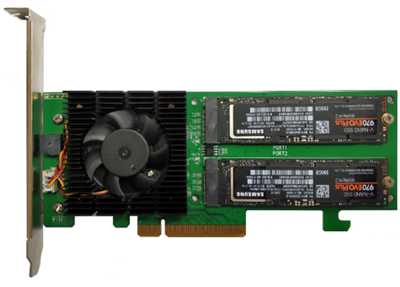

The SSD7202 is for PC’s that require NVMe boot performance or a compact storage solution. The low-profile SSD7202 smaller than an average video card, can host up to 8TB of storage and can be installed into any PCIe 3.0/4.0 x8 or x16 slot.

3rd gen NVMe architecture
This third-gen NVMe architecture utilizes firm’s Smart-Switching PCIe 3.0 x8 host interface to ensure compatibility with a range of hardware platforms without compromising performance; the dedicated x8 bandwidth enables the SSD7202 to deliver up to 7,000MB/s using two M.2 SSDs.

The SSD7202 is a NVMe RAID controller to feature our  2-stage cooling solution, which removed the need for a bulky, external case. The card-length heat sink features an integrated low-noise fan to ensure the NVME SSD’s and critical chipset components remain cool even under sustained load.

Linux support
A dedicated team of engineers proactively monitors and updates support for all major Linux distributions to ensure the SSD7202 is compatible with the latest releases of CentOS, Ubuntu and Debian. Company’s Auto-Compile feature is embedded into out open source software release. It was designed to streamline Linux installation and upgrade procedures, and eliminates the need for user intervention.

Booting capability

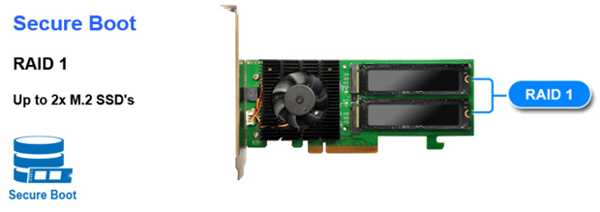

The SSD7202 supports 3 distinct boot modes: Rapid-Boot, Secure-Boot and Multi-Boot. Rapid-Boot employs RAID striping technology to minimize boot-time and maximize transfer performance. Secure-Boot utilizes mirroring technology to manage a hidden, automated backup of the boot drive. Multi-boot allows customers to configure NVMe SSD’s to work as separate drives, each of which is capable of hosting a different OS.

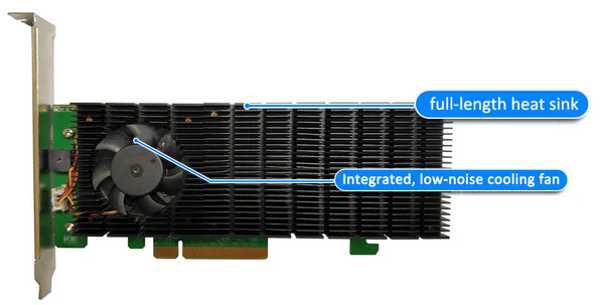

Two-stage cooling solution
The SSD7202 isfor applications that require distraction-free working environments. The PCIe 3.0 x8 host interface enables the controller to operate at lower temperatures than its x16 counterparts; the design sports a single all-aluminum heats sink with an integrated low-noise fan, which dissipates the heat generated by a pair of M.2 drives, even under sustained load, while eliminating distraction and the risks of compromising production requirements.

RAID Management – Your Choice – Graphical or Text-only interfaces
When it comes to maintaining critical storage configurations, each customer has specific needs and preferences. Both management interfaces share universal layouts across all major OSs, and can be administered locally or remotely via an Internet connection. The Web RAID Management Interface (WebGUI) is a web-based management tool and is for customers who are new to RAID technology. The CLI (Command Line Interface) is a text-only management interface designed for advanced users and professional administrators. User guides are available for both interfaces are available from the SSD7202’s software updates webpage.

The SSD7202 will become available in early June 2020, from North American retail and distribution channels. Pricing: SSD7202 MSRP $299

Click to enlarge
