UTran: UT34U2 NVMe U.2 Drives 4-Bay RAID Subsystem

Hardware-based RAID-0, -1, -5, -6, and -10 solution, and device interface being PCIe Gen3 x4 per U.2 slot

This is a Press Release edited by StorageNewsletter.com on April 7, 2020 at 2:27 pm

UTran Technology, Inc. announced the UT34U2 NVMe RAID subsystem hardware-based RAID acceleration, that supports 4-bay U.2 drives.

Utran Ut34u2 1

The NVMe RAID subsystem UT34U2 adopts Broadcom, Inc. Tri-mode (SAS/SATA/NVMe) ROC SAS3516 with RAID functions and various OSs support.

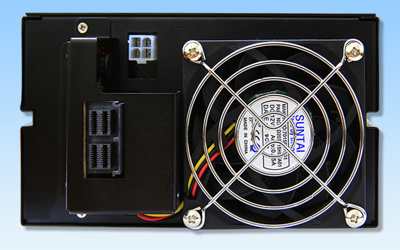

UT34U2 NVMe RAID subsystem rear

Utran Ut34u2 RearThere are 2 SFF8643 connectors in rear of RAID subsystem, utilizing PCle switch host card or passive card connecting host with SFF8643 cables (PCle Gen3 x8). It allows to hot-replace faulty drives without system shutdown. UT34U2 is subsystem providing high bandwidth and IO/s in data protection, and is for high-end server utilizing internal storage.

Utran Ut34u2 Scheme

Key features:

  • PCIe 3.1 host interface, PCIe Gen3 x8 lanes at maximum transfer rate up to 64Gb/s

  • Device interface is PCIe Gen3 x4 per U.2 slot.

  • Hardware-based RAID solution that supports RAID levels 0, 1, 5, 6, and 10.

  • Off-load backup at power fail using ONFI (Supercap required), with bad block management.

  • Implemented 4GB 72-bit DDR4-2133 SDRAM providing hardware RAID assist engine for parity calculations.

  • Front LEDs for U.2 drives and RAID subsystem status indications.

  • Buzzer beeping for any of RAID card failure conditions.

Click to enlarge

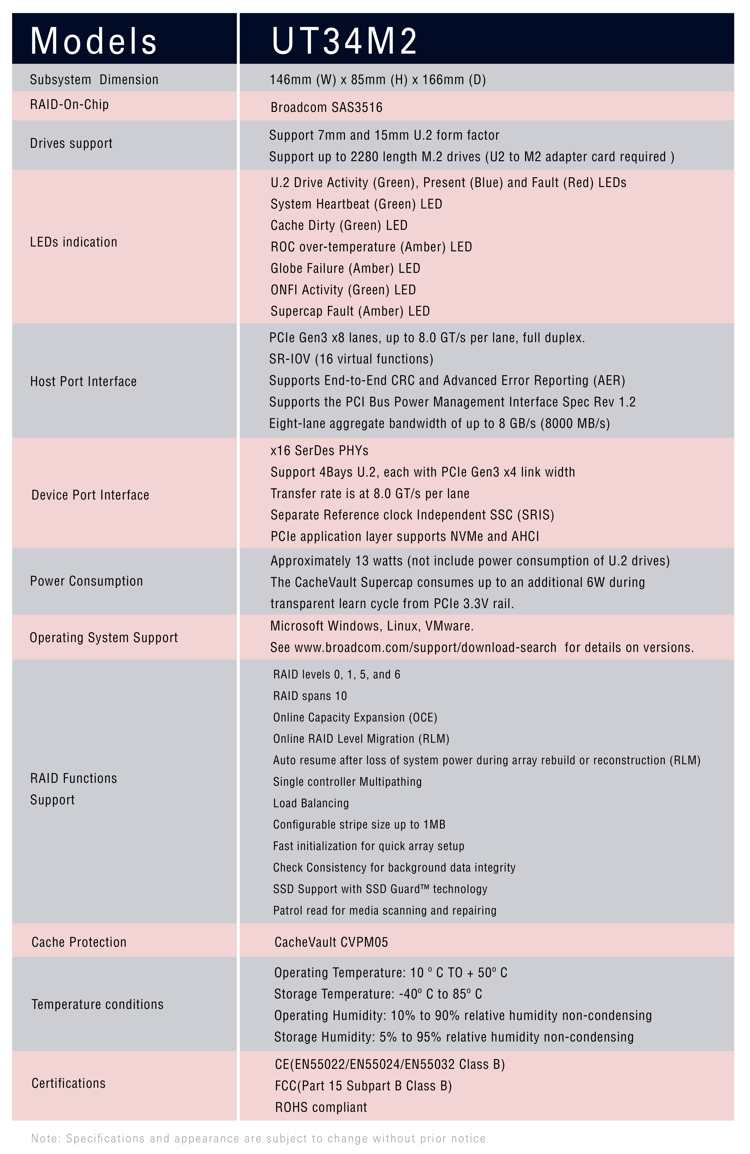

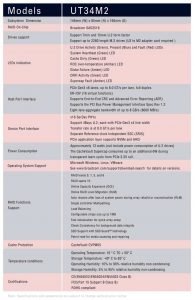

Utran Ut34u2 Spectabl
