Raidon Technology Introduces SR4‑B32A 4‑Bay Hardware RAID Desktop Storage System for USB‑A Systems

Raidon Technology, Inc. announces the SR4-B32A a 4-bay hardware RAID enclosure designed for desktops and workstations that rely on standard USB‑A ports.

It provides a practical upgrade path for legacy systems, including a USB‑C to USB‑A cable for simple plug‑and‑play deployment and support for up to 10Gb/s transfer speeds on compatible USB 3.2 Gen 2 USB‑A hosts.

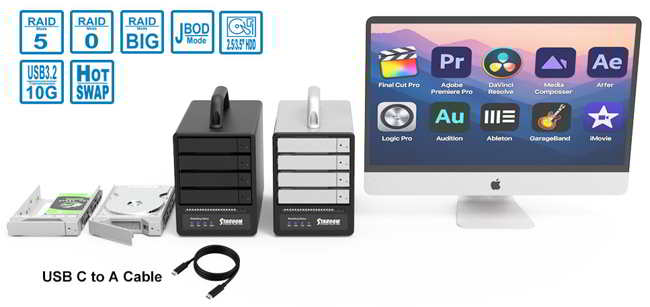

A dedicated hardware RAID controller supports RAID-5 for single‑drive fault tolerance, as well as RAID-0, JBOD, and BIG for performance‑oriented or capacity‑focused workflows. With a 150W internal power supply, active cooling, and hot‑swappable lockable trays, the SR4‑B32A is engineered for reliable operation in backup, media, research, and other data‑intensive environments.

Features:

Broad USB‑A Compatibility

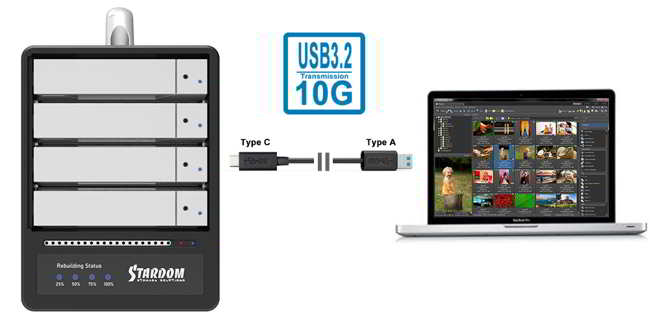

Designed for desktops and workstations with standard USB‑A ports. Ships with a USB‑C to USB‑A cable and supports up to 10Gb/s when connected to compatible USB 3.2 Gen 2 USB‑A hosts.

Built-in Hardware RAID

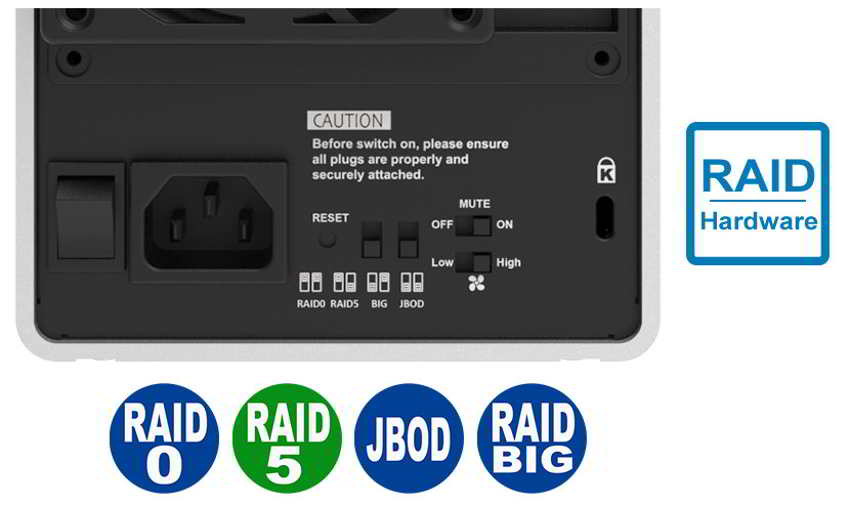

Supports RAID-0, RAID-5, JBOD, and BIG. In RAID-5 mode, the system maintains data availability during a single‑drive failure and begins rebuilding the array once a compatible replacement drive is installed.

Professional, Service‑Ready Design
Supports 4×3.5″ or 2.5″ SATA 3 HDDs or SSDs. Hot‑swappable, lockable trays simplify maintenance and improve physical security. A 150W internal power supply ensures stable, continuous operation.

Status Monitoring and Active Cooling

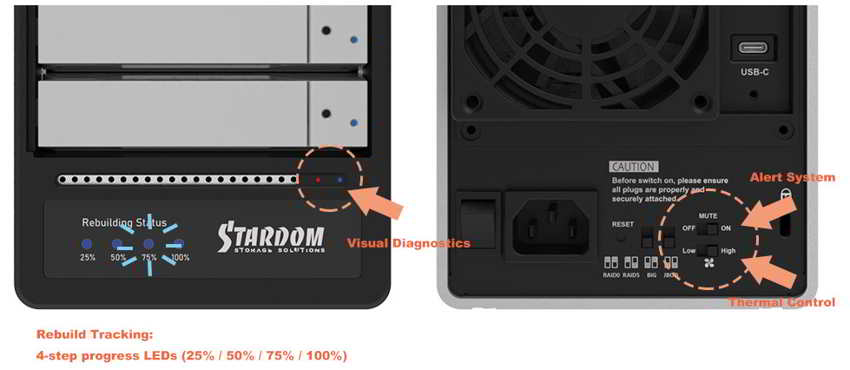

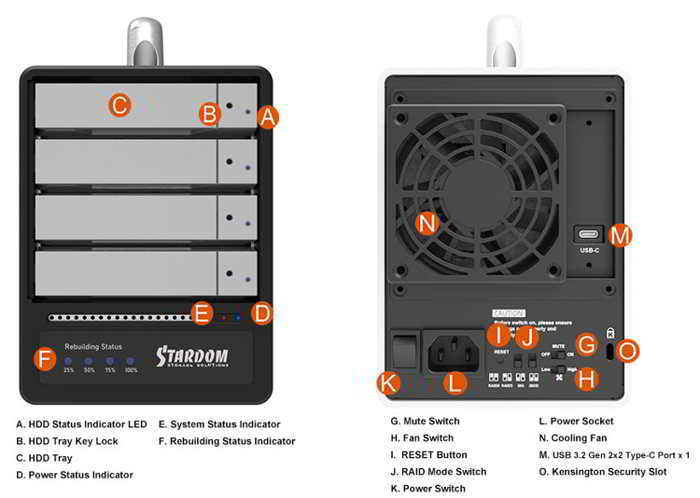

Front-panel LEDs display power, drive activity, failure alerts, and RAID rebuild progress (25/50/75/100%). Includes a buzzer with mute switch, an adjustable 80mm rear fan, and hardware RAID controls with optional Windows GUI monitoring.

Cross-Platform and Mobile Workflow Support

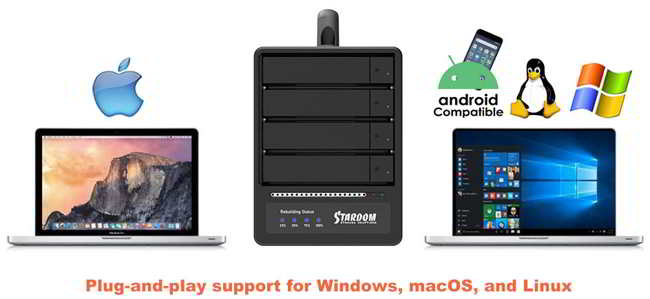

Plug‑and‑play compatible with Windows, macOS, and Linux. Also supports Easy Data Vault backup for USB‑C iPhone and iPad models when using a USB‑C to USB‑C cable.

Applications:

• Creative Studio Backup and Archive
  Protect large photo and video projects with RAID-5 reliability..
• Departmental Local File Storage
  Provide dependable shared storage without the complexity of network systems.
• Research and Lab Data Protection
  Safeguard long‑term datasets with high‑capacity, fault‑tolerant storage.
• Legacy Workstation Expansion
  Add professional‑grade RAID storage to older USB‑A desktops and workstations.
• High‑Capacity Backup Target
  Serve as a scheduled backup destination for systems that have outgrown single‑drive solutions.
• Surveillance Footage Archive
  Organize and retain large volumes of video data with dependable long‑term storage.

Frequently Asked Questions (FAQ):

Q1: Which RAID modes are supported?
A: The SR4-B32A supports RAID-0, RAID-5, JBOD, and BIG.

Q2: What happens if a drive fails in RAID-5 mode?
A: The array enters a degraded state, but data remains accessible. Rebuilding begins once a compatible replacement drive is installed.

Q3: Are the drive trays hot‑swappable?
A: Yes. The lockable drive trays are hot-swappable, allowing drive replacement without powering down the enclosure.

Q4: Does it work with USB-C or Thunderbolt 3/4 hosts?
A: Yes. The enclosure operates as a standard USB storage device when connected to compatible USB-C or Thunderbolt 3/4 hosts using a separate USB-C to USB-C cable.

Q5: Does it support mobile device backup?

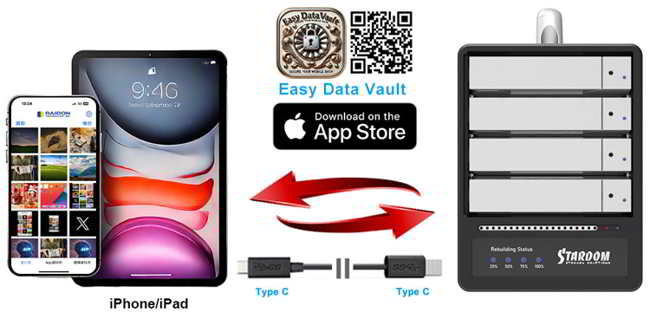

A: Yes. Easy Data Vault backup and restore is supported on compatible USB‑C iPhone and iPad models when connected with a separate USB‑C to USB‑C cable.
