Swissbit Expands PCIe NVMe SSDs Portfolio for Networking, Edge and IoT Applications

N2000 and N3000 PCIe NVMe SSD families combine low power consumption with optimized temperature and performance management.

Swissbit AG continues to strategically expand its PCIe offerings.

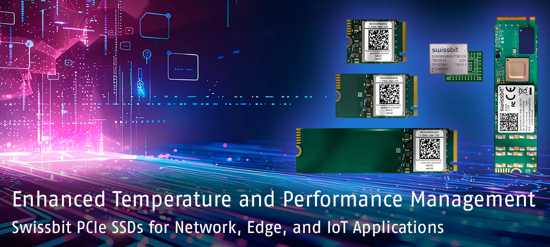

Swissbit Expands Pcie Portfolio Intro

The N2000 (Gen3 PCIe) and N3000 (Gen4 PCIe) product families primarily address applications that require PCIe performance as well as a balanced ratio of low power consumption and reduced heat gen.

The company thus meets the requirements of edge servers and other systems with limited cooling capabilities due to their compact design or whose power consumption is restricted. It combines these properties with its usual reliability in the extended temperature range of -40°C to +85°C. Security functions such as TCG Opal 2.0 as well as a variety of M.2 2230, 2242 or 2280 form factors and storage capacities from 20 to 1,920GB top off the list of features.

N2000: Balanced ratio of performance and power consumption

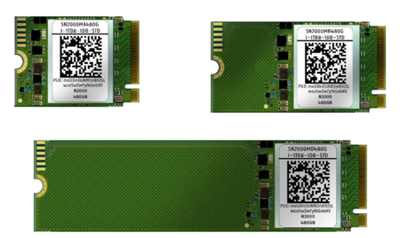

Swissbit N2000 Series

The N2000 family comprises the N2000 and N2600 series and is optimized for applications that require reliability and energy efficiency. The DRAM-less design minimizes heat gen and achieves a good balance between performance and energy consumption. The SSDs are PCIe Gen 3×4 compliant and are available in M.2 2230/2242/2280 form factors. The N2000 series offers storage capacities from 60 to 480GB with TLC technology. The spectrum of the N2600 with pSLC ranges from 20 to 160GB and offers an increased service life. The features are complemented by standard integrated security functions such as AES256 encryption, Crypto Erase and TCG Opal 2.0.

Equipped in this way, the N2000 family is for green IoT applications such as charging stations, industrial applications, embedded systems, data logging, and boot OS scenarios.

N3000: Optimized for constant performance and high endurance

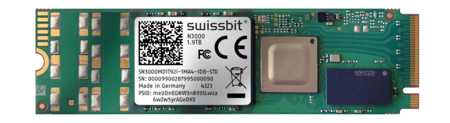

Swissbit N3000 Ssd Pcie 1

The N3000 Gen4 PCIe SSD family is based on a DRAM-based controller architecture and offers reliable and secure data processing with maximum system integrity. Thanks to optimized temperature and power management, it guarantee high, consistent performance even under demanding thermal environmental and system conditions. It is available in M.2 2242/2280 form factors with TLC technology and capacities ranging from 240 to 1,920GB. The same applies to the N3002 PLP series, which is available in the M.2 2280 form factor. The N3602 PLP series with pSLC technology, which is available in the M.2 2280 form factor with storage capacities ranging from 80 to 320GB, is suitable for particularly high endurance requirements. The N3002 and N3602 series also offer the Swissbit powersafe PLP (power loss protection) feature.

The N3000 family also features security functions such as AES256, Crypto Erase and TCG Opal 2.0 by default. In addition to industrial applications, it is particularly suitable for networking systems such as routers or switches, as well as edge servers.

High performance in miniature format: BGA 1620 PCIe SSD E2000

E2000 Pcie Swissbit 524854fe

Especially for embedded systems, the company offers a solderable alternative to the N2000 in the form of the E2000 PCIe BGA family. The E2000 and E2600 series offer full PCIe SSD performance in a multi-chip design measuring 3.2 square centimeters. The compact BGAs also support the ambient temperature range from -40°C to +85 °C and are available with storage capacities ranging from 60 to 480GB (E2000, TLC) and 20 to 160GB (E2600, pSLC).
