Harnessing HPE Alletra Storage Server 4000 and Veeam for Data Protection

Secure, scalable, and cost-effective all-HDD data protection solution

Hpe Grishma PhBy Grishma H N, solutions engineer, Hewlett Packard Enterprise Development LP (HPE)



The joint solution engineered by HPE and Veeam Software, Inc. is a secure, scalable, and cost-effective all-HDD data protection solution. It exceeds expectations in backup and restore performance. Learn how.

Setting new benchmarks
In the high-stakes world of Formula 1, every millisecond counts. A well-tuned, powerful car combined with a skilled driver can make the difference between standing on the podium and being just another contender. Similarly, the performance and reliability of your storage infrastructure are crucial for protecting your data. As data volumes explode, the need for a fast, manageable backup solution becomes more critical.

Recall how we, at HPE, in partnership with Veeam, set high backup/restore benchmarks by integrating HPE Apollo 4510 server with Veeam Availability Suite. With the new generation of HPE Alletra 4000 servers and ProLiant DL380 Gen11 servers, we’ve pushed those limits even higher. Our latest tests with Veeam Data Platform 12 exceed the previous standards and also provide a jaw-dropping backup performance of 58TB/H with up to 1.6PB of native capacity in a single server with only SAS HDDs. This solution isn’t just about high performance. It offers a secure, scalable, and affordable data protection infrastructure for any workload.

Let me take you through a short exploration of the solution design and its performance to uncover its effectiveness without any superficial claims.

Solution overview

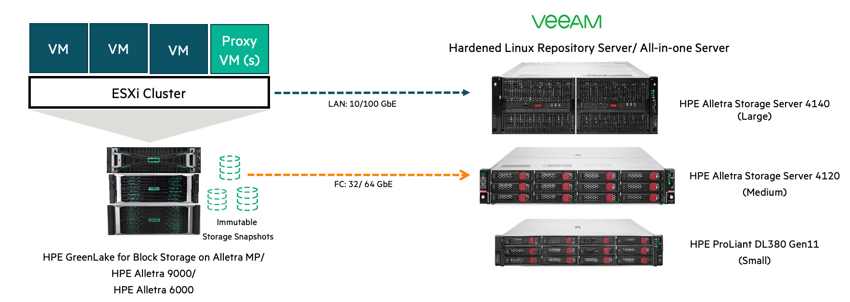

The data protection solution featuring Veeam Backup & Replication 12.1 leverages the high throughput and high capacity of Alletra Storage Server 4140, Alletra Storage Server 4120, and ProLiant DL380 Gen11 Server as backup targets. Each server is tuned and validated for different performance and capacity needs. They can be utilized either as a Hardened Linux repository server for heightened security against ransomware attacks or as an all-in-one server for simplified management. Equipped with high-density compute and storage within the same chassis, these servers adeptly support all components of the Veeam backup infrastructure. You can start with a single node and scale- up or scale-out by adding more nodes for a larger solution.

Hpe Grishma F1

Understanding the benchmark test environment
The Alletra Storage Server 4140, Alletra Storage Server 4120, and  ProLiant DL380 Gen11 servers were rigorously tested and optimized for performance. Here are the details of the test environment used for benchmarking the large model, Alletra Storage Server 4140.

Protected workload type
The test data source consisted of 60 VMs spread across 8 ESXi servers. Each VM had a dataset between 200GB and 300GB. To reflect a real production environment, the VMDK of the VMs were loaded with randomly generated binary data with an exact compression ratio of 2:1 so that after the backup job completes, backup file will be half the size of the data loaded into the VMDKs.

About 80% of the VMs were on volumes across the 3 primary storage arrays: GreenLake for Block Storage built on Alletra Storage MP, Alletra 9000, and Alletra 6000. These primary storage arrays are fully integrated with Backup & Replication, thus supporting the most advanced Veeam Snapshot Orchestration features. The rest of the VMs were on the internal NVMe disks of the ESXi servers. Each ESXi server also hosted 2 Windows Veeam Proxy VMs for backing up the source VMs via Hot-Add backup mode.

Backup target

Hpe Grishma F2

The Alletra Storage Server 4140 is a 4U server available in 2 configurations: 68 and 92 disks. The server used for benchmarking was configured with these components.

  • CPU: 2xIntel Xeon-Gold 2.0 GHz 24 core processors
  • Memory: 16x16GB DIMMs
  • HDD for Backup Storage: 68x20TB disks
  • SSD for OS: 2×480 M.2 NVMe drives
  • Hardware RAID controllers: 2xHPE SR932i-p storage controllers with 32 SAS lanes and 8GB wide persistent cache
  • FC: 2x32Gb HBA card for FC connectivity with HPE Primary Storage arrays. This is required for all-in-one configurations with hardware snapshot integrated backups.
  • LAN: 2x100GbE ports that were teamed in active/active load balancing mode for HA.

As the server has many disks, using 2 storage controllers was found to be necessary. The 68 disks were grouped in 2 RAID-60 volumes, each volume formatted with XFS File System (with block cloning). Later, the 2 File Systems were used as performance extents of an immutable Veeam Scale-Out Backup Repository with a total usable capacity of 1.08PB.

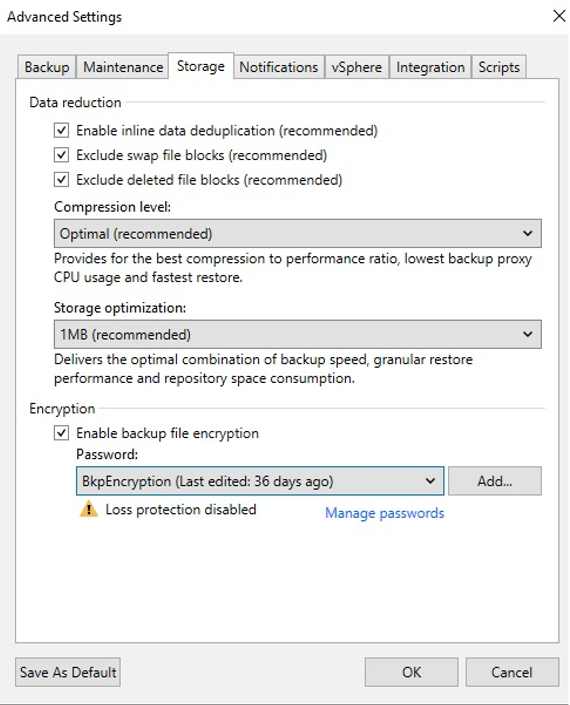

A backup job was created using this Hardened Scale-Out Backup Repository with Storage settings as shown in the below screenshot.

Hpe Grishma F3

Performance highlights

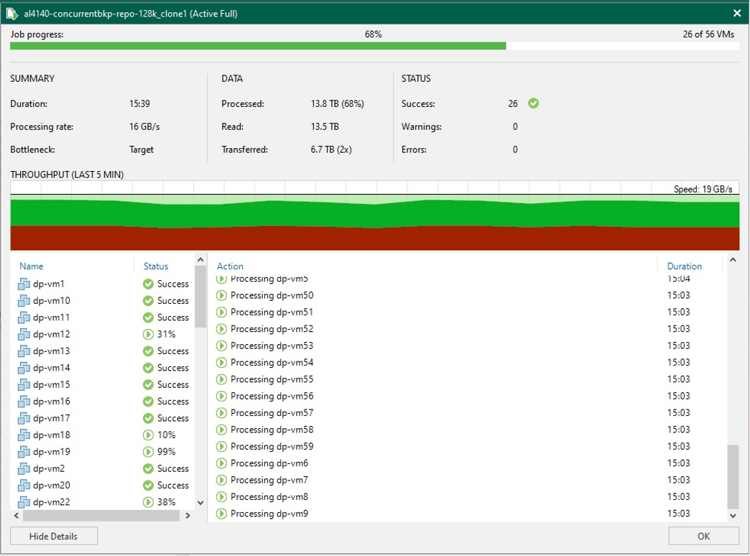

The screenshot below shows the maximum multi-stream backup throughput when the backup job was in progress.

Hpe Grishma F4

The solution with Alletra Storage Server 4140 produces a remarkably steady backup throughput of 16GB/s average and a peak throughput of 19GB/s. Veeam Data Platform is NUMA aware which maximizes the system’s parallel processing capabilities with low latency. Additionally, Veeam can directly write the backup data to the disk without utilizing the OS buffer cache and hence the throughput that you see is not influenced by the RAM buffer.

In the above screenshot, the job is 68% complete, and 26 out of 56 VMs with approximately 13TB of data were backed up in a span of 15mn. The average throughput dropped as the job progressed and few VMs were left to be backed up. In a real production environment where there are 100s of VMs to be backed up in batches, the backup processes for each kick in one after the other, and this high throughput of 16GB/s can be sustained till the end of the job.

The system was monitored continuously during the job run to ensure that CPU and memory utilization by the Veeam backup processes was not overloading the system. Thanks to the perfectly chosen components/parameters for tuning the systems and performance optimization measures in the Veeam Data Platform, the CPU utilization remained well below 20%, and the system had sufficient free memory while maintaining a tremendous write throughput.

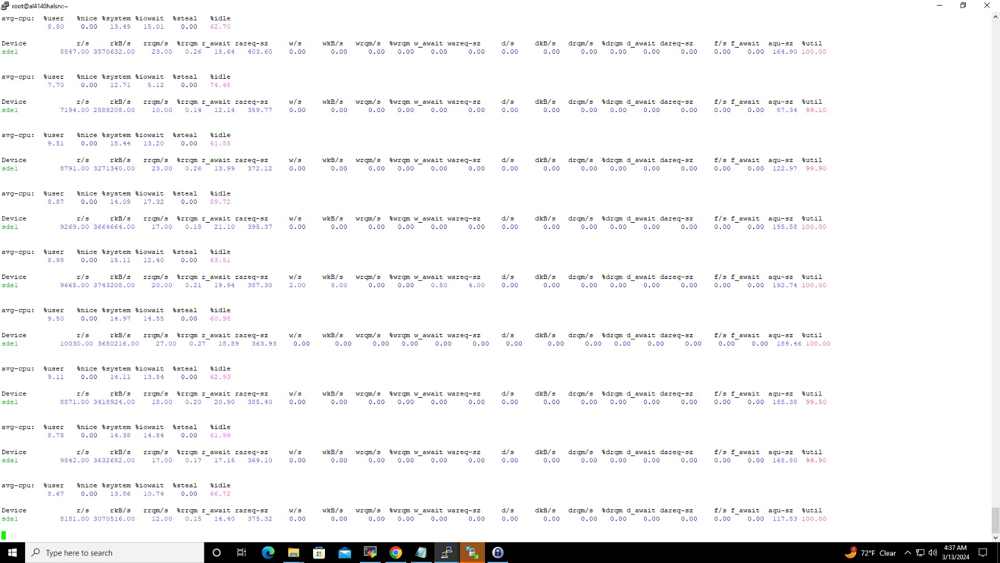

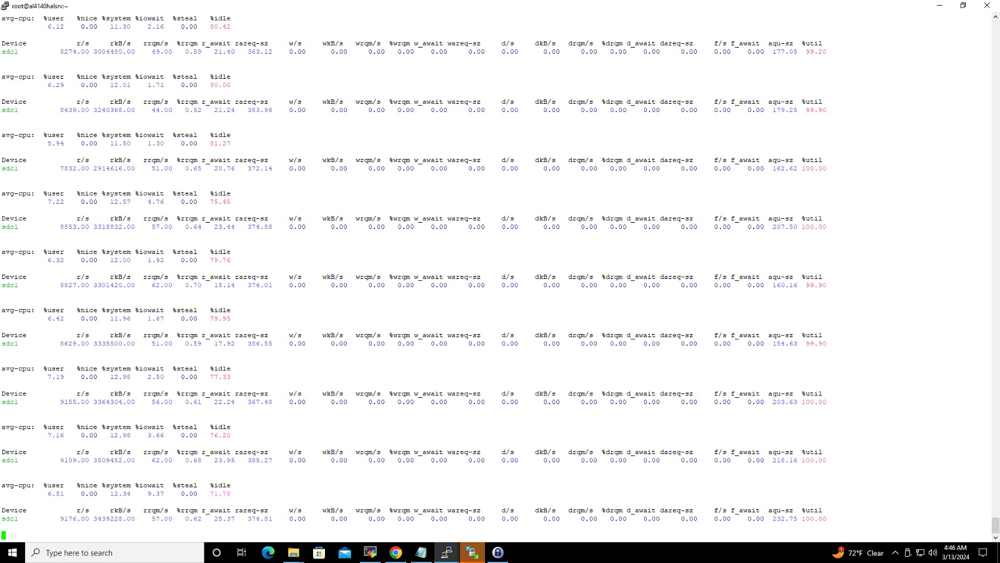

The server is significantly fast on restores, too. We found that the primary obstacle to performance was never the Alletra Storage Server 4140. The bottleneck was in fact the mock-production environment or the Veeam proxy VMs/servers used for testing.  So, we had to bloat the source environment and restore 60 VMs to 8 ESXi servers concurrently using 16 hot add proxy VMs spread across the ESXi servers. The backups of 60 VMs were evenly spread across the 2 RAID-60 volumes on Alletra Storage Server 4140. Screenshots below show the iostat output captured during the restore process for both the repository volumes that were used as performance extents in the Veeam Hardened Scale-Out Backup repository.

Click to enlarge

Hpe Grishma F5

Hpe Grishma F5 Plus

The system was able to deliver a high read throughput of approximately 3.25GB/s on average per RAID-60 repository volume during concurrent restore. The read latency (‘r_await’) was less than 100ms (30ms in this case). Anything above 100ms was considered to be too much. As the VM backup data is 2:1 compressible, this read throughput translates to a maximum restore throughput of approximately, 6.5GB/s per XFS file system of the Scale-Out Backup Repository. So, the 2 XFS file systems consuming the entire capacity of the Alletra Storage Server 4140 deliver a restore throughput of 13GB/s.

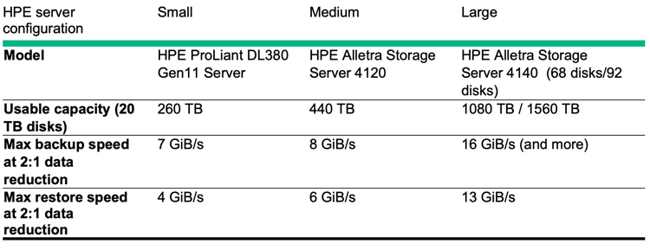

A similar testing methodology was used for benchmarking the Alletra Storage Server 4120 and ProLiant DL380 Gen11 Server. Each server delivered impressive backup performance with minimal tuning.

Hpe Grishma F6

Performance that can be attained varies by environment. However, the benchmark tests demonstrate that it is very unlikely the Alletra Storage Server 4140/4120 or ProLiant DL380 Gen11 Server will be the bottleneck.

Take your data protection to the next level of ultimate performance
The lab tests clearly demonstrate that the data protection solution with Veeam Data Platform and Alletra Storage Servers and ProLiant DL380 Gen11 Servers is ultra-fast. With other solutions, there’s a trade-off when it comes to security, speed, and cost. With this joint solution by the 2 partners, the demands of today’s data-driven environments are met. The solution provides essential security, easy manageability, and quick recoverability, particularly crucial in the face of increasing ransomware threats.

The solution offers remarkable flexibility and scalability, efficiently supporting both small businesses and large enterprises without compromising performance. For those interested in the technical details and our testing methods, consult our detailed technical paper.
