Klas TRX D16 Integrated Cloud-Scale Performance Developer Server, and Vehicle Data Logger Platform

Platform delivers 200Gb/s of sustained logging speeds and 480TB of SSDs to capture data from high-speed Ethernet-based cameras, with support for denser radar and lidar point cloud captures.

Klas unveils the TRX D16, its advanced vehicle data logging solution.

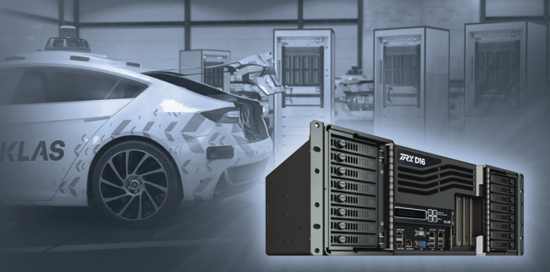

Klas Trx D16 Server2
This cutting-edge device combines HPC and storage into a single platform, changing ADAS/AD development and data logging for both lab and in-vehicle use.

The TRX D16 introduces transformational advancements to in-vehicle computing and logging and unleashes technology confined to the cloud or extremely large loggers up to this point. Now, high-end computing and logging can be fitted to any vehicle platform, allowing engineers to continue pushing the limits of ADAS/AD.

With TRX D16, automotive engineers gain a high-performance and customizable platform to accommodate the evolving vehicle sensor stack and support compute-intensive software development of AI/ML training, inference, and simulation. Furthermore, the platform delivers 200Gb/s of sustained logging speeds and 480TB of data storage to capture data from high-speed Ethernet-based cameras, with support for denser radar and lidar point cloud captures.

Designed rugged, the TRX D16 is equally at home in the lab and the vehicle. Engineers can transfer the entire development environment workbench to the vehicle for continued development and integration of new functionality with real-world drive test scenarios.

As a single platform, the multi-purpose TRX D16 minimizes the number of disparate systems in the vehicle and reduces the effort of moving from the lab to the vehicle,” said Frank Murray, CTO.By reducing the time spent preparing the vehicle, engineers can focus on productive tasks of real-world validation, which includes high-performance computing for AI testing. At a program level, the result is the improved time to market for new ADAS/AD functionality.”

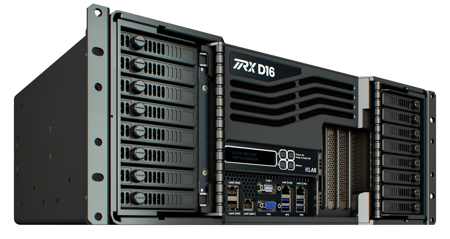

TRX D16 front

Klas Trx D16 Server1TRX D16 key features
The TRX D16 is designed rugged to the highest specifications of MIL-STD-461 and 810G/H to withstand the extremes of temperature, vibration and shock.

  • HPC: AMD EPYC 7713P (64 core) processor and up to 768GB of RAM, designed for embedded and harsh environments in vehicles.
  • Open GPU options: Numerous GPU PCIe card options are supported, allowing for more flexible and cost-effective AI/ML development environments.
  • Hot-swappable storage: 480TB storage (16xSSDs) split over 2 removable cassettes allows test vehicles to return to the road in minutes with minimal IT effort.
  • High disk write speeds: SAS4 SED drives, plus integrated RAID for secure data capture from an increased number of high-bandwidth sensors.
  • High speed connectivity: 2x100GbE interfaces to transfer valuable data to engineering HIL/SIL workbenches.
  • Flexible expansion: 2xPCIe (Gen 4) interfaces for custom I/O – automotive Ethernet, FPGA based SmartNICs, GMSL/FPD-Link/GVIF based cameras, or storage.

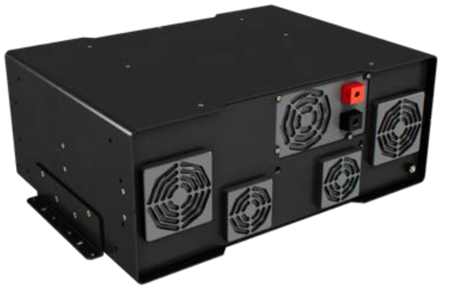

TRX D16 rear

Klas Trx D16 Server Rear

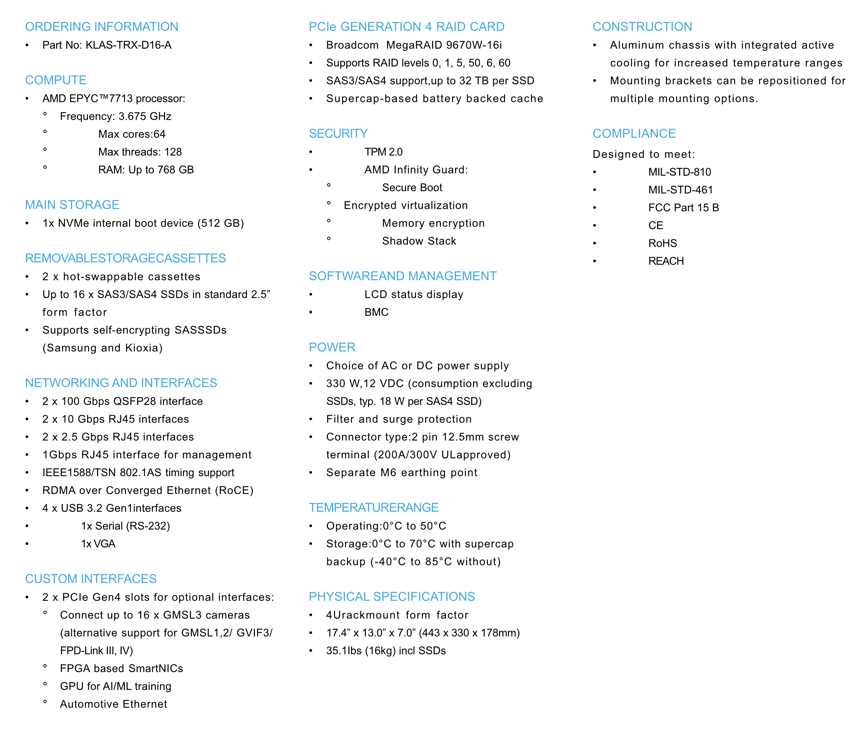

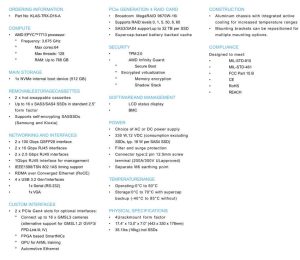

Klas Trx D16 Server Spectabl
