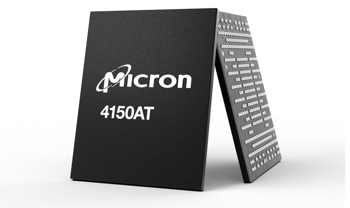

Embedded World: Micron Sampling Automotive-Grade 4150AT Quad-Port SSD to Accelerate Data-Rich Autonomous and AI-Enabled Vehicle Workloads

At Embedded World, Micron Technology, Inc. announced it is sampling the automotive-grade 4150AT SSD, a world’s 1st quad-port SSD,⁽¹⁾ capable of interfacing with up to 4 systems on chips (SoCs) to centralize storage for software-defined intelligent vehicles.

The 4150AT SSD combines market-leading features such as single-root I/O virtualization (SR-IOV), a PCIe Generation 4 interface and ruggedized automotive design. With these features, the automotive-grade SSD provides the ecosystem with data center-level flexibility and power.

“As storage requirements race to keep up with rich in-vehicle experiences featuring AI and advanced algorithms for higher levels of autonomous safety, this era demands a new paradigm for automotive storage to match,” said Michael Basca, VP, embedded products and systems, Micron. “Building on our collaboration with the innovators redefining next-generation automotive architectures, Micron has reimagined storage from the ground up to deliver the world’s first quad-port SSD — the Micron 4150AT — which provides the industry flexibility and horsepower to roll out the transformative technologies on the horizon.”

The company’s 4150AT SSD brings enterprise-class speeds to consumer vehicles, with random RW speeds above 600,000 IOs and above 100,000 IOs, respectively, for a 4-kilobyte transfer.⁽²⁾ This high performance allows the drive to manage data streams from multiple SoCs at once, making it a solution for vehicles that must increasingly multitask to handle diverse systems, from advanced driver-assistance systems (ADAS) to in-vehicle infotainment (IVI) to AI-enabled cabin experiences.

Micron built its 4150AT SSD to provide customizable features inspired by the design of data center SSDs but tailored to the unique challenges of next-gen automotive architectures including:

• Multi-port capability: The first SSD across any end market with 4 ports, ⁽³⁾ the 4150AT SSD can connect up to 4 SoCs, bringing unmatched flexibility and creating a single source of truth. For example, an automotive OEM can connect 1 port to an ADAS system and another to an IVI system, allowing each to store private data while accessing a common set of critical map data and reducing cost/GB of storage. This boosts performance and dissolves bottlenecks as both can access shared data simultaneously and alleviates the need to keep redundant copies of data. The 4150AT’s quad ports also reduce the need for extra storage devices. Since existing solutions can typically connect to only one SoC on their own, they tend to get placed locally with each automotive system — leading to unused capacity; or alternatively, require OEMs to utilize a costly automotive-grade PCIe switch to connect a drive to multiple SoCs. By centralizing storage for multiple systems, the SSD improves efficiency while streamlining architecture.

• Virtualization: The 4150AT’s SR-IOV capability provides high performance for heavy multi-host workloads of up to 64 VMs. The unique virtualization gives each SoC and its virtual machines an isolated storage region for local processing while sharing a pool of storage, maximizing efficiency. This support for multi-host workloads is essential as today’s automotive SoCs increasingly use VMs to multitask across different functions, from autonomous driving to vehicle-to-vehicle communication. The SR-IOV capability offers an advantage by directing IOs from the VMs directly to the SSD hardware, contrasting with the typical paravirtualization in which IOs are routed through a software hypervisor to the SSD, creating latency. By bypassing the software layer, the drive improves random read performance up to three times.⁽⁴⁾

• Boosted security: Due to its unique virtualization, the 4150AT drive also enables increased security for carmakers. Based on the SR-IOV virtualization, the data of each VM is isolated from others in the hardware to mitigate data or code leakage while curtailing hacking attempts in 1 VM from compromising another — maintaining critical data privacy and security.

• Customizable endurance modes: The firm’s 4150AT SSD is built with its triple-level cell (TLC) NAND but can be configured to support single-level cell (SLC) and high-endurance (HE-SLC) data endurance groups too, which respectively offer 20 times and 50 times the endurance of TLC, to best meet unique data requirements. For example, the HE-SLC endurance group can be used for heavy-write use cases such as continuous black box data recording, in which cars must constantly rerecord critical data from sensors, cameras and lidar. In such a scenario where data is being programmed and erased every few minutes, the HE-SLC mode offers the required endurance while eliminating the need for more expensive volatile memory such as DRAM.

• Designed for automotive industry’s rigorous requirements: The 4150AT SSD delivers Automotive Safety Integrity Level B (ASIL-B) capability to support safety system requirements and is offered in a ball grid array package to help withstand the shock and vibration typical of vehicles’ rugged environments. Like all of the solutions in Micron’s automotive-grade portfolio, the drive is engineered to withstand the extended temperature ranges found in vehicles.

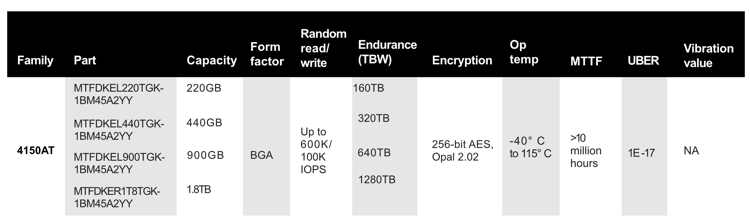

The company is delivering samples of the 4150AT SSD to automotive customers WW. The drive is offered in capacities up to 1.8TB to enable efficient storage of AI algorithms, large language models, advanced infotainment and telemetry data for the next generation of vehicles. The company is showcasing a demo of the SSD at Embedded World in Nuremberg, Germany from April 9-11.

⁽¹⁾ Based on results of Micron’s competitive intelligence
⁽²⁾ Based on the TLC endurance group for the 4150AT SSD
⁽³⁾ Based on results of Micron’s competitive intelligence
⁽⁴⁾ As compared to a drive without SR-IOV supporting up to 2 VMs
