ATP Electronics Introduces S650Si (TLC) and S750Pi (pSLC) Series SD and microSD Up 512GB Cards with 176-Layer 3D NAND

For high-endurance video recording and AI surveillance infrastructures, rated for 5K+ P/E cycles and TBW of up to 2,000TB, and temperature shifts from -40°C to 85°C

ATP Electronics, Inc. introduces its S650Si (TLC) and S750Pi (pSLC) Series SD and microSD memory cards built with 176-layer 3D NAND technology and low-density parity check (LDPC) controller.

Atp S650si S750pi Series High Endurance Sd Microsd Cards 2

With expanded capacity offerings up to 512GB and 5-year extended supply longevity support, the new memory cards are targeted for growing segments spurred by 5G, AI, and edge technologies, such as AI-enabled surveillance, smart homes, mobile monitoring, automotive recorders, remote healthcare, and security surveillance systems requiring heavy write and re-write usage.

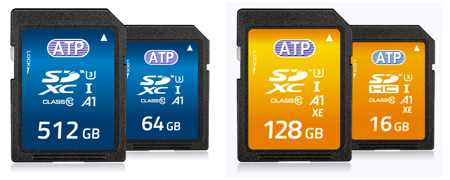

Atp Sd Card Ok

High endurance: Best-in-class cost/GB memory card solutions

  • Native TLC mode
    High endurance is critical in any non-stop recording environment. With capacities ranging from 64 to 512GB, the S650Si Series is rated for 5K+ P/E cycles and Terabytes Written (TBW) of up to 2,000TB.

  • pSLC configuration
    For customers requiring an even higher-endurance solution, the S750Pi Series pseudo SLC configuration offers up to 100,000+ P/E cycles and TBW rating of up to 12,670TB. These memory cards are available in capacities from 16 to 128GB.

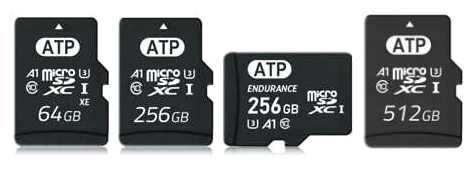

Atp Microsd Cards New

Both configurations are I-Temp operable and feature power loss protection technology, making them suitable for systems installed in extreme conditions with temperature shifts from -40°C to 85°C and unstable power supply settings. Compared with previous-gen firm’s SD/microSD offerings, the new memory cards also offer 3X faster sequential write and better sustained writing performance.

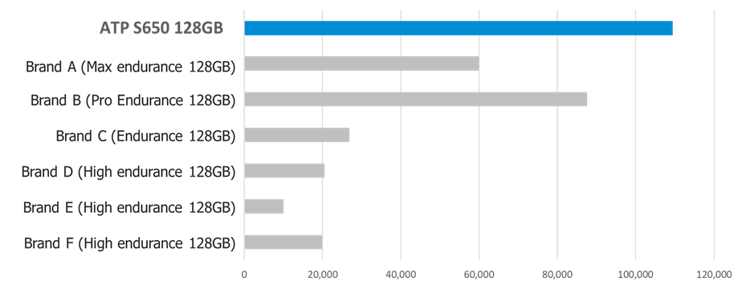

The graph below shows that based on 13Mb/s (lowest bitrate of HD recording) tested at 128GB capacity point, firm’s 176-layer TLC cards deliver extended recording hours compared to competitors with the same storage capacity and also present a cost-effective solution for video recording.

Atp Sd Card Atps650 128gb Tabl1

  • Tested using 128GB ATP S650 TLC card based on 13Mb/s (lowest bitrate of HD recording) in best-case/ideal scenario, with no other influencing factors.
  • Information sourced by ATP from publicly available data. To record new data, the oldest data will be overwritten when the card is full. 1Mbps=1,000,000bps

AI surveillance infrastructures: We build with you
With the rapid advancement of AI technology and the proliferation of edge computing infrastructure and applications, the company is capable of addressing diverse, application-specific needs through its mass production infrastructure. Its developed firmware and hardware configurations can meet customers’ unique requirements.

  • SD Life Monitor: Intelligent workload inspection
    The firm’s SD Life Monitor tool provides ‘Workload Inspection.’ This gives customers a quick look of the write operation and file size by the host systems pre-qualification. The information is presented as a pie graph for ease of monitoring.

Considering the NAND flash page size and FW algorithm, the company then provides recommendations and more information for the host devices’ program data based on the multiples of minimum data transfer size in SD/microSD card datasheet.

Upon tuning according to workload inspection, the firm’s memory cards exhibited consistent latency performance when compared to untuned memory card solutions.

Stable latency ensures consistent performance even after long-term writing, ensuring good-quality continuous video recording. This is especially important for applications like DVRs, where unexpected latency can result in frame dropping or low recording quality.

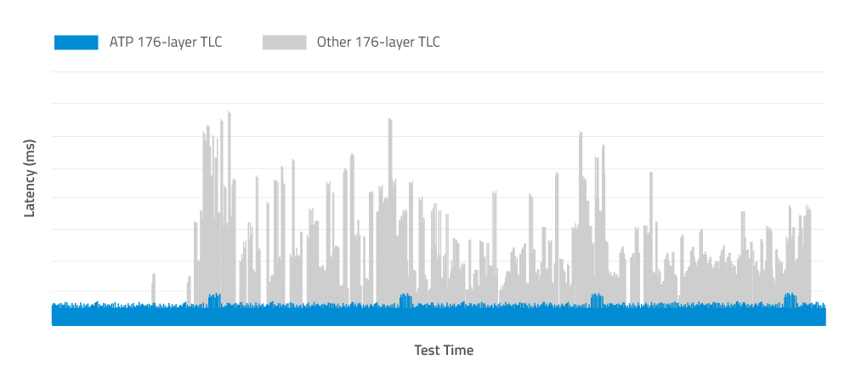

In the following graph, the company’s TLC solutions with optimized latency (blue) maintain stable performance, which ensures high quality real-time video recording even after long-term writing. In contrast, unoptimized solutions (gray) show latency spiking up after a period of programming.

Click to enlarge

Atp 176 Layer Tlc Tab2

  • Joint validation service
    The company performs compatibility and function tests using client-supplied host devices and systems to proactively detect and minimize failures that may not have been caught in production tests. Below are joint validation tests optimized according to application needs.

    • Software joint integration
    • Compatibility study and test
    • Device signal measurement
    • Function/performance enhancement
    • Additional tests (e.g., industrial standard, power cycling test)
  • Advanced card analysis
    System-in-Package (SiP) wafer/die process makes firm’s memory cards resistant to water, dust, and shock; however, it also makes it difficult to perform component analysis compared to SMT (surface-mount technology) process. The firm’s uniquely designed substrate and debug tool make post-analysis possible.

Specs:



SDHC / SDXC

SDXC

microSDHC / microSDXC

microSDXC

Product Line

Premium

Superior

Premium

Superior

S750Pi / S750Pc

S650Si / S650Sc

S750Pi / S750Pc

S650Si / S650Sc

Interface

UHS-I

UHS-I

UHS-I

UHS-I

Flash Type

3D TLC

(pSLC mode)

3D TLC

3D TLC

(pSLC mode)

3D TLC

Form Factor

SD Card

microSD Card

Operating Temperature

-40°C to 85°C / -25°C to 85°C

-40°C to 85°C / -25°C to 85°C

-40°C to 85°C / -25°C to 85°C

-40°C to 85°C / -25°C to 85°C

Power Loss Protection Options

Firmware based

Firmware based

Firmware based

Firmware based

Capacity

16GB to 128GB

64GB to 512GB

16GB to 128GB

64GB to 512GB

Performance

Sequential read (MB/s) up to

95

95

95

95

Sequential write (MB/s) up to

80

80

80

80

Endurance and reliability

Endurance (TBW)1 up to

12,670

2,000

12,670

2,000

Reliability
MTBF@25°C

>3,000,000 hours

>2,000,000 hours

>3,000,000 hours

>2,000,000 hours

Reliability:
number of insertions

20,000 (SDA spec minimum 10,000)

20,000 (SDA spec minimum 10,000)

20,000 (SDA spec minimum 10,000)

20,000 (SDA spec minimum 10,000)

Others

Dimensions

32.0 x 24.0 x 2.1

32.0 x 24.0 x 2.1

15.0 x 11.0 x 1.0

15.0 x 11.0 x 1.0

Certifications

CE, FCC, UKCA, RoHS

CE, FCC, UKCA, RoHS

CE, FCC, UKCA, RoHS

CE, FCC, UKCA, RoHS

Warranty

5 years

2 years

5 years

2 years

           1 Under highest Sequential write value. May vary by density, configuration and applications.
