TerraMaster Updated 2-Bay DAS D2-320 with USB3.2 10Gb/s

TerraMaster Technology Co. Ltd. has upgraded the performance of its USB RAID Storage series products.

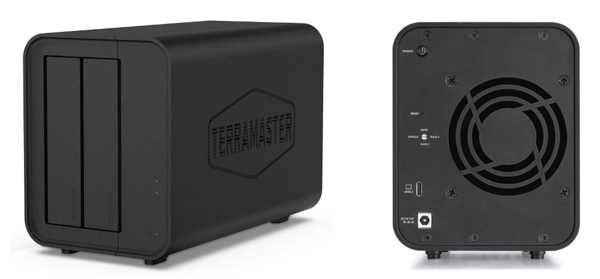

D2-320 front and rear

A upgraded version of D2-310, D2-320 has been launched. The configured USB interface has been directly upgraded from 5Gb/s USB3.1 to 10Gb/s USB3.2 Gen2 interface, providing doubled 10Gb/s data transmission bandwidth.

In terms of appearance design, the 320 series also adopts the company’s new design concept and has been optimized according to user needs. Not only is the overall appearance more simple and elegant, but the HDD installation is also more convenient. By optimizing the internal structure design of the product and adding measures to suppress noise diffusion, the active noise reduction performance of the new-gen product has been improved, and the overall noise level has been reduced by 50% compared with the previous-gen.

D2-320 supports up to 44TB (22TB x 2) storage space, meeting the speed and storage space requirements of professionals.

D2-320 key features:

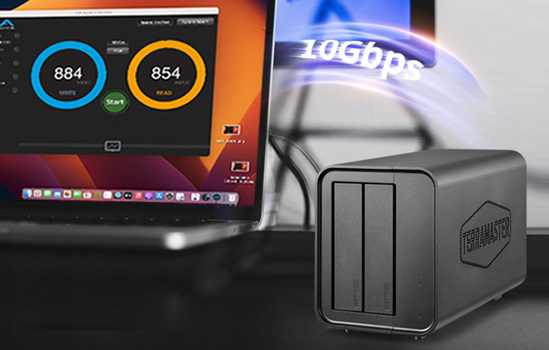

10Gb/s speed
Adopt the USB3.2 Gen2 protocol, D2-320 provides a 10Gb/s data transmission bandwidth, with the actual RW speed up to 521MB/s when 2 HDDs are installed (WD Red 8TBx2 RAID-0 simultaneously read/write); with 2 SSDs installed, the read speed could reach 810MB/s (WD Red 1TB SSDx 2 RAID-0).

Compatible interface
D2-320 is equipped with a USB Type-C interface and USB typeC-type C cable (1m long), which is compatible with a variety of computer interfaces: USB 3.0/USB 3.1/USB 3.2/USB4/Thunderbolt 3/Thunderbolt 4.

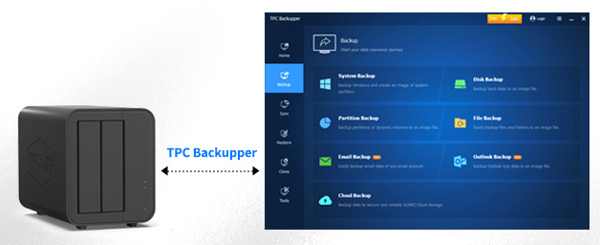

TPC backupper supported

Users can schedule backups between a Windows PC and the D2-320 with TerraMaster TPC Backupper which is a free Windows backup and synchronization software.

Storage space
D2-320 supports 2x22TB large-capacity HDD, which can add more available storage space （up to 44TB ) for Windows, Mac and Linux computers.

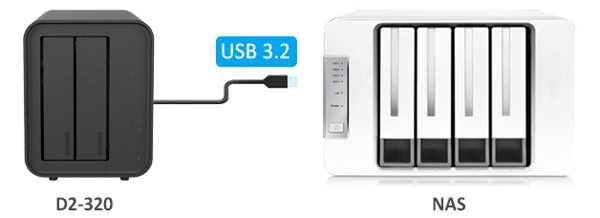

Expansion of TNAS storage space

• Mode 1: Expand TNAS storage space in the form of a storage pool
  User can configure the D2-320 as a RAID configuration storage pool through the TNAS USB interface to expand the TNAS space in the form of an independent storage pool.
• Mode 2: Expand TNAS storage space as an external disk

User can treat each HDD in the D2-320 as an independent disk space, and expand the TNAS storage space in the form of a single independent disk space. For example, if user install 2 HDDs, will see 2 independent storage spaces.

Push-lock bracket design
D2-320 adopts the firm’s Push-lock design, when you insert the HDD, the bracket is automatically locked to prevent it from falling off or disconnecting. The screw-free HDD installation method takes less than 10s to install a HDD, providing convenience for users who need to frequently replace HDDs to exchange data.

Less noise

D2-320 adopts the company’s new structure. In addition to the additional shock absorption measures, the firm’s engineers also designed many special sound-absorbing panels in the new structure to minimize noise. The noise level is only 19dB(A) in standby mode, which is 50% lower than previous-gen of products.

The 320 series includes 3 models: D2-320 (2 bays), D4-320 (4 bays) and D6-320 (6 bays), which can meet the needs of home users, SOHO and small businesses for high-performance NAS.

The D2-320 and D6-320 are already available in the US and European markets, and the D4-320 will be fully available in other markets soon. TerraMaster D2-320 price at Amazon webstore: $169.99
