Eutelsat Increases Service Availability by Migrating to AWS

By Francesco Marelli, principal solutions architect, Amazon Web Services

Eutelsat Group, the world’s first satellite operator to provide an integrated geosynchronous equatorial and low-Earth orbit (GEO-LEO) infrastructure, recently migrated their existing on-premises commercial Hadoop cluster to Amazon Web Services (AWS).

By leveraging AWS reliability, scalability, and security, it helps customers analyse data in real time with enhanced system availability across 3 AWS Availability Zones. As a result, it reduced licensing costs by 50%, increased service availability to more than 99.8%, and decreased incidents.

Original system
Launched in January 2020, Eutelsat Konnect is a high-capacity satellite which delivers broadband services across Europe and Africa to help bridge the digital divide in areas where terrestrial networks are not deployed or offer poor performance. Powered by a global fleet of 36 geostationary satellites and associated ground infrastructure, Eutelsat provides 75Gb/s of capacity across a network of 65 different areas of coverage, enabling customers to reliably provide video, data, and fixed and mobile broadband services. The following maps show Konnect’s area of coverage in Africa and Europe.

Konnect coverage area map of Africa

Konnect coverage area map of Europe

To keep pace with consumer demand for over-the-top (OTT) streaming services, Eutelsat is growing connectivity at a high rate. Demands on handling and managing data for connectivity services have increased from 100Gb/day to multiple terabytes/day. Furthermore, the launch of 4 new satellites in 2022, puts more demands on Eutelsat data processing and analysis resources.

To address these needs, Eutelsat incorporated an on-premises commercial Hadoop cluster in its data center. This was implemented as an analytics system based on a MySQL database and SAP Data Services to analyze telemetry data from the Konnect satellite and other geostationary satellites. The cluster was comprised of 15 nodes, of which 6 were data nodes with 64 core CPUs, 256GB of RAM, and 12TB total storage with a standard replication factor of 3 each.

The cluster was in high availability but lacked a DR site, resulting in a potential single point of failure for satellite telemetry data analysis. This could have impacted business and analytics operations because restoring from backups would take a few days. Scaling the cluster horizontally and vertically was a complex task that required specialized skills and the tight coupling of storage and compute. Moreover, only historical data was analyzed in batch and lacked real-time components.

Eutelsat migrated the cluster to AWS to overcome the limitations of their existing data platform and provide a more flexible, scalable, and highly available system.

New system
The new Eutelsat Data Lakehouse system on AWS is deployed on Amazon Elastic Compute Cloud (Amazon EC2) instances in private subnets in a virtual private cloud (VPC) over 3 Availability Zones. The data is stored on Amazon Simple Storage Service (Amazon S3), providing high availability and durability.

The system is integrated with a 3rd-party directory for single sign-on (SSO). Eutelsat’s data center is connected to AWS with two (in Turin, Italy and Paris, France) 1Gb AWS Direct Connect dedicated connections for high availability.

Figure 1 shows the target architecture implemented on AWS on 3 Availability Zones in the EU-Central1 region (Frankfurt, Germany). Compute capacity is provided by Amazon EC2 instances, Amazon Relational Database Service (Amazon RDS) is configured in high availability for Hadoop services such as the Hive Metastore.

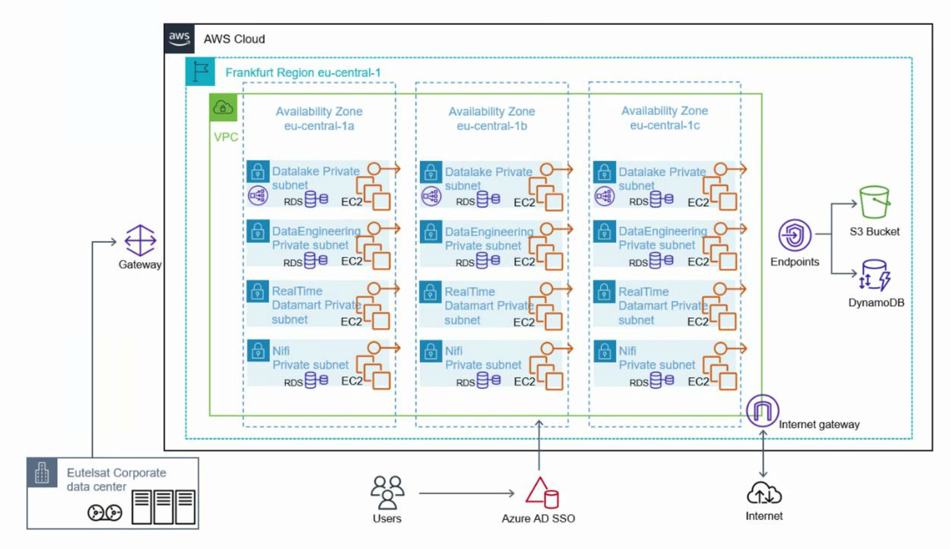

Figure. 1. Target architecture implemented on AWS on 3 availability zones in the EU-Central1 region. Compute capacity is provided by Amazon EC2 instances, Amazon RDS is configured in HA for Hadoop services such as the Hive Metastore. The connection to AWS from Eutelsat’s data center is implemented with AWS Direct Connect. Data is stored in HDFS on Amazon Elastic Block Store (Amazon EBS) attached to Amazon EC2 instances and Amazon Simple Storage Service (Amazon S3). Amazon S3 and Amazon DynamoDB are connected to the system with Amazon VPC endpoints.

Click to enlarge

New system is comprised of following components:

YARN, Hive, and Spark
- Master nodes (3xm5.8xlarge)
- Worker nodes (6xr5d.8xlarge, 2 nodes per AZ)
- Edge nodes (2xm5.2xlarge)
NiFi (9xm5.2xlarge, 3 nodes per AZ)
ZooKeeper (3xm5.xlarge)
Kudu and Impala (6xm5.2xlarge)

Decoupling storage and compute allows for the independent management and scaling of both components, providing great flexibility and the benefit to manage peak load without overprovisioning.

By moving to AWS, Eutelsat started analysing data in real time with Kudu and Impala. The outputs of real-time analysis are interpolated with data coming from other systems to eventually manage satellite settings.

Challenges and lessons learnt
The migration project was managed and executed together with AgileLAB, which Eutelsat selected based on AgileLAB’s ability to analyse its existing data landscape. Eutelsat also relied on AgileLAB to design and implement a migration strategy from their old platform to AWS, leveraging their extensive experience on similar projects.

Now, combined with AWS scale, speed, and flexibility, the resulting platform can handle cost-effective, real-time migration capabilities.

During the migration, the new and old system ran in parallel. NiFi FlowFiles were exported from the old cluster to the new 1 using templates and modifying PutHDFS with PutCDPObjectStore to effectively store the data on Amazon S3. Hive tables were migrated with a custom API that converts that into optimized row columnar (ORC) format with a Hive command on the old cluster and copies them to the new cluster with WebHDFS REST APIs.

To optimize data processing on Amazon S3, data write procedures were modified to avoid the generation of small files and enable data compaction. Configuration settings like replication factor were modified for HDFS and Kudu. Custom Ansible scripts were developed to automatically handle configuration scripts such as certificates management, DMS management and LDAP authentication management of Apache Knox endpoints.

Conclusion
By using AWS, the Eutelsat engineering team can focus on dataflows and data management tasks instead of infrastructure and system administration tasks.

The result is a 35% improvement in time going to market and increased business agility, enabling Eutelsat to quickly and securely scale the cluster up or down in hours instead of weeks based on computing needs. Additionally, the decoupling of data from the cluster to Amazon S3 enables the Eutelsat team to work without the risk of any impact on company data.
