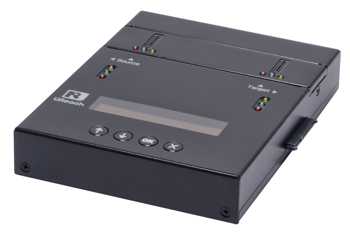

U-Reach NVS200USAS Mini Series M.2 Up to Gen 5/U.2 and U.3 NVMe/SATA/SAS Duplicator and Sanitizer 1-1

U-Reach Data Solutions Inc. will be releasing the NVS200USAS product in its mini-series product line.

Despite its small size, it comes with some big features. This machine can reach transfer speeds up to 24GB/mn, only being limited by what devices user have connected to it. With its 1 to 1 cross interface copying user can copy from almost any device to another.

The NVS200USAS supports M key and B+M key for all M.2 SATA/NVMe devices, U.2/U.3, SATA HDD/SSD devices, SAS HDD/SSD devices, and mSATA devices. System and files copy mode supports Windows (FAT16/32/64, NTFS), Linux (ext2/ext3/ext4), and Mac (HFS, HFS+, HFSX) and the whole media copy can support any proprietary format.

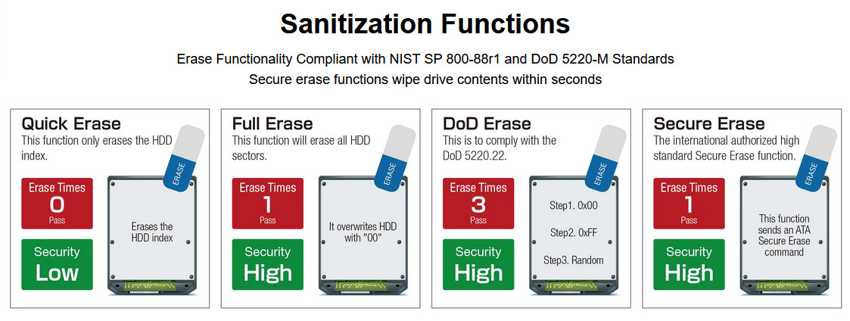

Data sanitization is also a big feature for this machine. All erase functionalities (Quick Erase, Full Erase, DoD Erase, and DoD Erase + Compare) are compliant with NIST SP 800-88r1 and DoD 5220-M Standards. Use these secure erase functions to wipe drive contents within seconds.

The company is in constant innovation inspired by customer feedback and market research data. Following the 2 tenets of intuitive control and efficiency, it will continue to implement and create innovative solutions and features to the industry.

Model	NVS200USAS
Target	1
Maximum transfer speed	24.0GB/min. Actual performance is dependent on HDD transfer speeds
Capacity	Supports the largest sized devices available on the market.

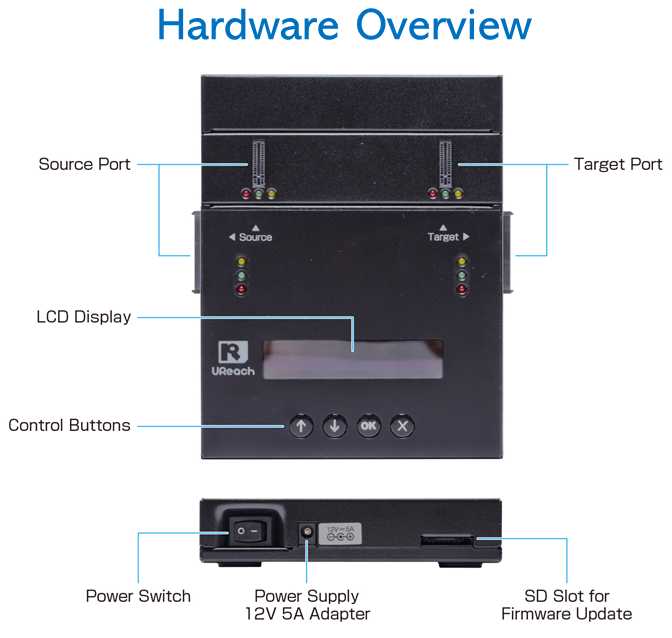

Operating type	Stand-alone, FPGA-based operation (Non PC-based)
Supported languages	English, Japanese
LCD display	Backlit Monochrome LCD Display
LEDs	3 LED Indicators per Port: Yellow (Power), Green (Pass), and Red (Fail)

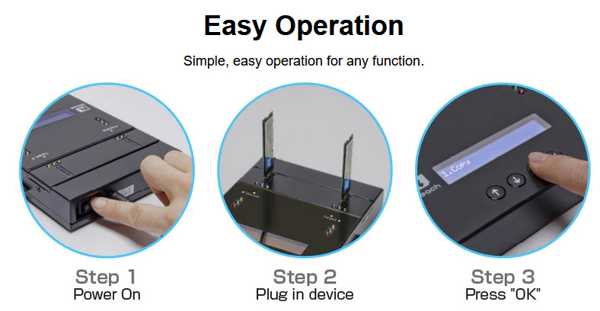

Control panel	4 Push Buttons(▲, ▼, OK, ESC)

Features:

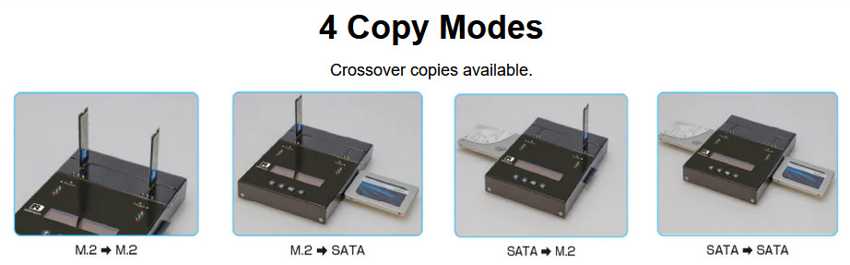

Copy modes	Quick Copy (Systems and Files Copy), All Partition Copy, Whole Device Copy, Percentage Copy
Compare function	Bit-by-bit data comparison
Sanitization modes	Quick Erase, Full Erase, DoD Erase, Secure Erase, and more

Compatibilities:

Compatible devices

NGFF (M.2): 2230, 2242, 2260, 2280, 22110, PCI-e SSD (full and low profiles)

SATA HDD/SSD, SAS HDD/SSD, U.2, U.3

Supported formats

Quick Copy: FAT16/32/64, Windows (NTFS), Linux (Ext2/Ext3/Ext4), and Mac (HFS, HFS+,HFSX)
Whole device copy: All formats, including proprietary formats

Supported OS

All (Windows, Mac, Linux, and other stand-alone systems)

Hardware specs:

Power supply	Universal power: 115VAC or 230VAC, 50/60Hz
Working temperature	0°C~60°C (32°F~140°F)
Storage temperature	-20°C~85°C (-4°F~185°F)
Working humidity	20%~95%, non-condensing
Storage humidity	5% to 95%, non-condensing
Product dimensions	11.5 x9x 3″
Weight (lbs)	3.6
Certifications	FCC, CE, RoHS, and REACH
