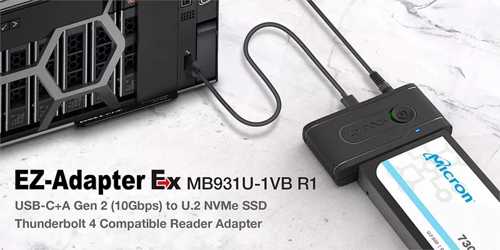

Icy Dock EZ-Adapter Ex MB931U-1VB R1 USB 3.2 Gen 2 External Adapter for 1xU.2 PCIe NVMe SSDs

Icy Dock announced the EZ-Adapter Ex MB931U-1VB R1 adapter to provides SMB, power users, and media professionals a way to access their enterprise-level U.2 PCIe NVMe SSDs.

The EZ-Adapter Ex utilizes a 10Gb/s USB 3.2 Gen 2 interface and is compatible with the USB 2.0 and Thunderbolt interfaces for system compatibility. In addition, the tool-less drive installation design allows users to transfer large files from multiple U.2 SSDs to any computer through a USB connection without having NVMe support on the computer end.

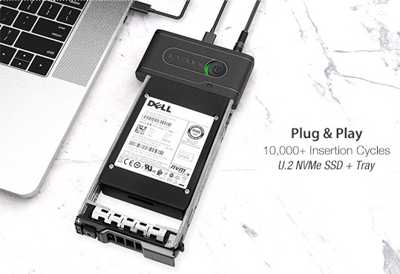

Access NVMe SSD with or without drive tray

The re-engineered EZConvert Ex MB931U-1VB R1 eliminated the drive guider to accommodate 3rd-party drive caddy/trays from Dell, HP, SuperMicro, and other manufacturers. This redesign creates a way of accessing data as the U.2/U.3 SSDs no longer need to be unscrewed or disassembled from drive trays. The tool-less drive installation allows the MB931U-1VB R1 to swap multiple drives within seconds, making the process.

The benefits of using U.2/U.3 NVMe SSDs are fast IO/s, high storage capacity, long lifespan, end-to-end path protection (ETEP), and power loss protection (PLP). However, accessing U.2/U.3 drive required an NVMe host and specific cables, making the data transfer between the systems almost impossible. With EZ-Adapter Ex MB931U-1VB R1, connect the U.2/U.3 SSD to the EZ-Adapter Ex and then plug the USB type A or USB type C connector into the system to start the data transfer.

For video professionals who film 12K footage with Blackmagic URSA Mini Pro 12K camera and U.2/U.3 SSD, the EZ-Adapter MB931U-1VB R1 is a NVMe SSD media reader that lets user access U.2/U.3 media drives in seconds.

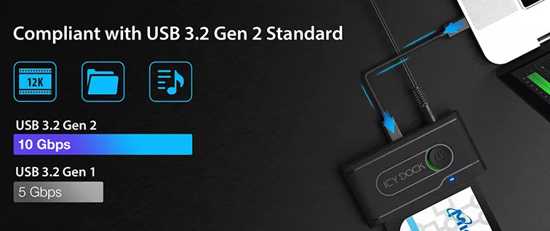

Performance

To fully utilize the power of the U.2/U.3 PCIe NVMe SSD, the EZ-Adapter Ex uses the USB 3.2 Gen 2 interface that can provide transfer speeds up to 10Gb/s, giving user the ability to backup large data files or store 4K/5K/8K videos in seconds. A 12V power supply is included to ensure enough power is provided for the power-hungry U.2/U.3 SSD.

The exposed U.2/U.3 SSD from the enclosure allows full passive heat dissipation to optimize cooling performance.

Compact for portable
The MB931U-1VB R1 has been engineered for mobility but does not compromise functionality and durability. The EZ-Adapter Ex is made out of durable ABS plastic with a smooth finish that will not damage other equipment when placed in a carry-on bag. The compact design allows the EZ-Adapter Ex to be carried without taking too much space.

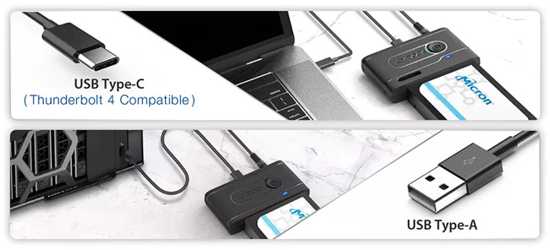

Ultimate compatibility

The MB931U-1VB R1 comes with a USB type C to C cable for USB-C and Thunderbolt 4 ports and a USB type C to A cable for USB-A ports to cover both new and legacy systems, making the EZ-Adapter Ex a true plug and play external NVMe SSD enclosure with no drivers or software required.

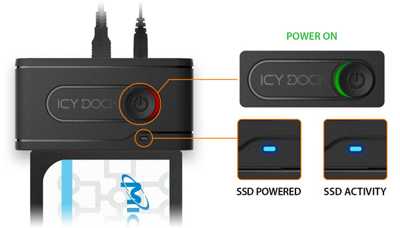

LED indicator

The EZ-Adapter Ex is equipped with a LED indicator that shows the drive power and activity. The individual slide-switch power button allows users to power off the SSD when not used to extend the drive’s lifespan and conserves electricity.

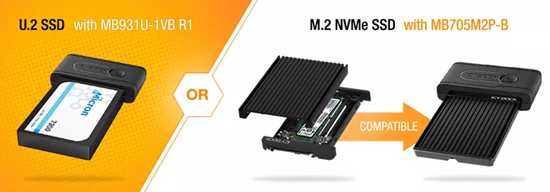

Pair it with M.2 to U.2 NVMe SSD adapter (EZConvert MB705M2P-B)

If user want to access M.2 NVMe SSDs with EZ-Adapter MB931U-1VB, the EZConvert MB705M2P-B M.2 to U.2 SSD adapter converts M.2 NVMe SSD to the U.2 NVMe SSD, giving user the flexibility of accessing U.2, U.3 and M.2 NVMe drives through EZ-Adapter Ex.

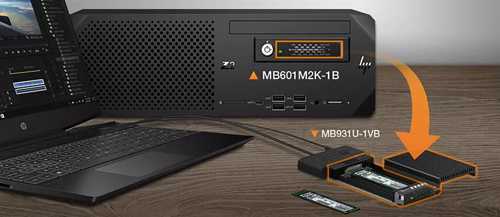

Pair it with ToughArmor MB601M2K-1B M.2 NVMe SSD mobile rack

The ToughArmor MB601M2K-1B mobile rack supports PCIe 4.0 transfer speeds up to 64Gb/s and fits into a computer system’s standard 3.5″ drive bay. Pair it with EZ-Adapter Ex MB931U-1VB R1 gives user both PCIe 4.0 transfer speed and on-the-go convenience.

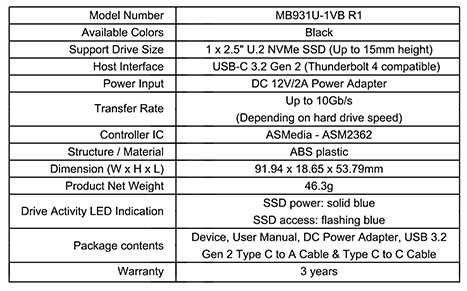

Key features:

Supports 1xU.2/U.3 PCIe NVMe SSD
10,000+ rated insertion and removal cycle connector
Supports transfer speeds up to 10Gb/s via USB 3.2 Gen 2
Tool-less SSD installation design with or without a drive tray
Compatible with USB 2.0 and Thunderbolt 4 Interfaces
Cool blue drive activity LED indicator
Large slide-switch on/off drive power button
DC 12V Power Adapter included to power U.2 NVMe SSD
Anti-slip rubber foot pads ensure the adapter will not slide on the surface

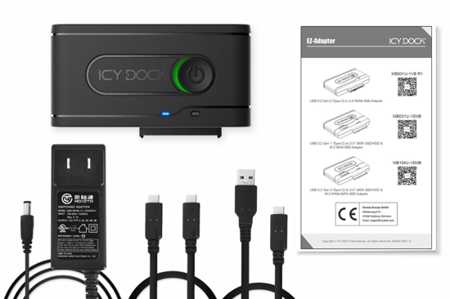

USB Type C to C and C to A cables are included for the best performance and system compatibility
3-year warranty with complimentary tech support and customer service
Compatible with M.2 NVMe PCIe SSD when paired with EZConvert MB705M2P-B
