Qnap TS-855X 6-Bay 3.5-Inch and 2-Bay 2.5-Inch Desktop NAS with 2xBuilt-In M.2 PCIe NVMe Slots and 10GbE/2.5GbE Ports

Qnap Systems, Inc. announced the TS-855X NAS offering hybrid storage space of 6×3.5-inch HDDs and 2x2.5-inch SSDs.

Featuring an Intel Corp.’ Atom C5125 2.8GHz 8-core processor with Intel QAT and SR-IOV technology, the TS-855X supports up to 128GB DDR4 memory and comes with 10GbE/2.5GbE network ports. Storage capacity can be flexibly expanded, and 25GbE network ports are supported by installing a compatible PCIe card. With all-inclusive business backup, virtualization and cybersecurity applications, SMBs can achieve high-performance, high-speed and highly-expandable storage and virtualization environments with the lowest TCO.

“Qnap’s HDD/SSD hybrid-storage NAS series helps SMBs get the right balance of both performance and cost,” said Andy Chuang, product manager. “The hybrid 8-bay TS-855X with 8-core computing power, hardware acceleration, 10GbE/2.5GbE connectivity and PCIe expandability is the most cost-optimized and up-to-date data storage and backup solution for SMBs.”

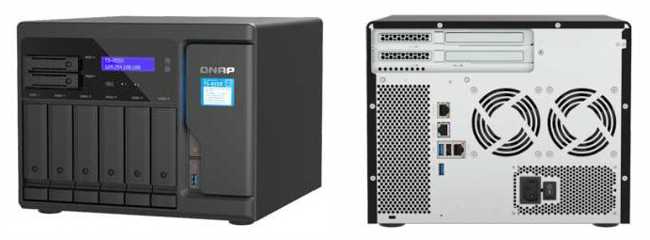

TS-855X NAS front and rear

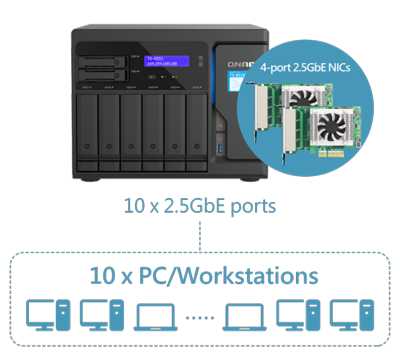

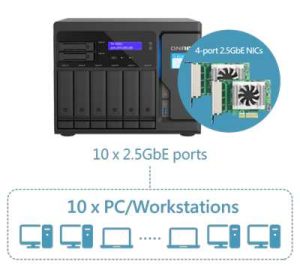

The TS-855X comes with 4 UDIMM DDR4 slots (8GB preinstalled) that can be upgraded to 128GB to support multitasking and higher workloads. ECC memory is also supported to deliver server-grade performance and reliability for business-critical enterprise IT environments. Besides 1-port 10GbE connectivity, the 2x2.5GbE RJ45 (2.5G/1G) ports can also be combined to enable SMB Multichannel for up to 5Gb/s transmission speed.

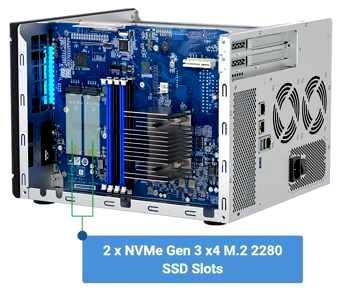

Two built-in M.2 PCIe NVMe slots provide support for SSD caching or Qtier auto-tiered storage (available in QTS NAS OS) to further upgrade NAS performance. Two PCIe Gen 3 x4 slots allow users to install 10GbE/25GbE network cards and enable SR-IOV for improved I/O throughput. The TS-855X is certified by VMware vSphere and Microsoft Hyper-V for virtualization storage. Businesses can achieve massive storage capacities by flexibly connecting Qnap JBOD expansion units to the TS-855X to meet long-term storage and archiving requirements with maximized ROI.

The TS-855X provides an all-in-one backup and restoration solution supporting versatile cloud-based services for simple hybrid cloud deployment. IT staff can regularly take snapshots to protect NAS against ransomware and create virtual private networks using the QVPN service for secure remote data access to NAS. Windows, Linux, UNIX, Android virtual machines can be hosted using Virtualization Station. Docker, LXD, and Kata containers can be run using Container Station. Users can find and install a multitude of apps from the App Center to expand the application potential of the NAS. Running the QTS NAS OS as standard, the TS-855X can be flexibly switched to use the ZFS-based QuTS hero NAS OS for reliability and data integrity.

Key Specs:

• TS-855X-8G:
  Tower model, hot-swappable 6×3.5-inch 6Gb SATA hard drive bays and 2×2.5-inch 6Gb SATA SSD bays, Intel Atom C5125 8-core 2.8GHz processor, 8GB DDR4 UDIMM memory (up to 128GB), also supports DDR4 ECC memory, 1x10GbE RJ45 port, 2×2.5GbE Gigabit RJ45 ports, 2xM.2 PCIe Gen 3 x4 slots, 2xPCIe Gen 3 x4 slots, 3xUSB 3.2 Gen 1 (5Gb/s) ports, 1xUSB 2.0 ports

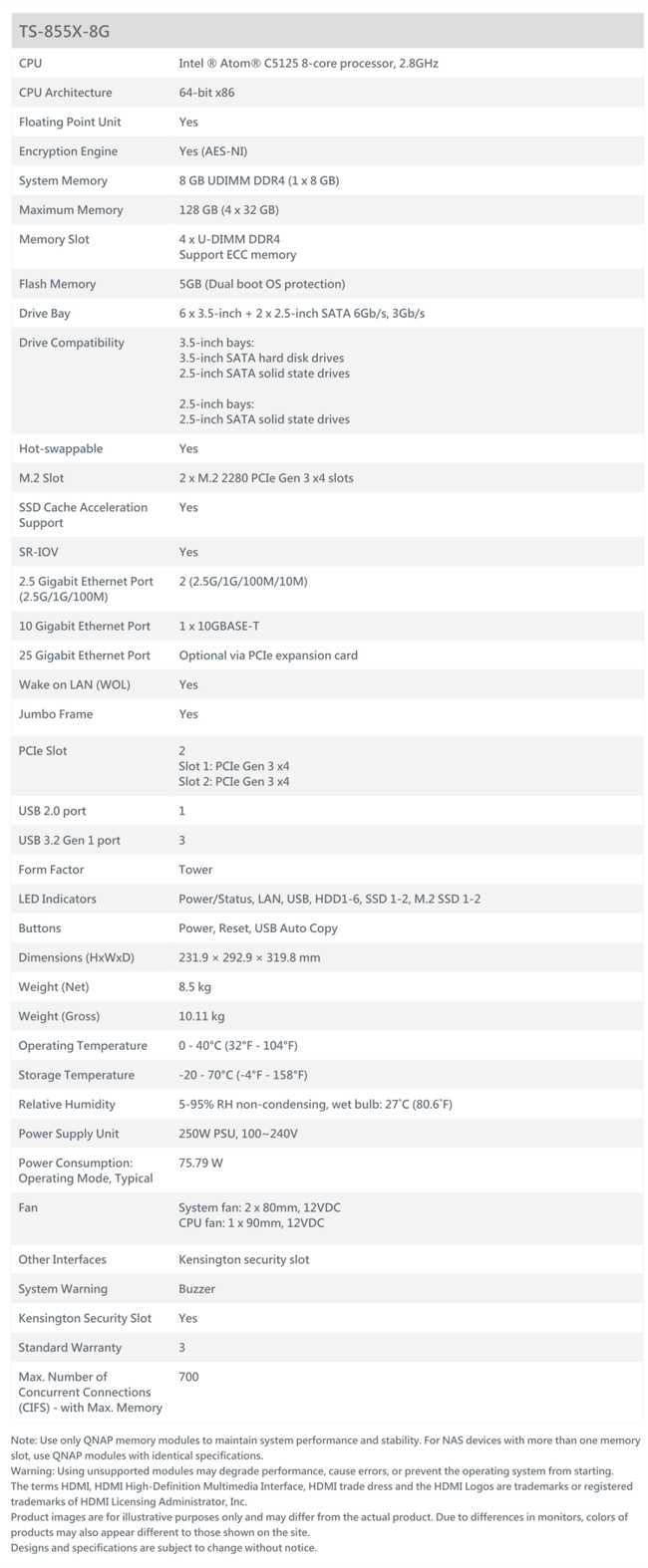

TS-855X NAS specs:
