Kinetic USB Type-C Complete Port Protection Enabling Power Delivery to 140W with PD3.1 EPR Compatibility

Kinetic Technologies announced 2 products that can increase the Power Delivery capability of USB Type-C ports to 140W, removing the barrier to expanding the range of electronic products charged via USB.

The KTS1898 is dedicated to switching and protecting VBUS power, while the KTU1128 is dedicated to switching and protecting the CC1/2 and SBU1/2 lines.

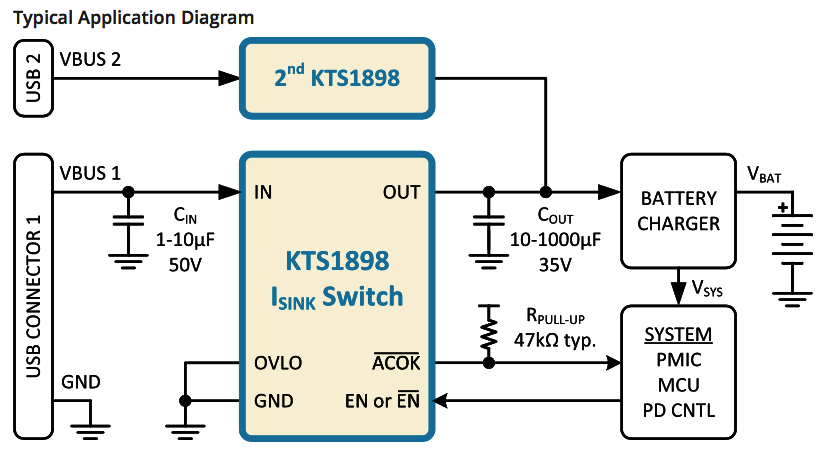

It is a low-resistance, 5A load switch with soft-start, overvoltage, ‘ideal diode’ reverse-current, short-circuit, over-current, over-temperature and ESD protection plus integrated surge protection of ±100V, designed to isolate and protect downstream components from abnormal VBUS voltage and current conditions. The fast reverse current protection (ideal diode) allows multiple power paths to be connected to VBUS OUT without interference.

The KTU1128 companion IC is a Thunderbolt compatible, Type-C USB data line protection and switch IC, providing low-resistance, fast OVP, and surge protection for the CC and SBU lines. Maintaining pin-to-pin compatibility with existing products, it increases the operating tolerance on CC and SBU lines to 32V for short-to-VBUS protection and reduces the quiescent current.

“The KTS1898 and KTU1128 are industry leading devices that allow designers to implement USB Type-C PD3.1 Extended Power Range (EPR) up to 140W and effectively address safety at the same time,” says Erik Ogren, senior director, marketing. “With the ability to withstand up to +35V on VBUS, the KTS1898 delivers the margin our customers require to build 28V systems that are designed to be safe and reliable, while the super low-resistance 25mΩ MOSFET keeps heat to a minimum, which is essential when operating at such high-power levels. The KTU1128 features the same built-in robust protection and together extends Kinetic’s lead in this application.”

KTS1898 and KTU1128 samples are available with production starting in 1Q23.

Key product highlights:

KTS1898 – 28V VBUS protection

• 3V to 32V operating voltage range

  • 35V Abs max. rating at IN and OUT

• 5A Continuous current rating

  • 10A peak

• Supports 140W USB power delivery 3.1 (EPR)

• ‘Ideal Diode’ Reverse-current protection with 15µs fast recovery

• Full protection: OVP, SCP, OCP, OTP and RCP

• IEC61000-4-5 Surge Protection ±100V

• IEC61000-4-2 ESD protection ±15kV Air, ±8kV contact

KTU1128 – 28V CC/SBU protection

• 2.5V to 5.5V operating voltage range

  • 32V DC Tolerance on CC1/2, SBU1/2

• Thunderbolt compatible

• 70ns OVP response time

• IEC61000-4-5 Surge protection ±40V/±30V CC/SBU

• IEC61000-4-2 ESD protection ±15kV Air, ±8kV contact
