BCD Deepstor Petabyte-Scale Rack-Mounted Block External Storage Enclosures

BCD announced Deepstor petabyte-scale, rack-mounted block external storage enclosures.

These scalable solutions are purpose-built for any video recording and archival environment, focusing on delivering data resiliency, HA, and performance enterprise storage infrastructure for conventional data centers. Their modular architecture makes components interchangeable between systems.

Deepstor scalable solution delivers unfettered data access with dual redundant controllers capable of achieving sequential read and write performance, while managing hot and cold data with real-time data tiering. mirrored cache, Supercapacitor cache backup, and cache backup to NVM flash are standard features. Each system comes standard with redundant hot-swappable storage controllers, drives, fans, and power supplies.

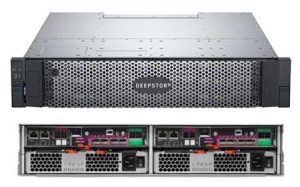

These solutions also include dual power cords, hot standby spare, automatic failover, and multi-path support. The controller performance within these 2U 12-Bay and 5U 84-bay storage enclosures allow for 12GB/s read and 10GB/s write throughput, with 725,000 IO/s at 1ms latency. Each system includes Autonomous Drive Regeneration (ADR), and company’s quick-start integration for deployment.

Integration offers user-friendly features, including:

• Simple and guided user interface for host port mode setup and configuration

• Automated iSCSI virtual disk target configuration

• Automated iSCSI LUN connection and addition to the host

• Simplified disk group and storage capacity expansion

• Automated system log retrieval for diagnostics

• and simplified disk and controller firmware updates

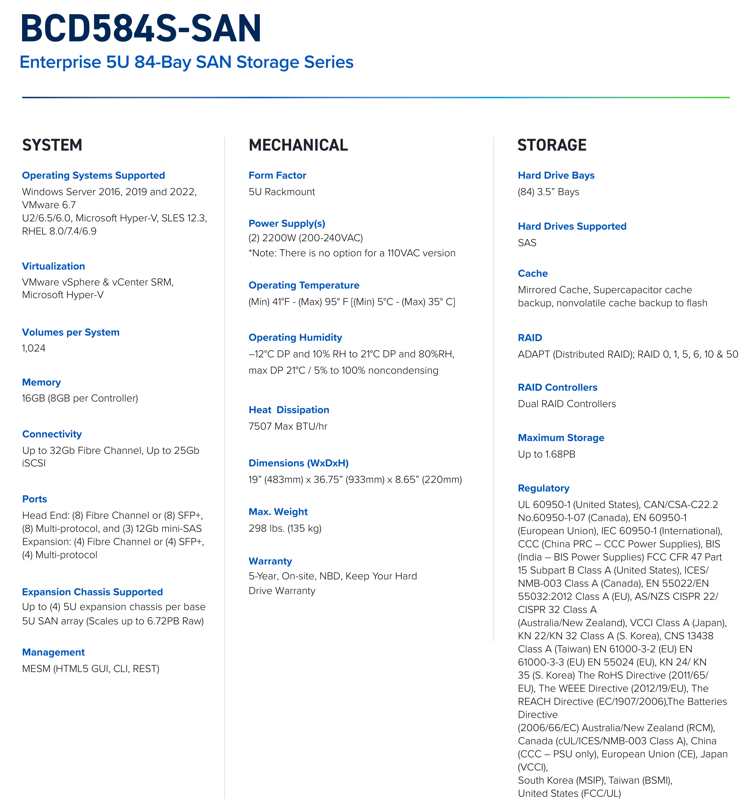

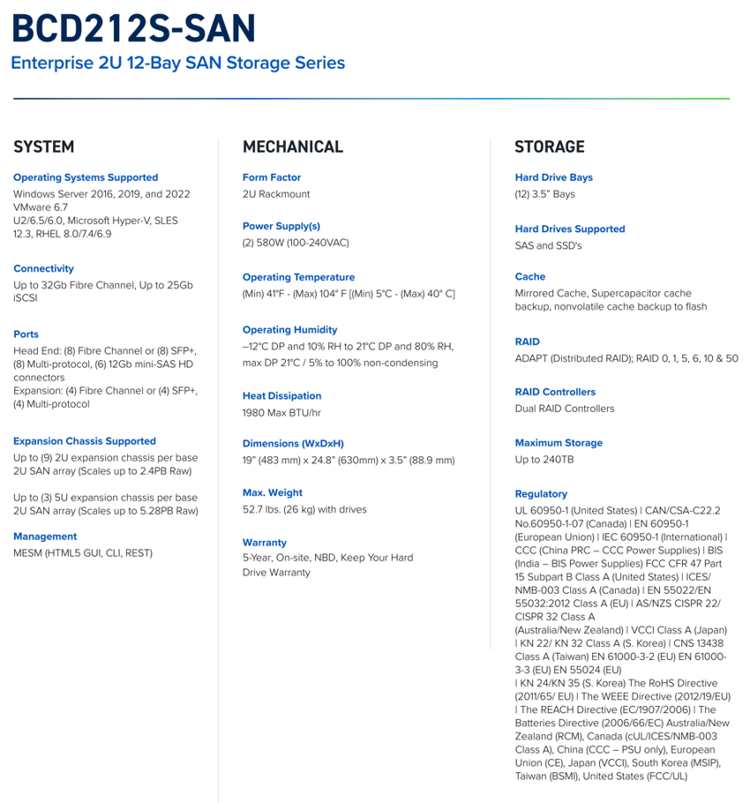

The 12-bay system scales up to 2.3PB and the 84-bay system to up to 6.7PB of raw storage. The customizable data protection is Autonomic Distributed Allocation Protection Technology (ADAPT) or RAID configurations of 0,1,5,6, and 10. Running ADAPT replaces traditional RAID types with a protection scheme that distributes data across every drive and enables faster drive rebuilds by having all the existing drives contribute.

Deepstor main interface screenshot
Click to enlarge

The Deepstor offers efficient, affordable mass storage to all vertical markets relying on instantaneous on-premises video surveillance recording. In addition, it provides BC by protecting critical data, allowing rapid access to the data, data protection, and self-healing technology to reduce management time or human intervention.
