AMD Ryzen Embedded V3000 Series Processors Delivering Levels of Performance and Power Efficiency for Always-On Storage and Networking

AMD (Advanced Micro Devices, Inc.) introduced the Ryzen Embedded V3000 Series processors, adding the high-performance ‘Zen 3’ core to the V-Series portfolio to deliver reliable, scalable processing performance for a range of storage and networking system applications.

With greater CPU performance ⁽¹⁾, DRAM memory transfer rate ⁽²⁾, CPU core count ⁽³⁾ and I/O connectivity when compared to the Ryzen Embedded V1000 series, the Ryzen Embedded V3000 Series processors deliver the performance and low-power options required for some of the demanding 24×7 operating environments and workloads.

Now shipping to embedded ODMs and OEMs, Ryzen Embedded V3000 processors address the growing demands of enterprise and cloud storage, as well as data center network routing, switching and firewall security features. These processors can power a variety of diverse use-cases ranging from virtual HCI to advanced systems at the edge.

“We designed AMD Ryzen Embedded V3000 processors for customers seeking a balance of high-performance and power-efficiency for a wide range of applications in a compact BGA package,” said Rajneesh Gaur, corporate VP and GM, embedded solutions group, AMD. “AMD Ryzen Embedded V3000 processors deliver a robust suite of features with advanced benefits required for superior workload performance in enterprise and cloud storage and networking products.”

ARyzen Embedded V3000 processors are available in 4, 6 and 8-core configurations with low thermal design power (TDP) profiles spanning from 10 to 54W for storage and networking systems to enable an exacting balance of performance and power efficiency in a compact design. The family enables system designers to leverage a single board design for a range of system configurations, with BGA packaging and low thermal dissipation for the creation of more versatile, flexible designs that ease system integration.

“Storage and networking require a different balance of data processing performance, data movement, power management and thermal management than traditional compute. Processors for storage and networking require compute, memory and I/O capabilities balanced for rack space utilization, power efficiency and low heat dissipation in space-constrained environments,” said Shane Rau, research VP, computing semiconductors, IDC. “The market for storage and networking will demand x86-compatible processors optimized for core data center and edge infrastructure systems and processor vendors offering them will help their OEM customers significantly expand their system TAM while leveraging their existing investments in the x86 ecosystem.”

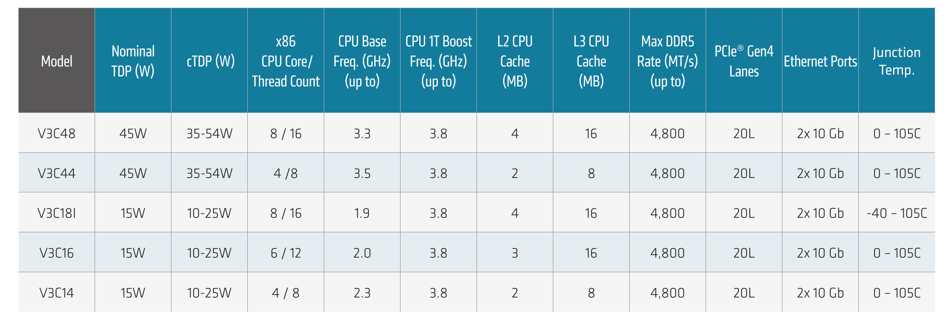

Ryzen Embedded V3000 Series processor overview

Click to enlarge

Additional benefits

• Linux OS support with upstreamed Ubuntu and Yocto drivers

• Planned product availability up to 10 years, providing customers with a long-lifecycle support roadmap

• Available security capabilities include AMD Memory Guard ⁽⁴⁾ for defending vs. unauthorized memory access, and AMD Platform Secure Boot ⁽⁵⁾ to mitigate for firmware advanced persistent threats (APTs)

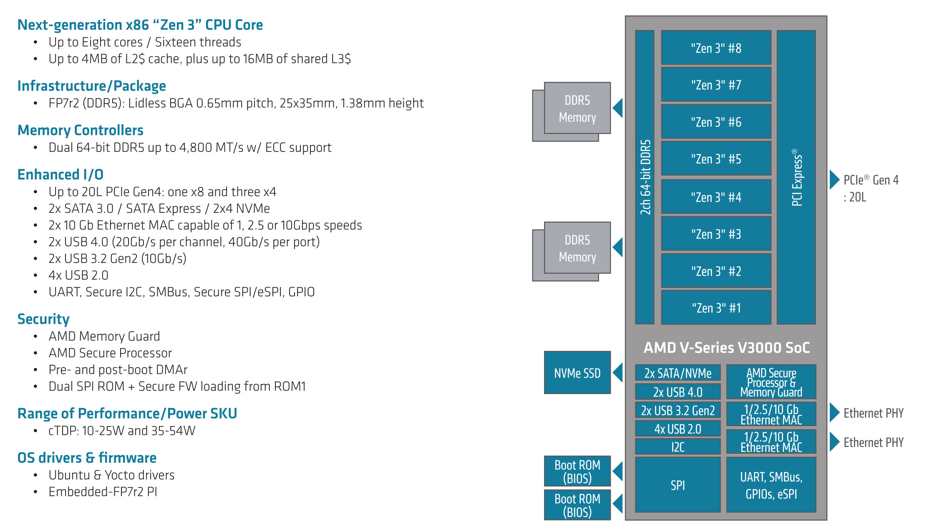

Click to enlarge

⁽¹⁾ EMB-191: Testing conducted by AMD Performance Labs as of July 2022 on the Ryzen Embedded V3C18I and January 2022 on the Ryzen Embedded V1500 processor at 15 and 16W TDP respectively (STAPM mode disabled) using CoreMark (compiler option: v1.0 binaries gcc610_O3_1T preset), on a test system comprising: Ryzen Embedded V3C18I processor: AMD Reference FOX Motherboard, 2x16GB DDR5-4800 Micron RAM, Samsung PM9A1 M.2 NVMe PCIe Gen4 512GB storage, Linux Ubuntu 22.04.3 with Kernel 5.18, Insyde BIOS RFX1001A, AMD package drivers 2022.20 Ryzen Embedded V1500 processor: AMD Reference BILBY Motherboard, 2x8GB DDR4-3200 Micron RAM, Samsung SSD EVO M.2 M.2 256GB storage, Linux Ubuntu 20.04.2 with Kernel 5.15, Insyde BIOS RBB1208A, AMD package driver 2021.40. PC manufacturers may vary configurations, yielding different results. The Ryzen Embedded V3C18I scored 34,906 iterations / second and V1500 15,526 iterations/s using CoreMark (compiler option: v1.0 binaries gcc610_O3_1T preset). (34,906/15,525= 224% the performance or 1.24x (124%) better.
⁽²⁾ EMB-190: Ryzen Embedded V3C48 processor family offers dual-channel 64-bit DDR5 up to 4800MT/s. Ryzen Embedded V1780 processor family offers dual-channel 64-bit DDR4 up to 3200MT/s. 50% = (4800 – 3200) / 3200
⁽³⁾ EMB-189: Ryzen Embedded V3000 processor family offers up to 8 ‘Zen 3’ x86 CPU cores. Ryzen Embedded V1000 processor family offers up to 4 ‘Zen’ x86 CPU cores.
⁽⁴⁾ Full system memory encryption with AMD Memory Guard is included in AMD Ryzen PRO, AMD Ryzen Threadripper PRO, and AMD Athlon PRO processors. Requires OEM enablement. Check with the system manufacturer prior to purchase. GD-206.
⁽⁵⁾ An OEM who has enabled the AMD Platform Secure Boot feature grants permission for their cryptographically signed BIOS code to run only on their platforms using an AMD Platform Secure Boot enabled motherboard. One-time-programmable fuses in the processor bind the processor to the OEM’s firmware code signing key. From that point on, that processor can only be used with motherboards that use the same code signing key. GD-192.

Resources:
Ryzen Embedded V3000 processors
Video: AMD Launches Ryzen Embedded V3000 Series
