RAIDON

Stardom Ubox and Ubox Mini M.2 NVMe Converter Supporting 1xM.2 NVMe SSD

To be installed and replaced to convert M.2 NVMe SSD to U.2 NVMe SSD

Stardom, a brand from RAIDON Technology Inc., announces Ubox and Ubox Mini M.2 NVMe converter that supports 1xM.2 NVMe SSD.

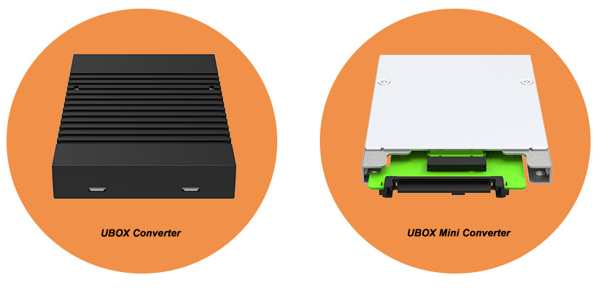

Stardom Ubox & Ubox Mini F1 2208

It is easy to be installed and replaced to convert M.2 NVMe SSD to U.2 NVMe SSD.

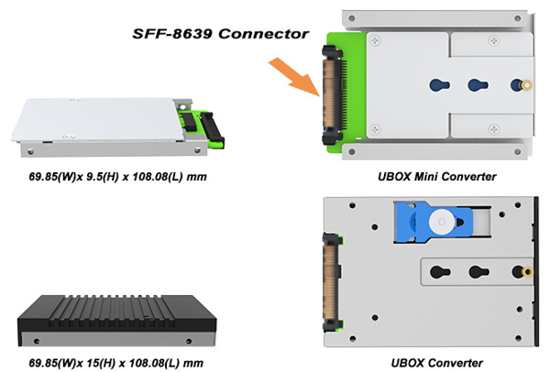

Stardom Ubox & Ubox Mini F2 2208

Ubox and Ubox Mini supports 1xM.2 NVMe SSD (2242/ 2260/2280) and the dimensions and screw holes conform to 2.5-inch 9.5mm SSD/HDD. Its size and dimensions are the same as the standard U.2 SSD.

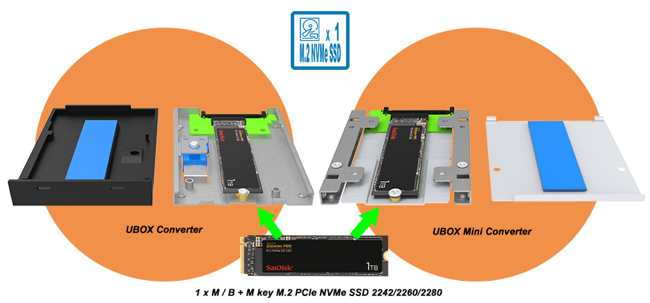

Stardom Ubox & Ubox Mini F3 2208

These converter are designed in sturdy aluminum housing and have the heat sink to protect and provide the heat dissipation for M.2 NVMe SSD. It is no need to install the driver, plug and play, and supports macOS, Windows and Linux.

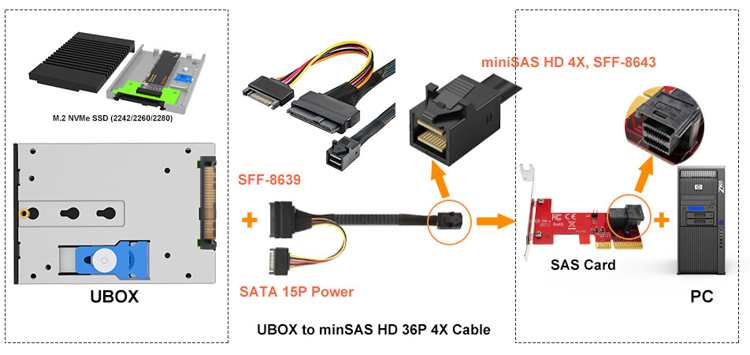

Stardom Ubox & Ubox Mini F4 2208

Ubox and Ubox Mini’s sizes are the same as U.2 SSD, so they can be used through suitable cards and cables to replace the existing U.2 SSD or form RAID.

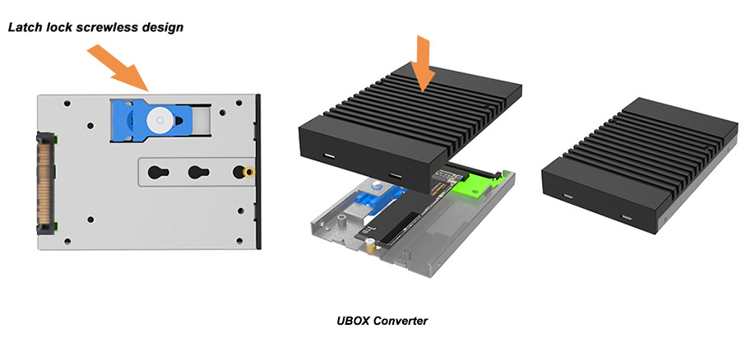

Stardom Ubox & Ubox Mini F5 2208Ubox Converter has latch lock design, can close or open the aluminum cover.

Features :
  • Supports 1xM.2 NVMe SSD (length 42 to 80mm) (2242/2260/2280)

  • Exact the same U.2 connector location and screw holes location as the standard U.2 SSD.

  • Dimensions and screw holes conform to 2.5-inch SSD/HDD.

  • Provides heat sink for M.2 NVMe SSD.

  • No need to install driver, plug and play.

  • Supports macOS, Windows, Linux

 Specs

Model ≠

UBOX

UBOX Mini

Interfaces

1xSFF-8639

1xSFF-8639

Compatible drives

1xM / B + M key M.2 PCIe NVMe SSD (2242/2260/2280)

1xM / B + M key M.2 PCIe NVMe SSD (2242/2260/2280)

Storage level

JBOD – Independent Mode

JBOD – Independent Mode

OS

Windows, macOS, Linux

Windows, macOS, Linux

Dimension

69.85(W)x 15(H) x 108.08(L) mm

69.85(W)x 9.5(H) x 108.08(L) mm
