HDD Life Expectancy

For the last several years, we have written about drive failure, or more specifically, the annualized failure rates for the HDDs and SSDs we use for our cloud storage platform. In this post, we’ll look at drive failure from a different angle: life expectancy.

By looking at life expectancy, we can answer the question, “How long is the drive I am buying today expected to last?” This line of thinking matches the way we buy many things. For example, knowing that a washing machine has an annualized failure rate of 4% is academically interesting, but what we really want to know is, “How long can I expect the washing machine to last before I need to replace it?”

Using the Drive Stats data we’ve collected since 2013, we have selected 10 drive models that have a sufficient number of both drives and drive days to produce Kaplan-Meier life expectancy curves we can use to easily visualize their life expectancy. Using these life expectancy curves we’ll compare drive models in cohorts of 4TB, 8TB, 12TB, and 14TB to see what we can find.

What Is a Kaplan-Meier Curve?
Kaplan-Meier curves are most often used in biological sciences to forecast life expectancy by measuring the fraction of subjects living for a certain amount of time after receiving treatment. That said: the application of the technique to other fields is not unusual.

Comparing 4TB Drives

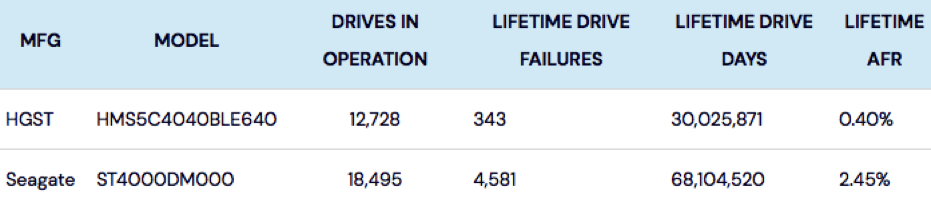

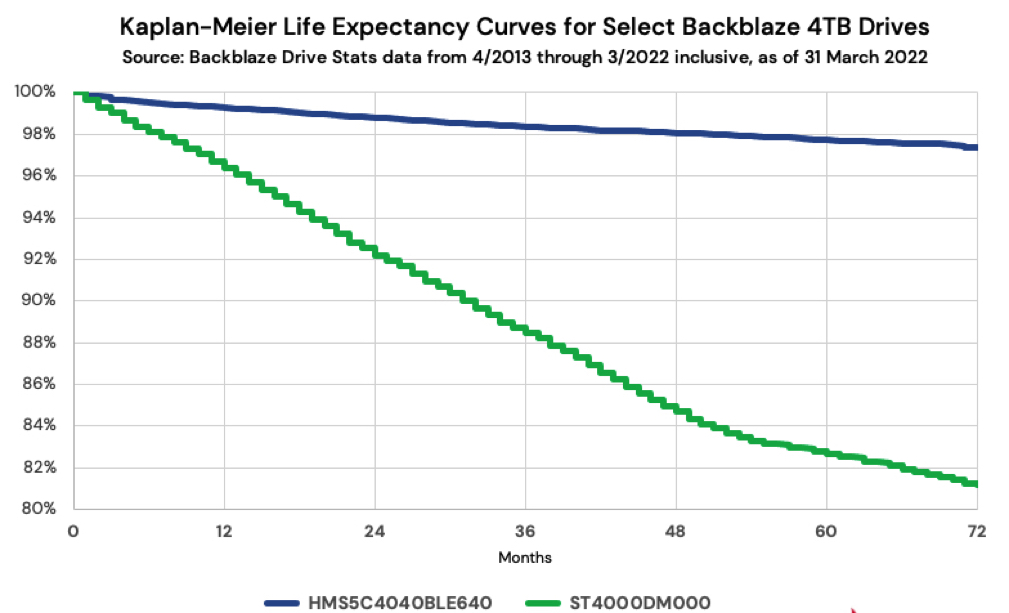

The two 4TB drive models we selected for comparison had the most 4TB drives in operation as of March 31, 2022. The Drive Stats for each drive model as of March 31, 2022 is shown below, followed by the Kaplan-Meier curve for each drive.

What Is the Graph Telling Us?

1. If you purchased an HGST drive at time zero, there is a 97% chance that drive would still be operational after six years (72 months).
2. If you purchased a Seagate drive at time zero, there is an 81% chance that drive would still be operational after six years.

Case closed-we were stupid to buy any Seagate 4TB drives, right? Not so fast, there are other factors at work here: cost, availability, time, and maintenance, to name a few. For example, suppose I told you that the HGST drive you wanted was 1.2 to 1.5x as expensive as the Seagate drive. In addition, the Seagate drive was readily available while the HGST drive was harder to get, and finally, at the time of purchase there was over an 80% chance that the Seagate drive would still be alive after six years. How does that change your perception?

In the case of buying 1 or 2 drives, you may find a single factor like, “how much do you have to spend” is the only thing that matters. In our case, these factors are intertwined. We explain some of the thinking behind our decision-making in our How Backblaze Buys HDDs post.

Was It Worth the Savings?
In the simple case, if the time and effort we spent replacing the failed Seagate drives was more than the savings, we failed. So, let’s do a little back-of-the-envelope math to see how we landed.

We replaced a little over 4,200 more Seagate drives over a 6-year period than HGST drives. That is 700 drives a year or about 2 Seagate drives per day we had to replace. That’s 30-40mn a day someone spent doing that task spread across multiple data centers. Yes, it’s work, but hardly something you would need to hire a person specifically to do.

Why Buy HGST Drives at All?
Fair question. At the time we were purchasing these Seagate and HGST drive models back in 2013 through 2015, there were no life expectancy curves and Drive Stats was just starting. We had anecdotal information that the HGST drives were better, but little else. In short, sometimes, the pricing and availability of the HGST was good enough so we bought them.

Comparing 8TB Drives

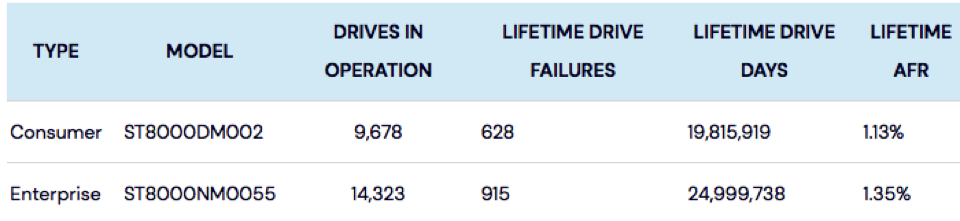

The two 8TB drives we’ve chosen to compare using life expectancy curves have done battle before. The 8TB Seagate model: ST8000DM002 is classified as a consumer drive, while the 8TB Seagate model: ST8000NM0055 is classified as an enterprise drive. Their lifetime annualized failure rates tell an interesting story. All data is as of March 31, 2022.

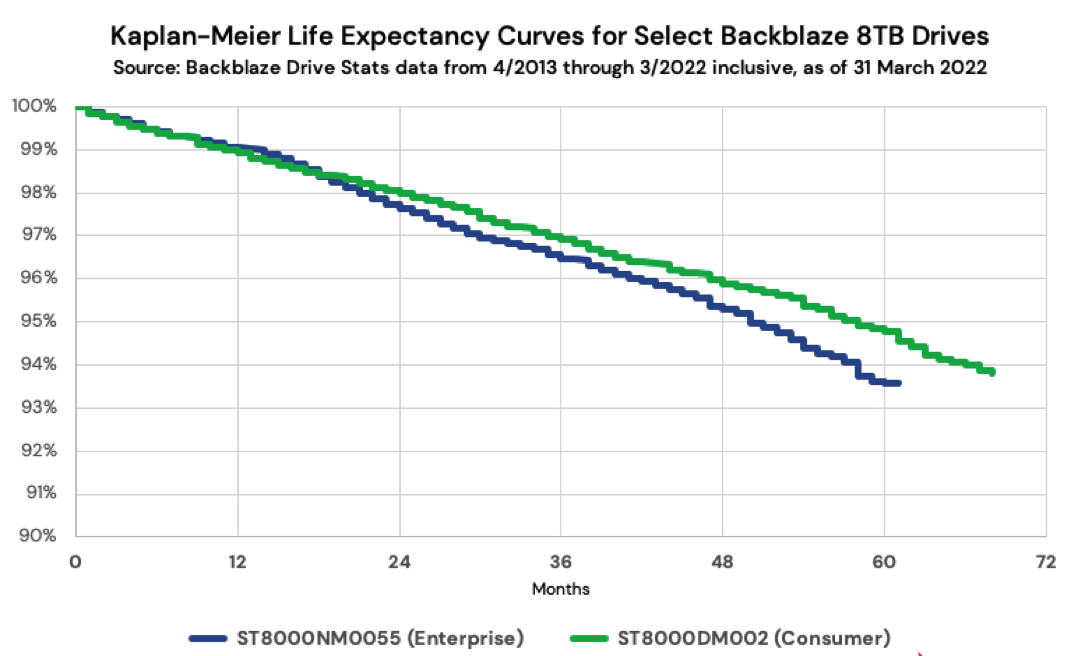

Let’s take a look at the life expectancy curves and see what else we can learn.

Observations
• If you purchased either drive, the life expectancy is nearly the same for early on, but starts to separate at about 2 years and the difference increases over the next 3 years.
• For the consumer model (ST8000DM002) you would expect nearly 95% of the drives to survive 5 years.
• For the enterprise model (ST8000NM0055) you would expect 93.6% of the drives to survive 5 years.

These results seem at odds with the warranties for each model. Consumer drives typically have 2-year warranties, while enterprise drives typically have 5-year warranties. Yet at 5 years, the consumer drives, in this case, are more likely to survive, and the trend starts at 2 years – the end of the typical consumer drive warranty period. It’s almost like we got the data backwards. We didn’t.

Even with this odd difference, both drives performed well. If you wanted to buy an 8TB drive and the salesperson said there would be a 93.6% chance the drive would last 5 years, well, that’s pretty good. Regardless of the failure rate or life expectancy, there are other reasons to purchase an enterprise drive, including the ability to tune the drive, tweak the firmware, or get a replacement via the warranty for 3 more years vs. the consumer drive. All are good reasons and may be worth the premium you will pay for an enterprise drive, but in this case at least, long live the consumer drive.

A Word About Drive Warranties
One of the advantages we get for buying drives in bulk from a manufacturer or one of their top tier resellers is that they will honor the warranty period ascribed to the drive. When you are buying from a retailer (typically an online retailer, but not always), you may find the warranty terms and conditions to be less straightforward.

Here are three common situations:
• The retailer purchases the drive or takes the drive on consignment from the manufacturer/distributor/reseller/etc., and that event triggers the start of the manufacturer warranty. When you buy the drive 6 months later, the warranty is no longer “X” years, but “X” years minus six months.
• The retailer replaces the warranty with their own time period. While this is usually done for refurbished drives, we have seen this done by online retailers for new drives as well. In one case we saw, the original 5-year warranty period was reduced to 1 year.
• The retailer is only a storefront while the actual seller is different. At that point, determining the warranty period and who services the drive can be, shall we say, challenging. Of course, you can always buy the add-on warranty that’s offered-it’s always nice to pay for something that was supposed to be included.

As a drive model gets older, these types of shenanigans are more likely to happen. For example, a given drive model gathers dust awaiting shipment while new models are coming to market at competitive prices. The multiple players on the path from a drive’s manufacture to its eventual sale are looking for ways to “move” these aging drives along that path. One option is to lower or eliminate the warranty period to help reduce the cost of the drive. The warranty becomes a casualty of the supply chain and you, as the last buyer, are left with the results.

Comparing 12TB Drives

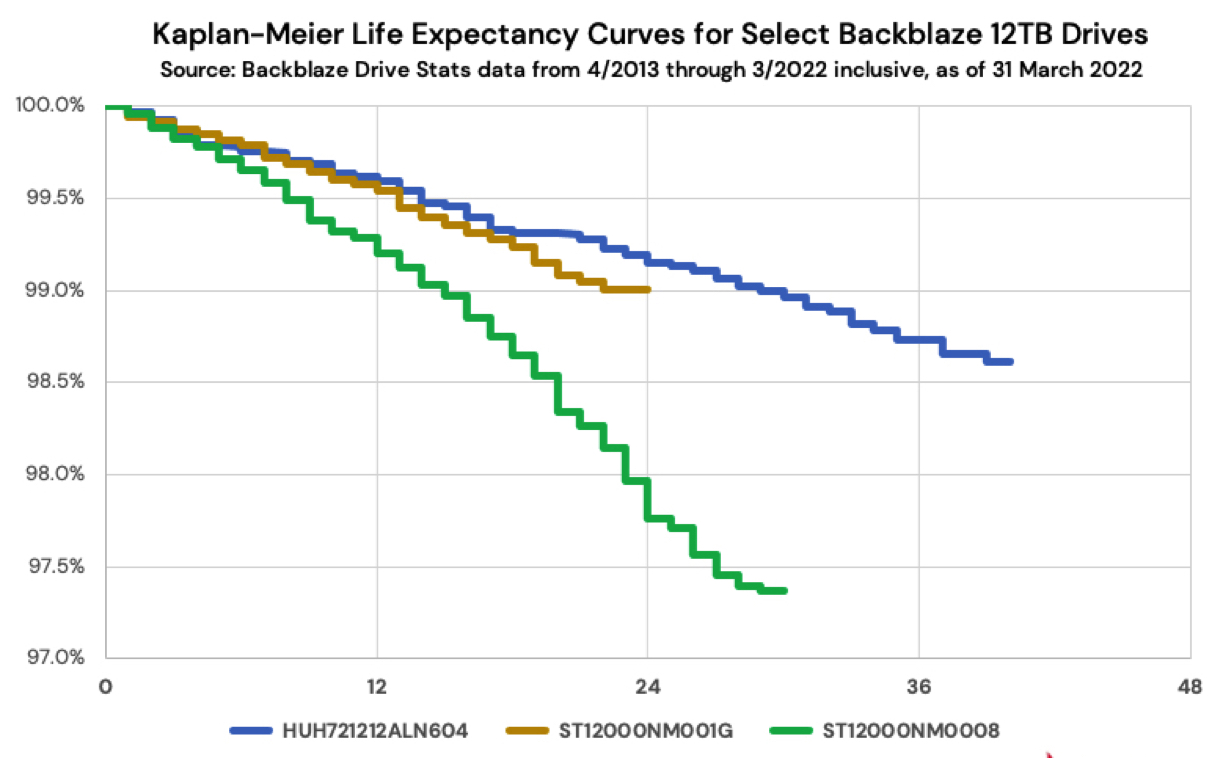

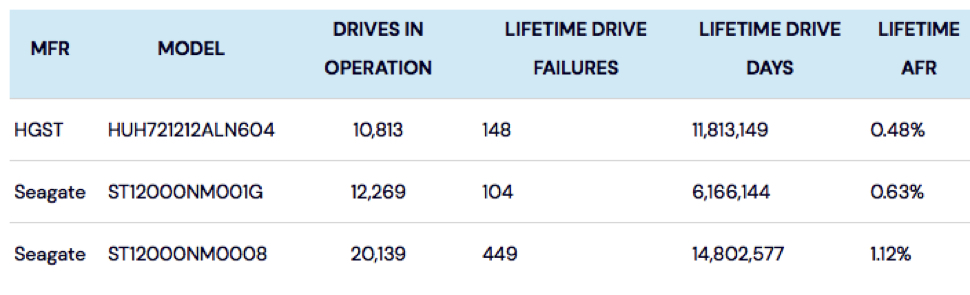

If you are serious about storing copious amounts of data, you’re probably looking at 12TB drives and higher. Your Plex media server or 8-bay NAS demands nothing less. To that end, we selected 3x12TB models for which we have at least 2 years worth of data to base our life expectancy curves upon. The Drive Stats data for these three drives is as of March 31, 2022.

Observations and Thoughts
For any of the 3 models, at least 98% of the drives are expected to survive 2 years. I suspect that most of us would take that bet. While none of us wants to own the one or 2 drives out of 100 that will fail in that 2 years period, we know there are no 100% guarantees when it comes to HDDs.

That brings us to asking: What is the cost of each drive, and would that affect the buying decision? As we’ve noted previously, we buy in bulk and the price we pay is probably not reflective of the price you may pay in the consumer market. To that end, below are the current prices, via the Amazon website, for the 3 drive models. We’ve assumed that these are new drives and they have the same warranty coverage of 5 years.
• HUH721212ALN604 – $413
• ST12000NM001G – $249
• ST12000NM0008 – $319

The Seagate model ST12000NM001G and the HGST model HUH721212ALN604 have about the same life expectancy after 2 years, but their price is different. Which one do you buy today? If you are expecting the drive to last (i.e., survive) 2 years, you would select the Seagate drive and save yourself $164, plus tax. Some of you will disagree, and given we know nothing beyond the 2-year point for the Seagate drive, you may be right. Time will tell.

One thing that may be perplexing here is why the Seagate model ST12000NM0008 is more expensive than the Seagate model ST12000NM001G even though the ST12000NM008 fails more often and has a lower life expectancy after 2 years? The reason is simple: Drive pricing is basically driven by supply and demand. We suspect that annualized failure rates and life expectancy curves are not part of the pricing math done by the various companies (manufacturers/distributors/resellers/etc.) along the supply chain.

By the way, if you purchase the 12TB HGST drive, it may say WD on the label. For the first couple of years when these drives were produced, they had HGST on the label, but that changed somewhere in the last couple of years. In either case, both “versions” report as HGST drives and have the same model number, HUH721212ALN604. The new WD label is part of the continuing rebranding effort being done by WDC to update the HGST assets they purchased a few years back.

Comparing 14TB Drives

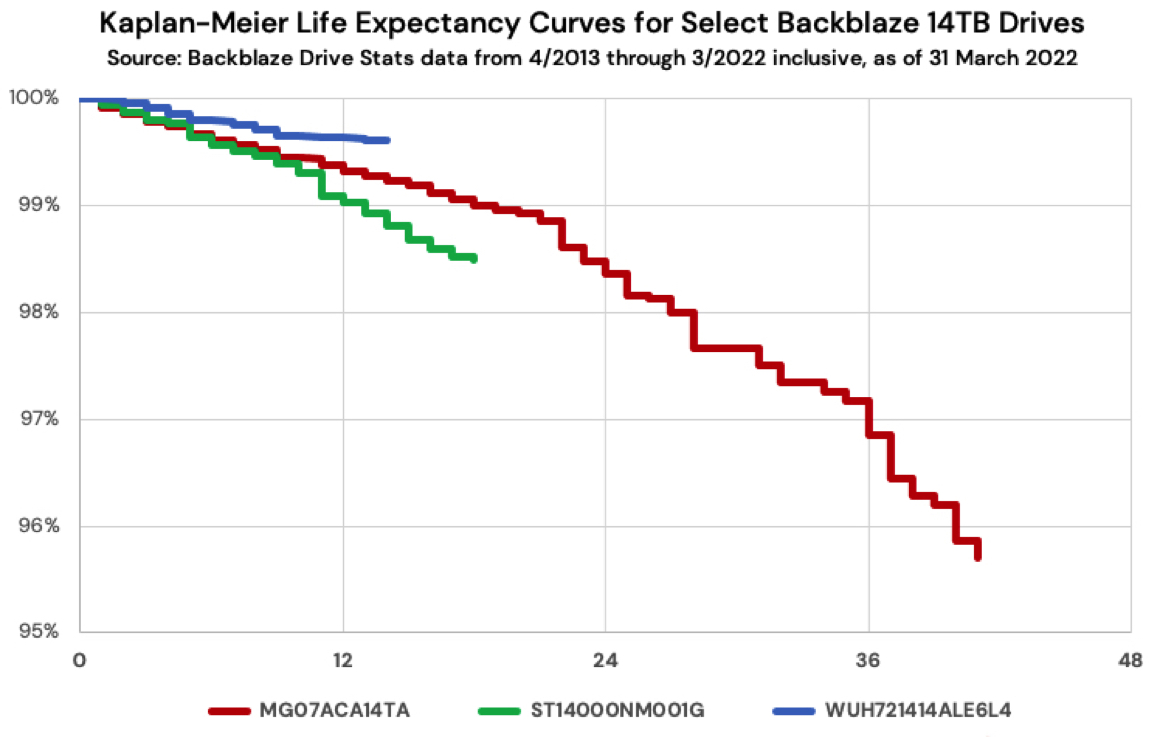

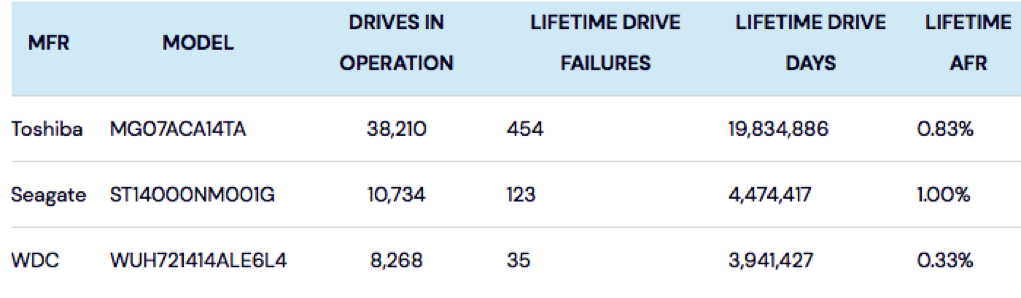

We will finish up our look at HDD life expectancy curves with 3 models from our collection of 14TB drives. While the data ranges from 14 to 41 months depending on the drive model, this is the one cohort where we have comparable data on drives from all 3 manufacturers: Seagate, Toshiba, and WD. The Drive Stats data is below, followed by the life expectancy curves for the same models.

Observations and Thoughts
All 3 drives have a life expectancy of 99% or more after 1 year. Previously, we examined the bathtub curve for drive failure and made the observation that the early mortality rate for HDDs, those that failed during their first year in operation, was now nearly the same as the random failure rate. That seems to be the case for this collection of drives as the observed early mortality effect is nominal.

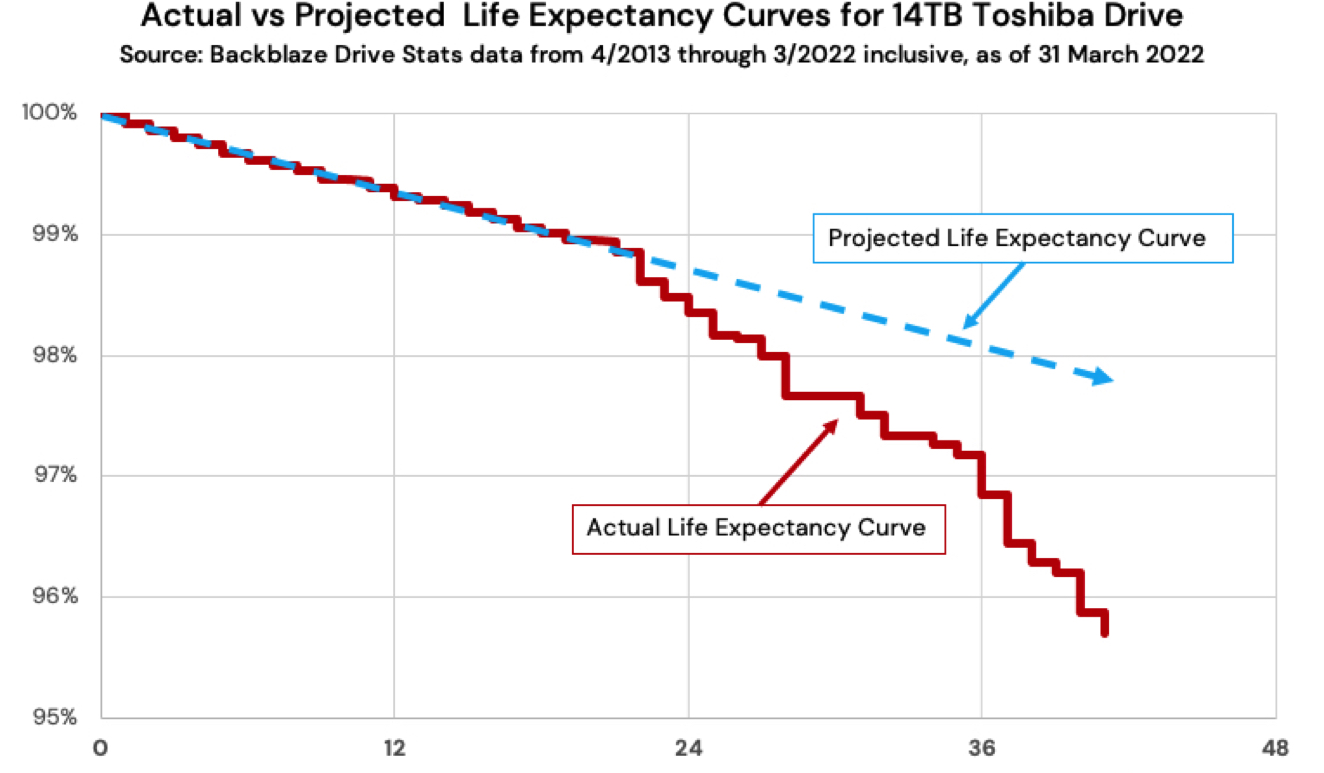

When considering the bathtub curve, the Toshiba model seems to be an outlier beginning at 22 months. At that point, the downward curvature in the line suggests an accelerating failure rate when the failure rate should be steady, as seen below.

The projected life expectancy curve line is derived by extending the random failure rate from the first 22 months. That said: 97% of the Toshiba drives survived for 3 years while the projected number was 98%, or simply put, the failure rate was one drive per hundred more over a 3-year period.
