Availability of Micron DDR5 Server DRAM to Data Center Customers in Advance of Next Gen Server Platforms

Summary:

• Improved memory architecture nearly doubles the bandwidth of DDR4⁽¹⁾ to increase efficiency as core-counts per CPU continue to expand

• Increased JEDEC speeds of 4800MT/s ⁽²⁾ – 1.5x faster than DDR4 ⁽³⁾


• Power memory intensive workloads with modules up to 64GB ⁽⁴⁾


• Optimization of overall system operations with DDR5’s architecture improvements and on-module power management capabilities

Micron Technology, Inc. announced commercial and industrial channel partner availability of DDR5 server DRAM in support of industry qualification of next-gen Intel Corp. and AMD ( Advanced Micro Devices, Inc.) DDR5 server and workstation platforms.

The move to DDR5 memory enables up to an 85% increase in system performance over DDR4 DRAM ⁽⁵⁾. The firm’s server DDR5 memory maximizes performance for AI, HPC and data-intensive applications that require more CPU compute capacity and higher memory bandwidth than DDR4 technology can support.

“As data continues to grow exponentially, the need to derive insights from that data is critical to business success,” said Teresa Kelley, VP and GM, commercial products group. “Data center operators need to maximize platform performance with advanced memory capabilities and processor advancements. Micron DDR5 server DRAM provides unparalleled bandwidth to manage even the most memory-intensive applications. Micron has been on the forefront of the industry’s transition to DDR5 memory technology and is committed to empowering data center customers and channel partners in their server DDR5 DRAM qualification and readiness efforts.”

As a global memory provider, the company has collaborated with JEDEC from the beginning to design DDR5 specifications and has facilitated early DDR5 qualification across broad markets through the firm’s DDR5 Technology Enablement Program (TEP), an ecosystem enablement program for DDR5. This DDR5 TEP has over 400 members from more than 160 global companies and aims to streamline DDR5 memory design and integration for its participants. Optimized for next gen product families, all the firm’s server DDR5 DRAM has been component and module tested to achieve mission-critical server standards.

DDR5-enabled servers are being evaluated and tested in data center environments and are expected to be adopted at an increasing rate throughout the remainder of 2022. The introductory data rate for DDR5 is 4800MT/s but is anticipated to increase to meet future data center workload demands.

The company’s DDR5 server memory is available through global commercial and industrial channel partners.

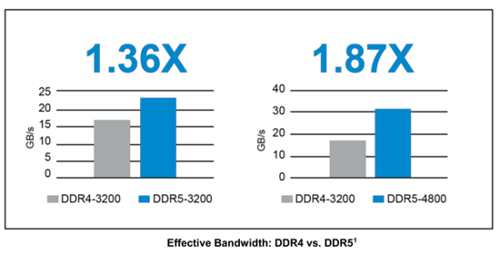

⁽¹⁾ DDR5 4800MT/s delivers an estimated 1.87x the bandwidth of DDR4 3,200MT/s modules.
⁽²⁾ Initial launch speeds start at 4,800MT/s, with 5,600 and 6,400 anticipated.
⁽³⁾ DDR5 launch speeds of 4800MT/s are 1.5x (50%) faster than DDR4 3,200MT/s modules.
⁽⁴⁾ Based on initial launch capacities using 16Gb die densities.
⁽⁵⁾ DDR5 4,800MT/s delivers an estimated 1.87x the bandwidth of DDR4 3,200MT/s modules.
