Solidigm D7-P5520 and D7-P5620 PCIe 4.0 SSDs for Data Center and Enterprise

Solidigm Technology is expanding its performance-optimized D7 product Series with 2 SSDs – the D7-P5520 and the D7-P5620 – for data center and enterprise use.

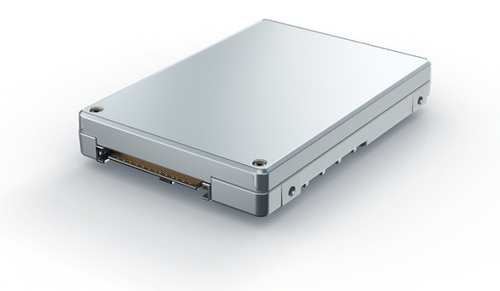

D7-P5520 U2 SSD

These drives are optimized for real-world compute and storage server workloads and are available in a range of form factors and capacities. They offer accelerated performance and reduced TCO by enabling a smaller storage footprint and lower power consumption.

The D7-P5520 (designed for read-intensive and light mixed workloads), and the D7-P5620 (designed for mixed workloads), are the first family of products being introduced by the company, which launched as a standalone company in December 2021.

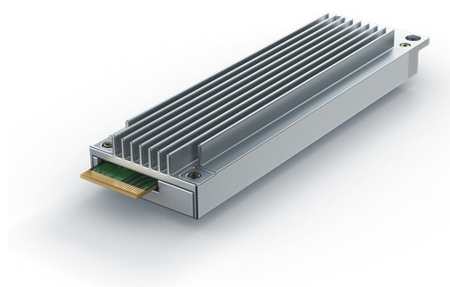

D7-P5520 E1.s SSD

The D7 Series comprises PCIe 4.0 SSD family of products given their capacity offerings, breadth of form factors and performance capabilities. These SSDs are optimized for real-world workloads and reflect insights gained from deep technical engagements with CSPs, OEMs, and storage innovators. Designed and tested with zero tolerance for data errors, consistently durable IO/s and QoS, and with near-zero lifetime performance degradation, they can be deployed with confidence.

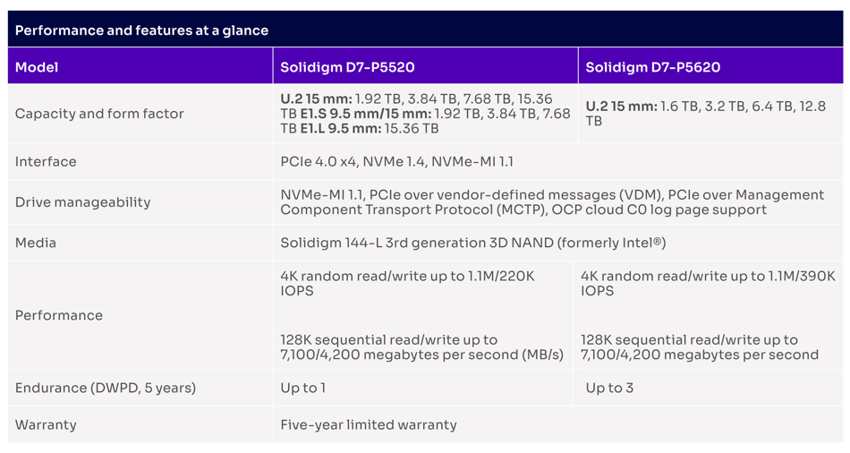

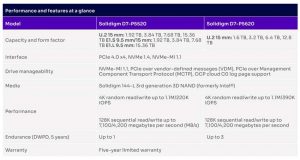

Click to enlarge

“Our deep technical engagements spanning all industry segments give us unique customer insights to optimize our products,” said David Dixon, SVP and GM, data center. “The D7-P5520 and the D7-P5620 are the culmination of these insights and of multiple 3D NAND and PCIe 4.0 generations, which enable us to deliver a best-in-class offering and a new paradigm in solid-state storage.”

ByteDance Ltd. partnered with the company early in product development and qualified the D7-P5520 with outstanding results before live deployment in March 2022. The drives are delivering a breadth of capacity and performance improvements over prior generations, which has allowed them to boost performance by 33% with TCO improvement for database and cloud software-defined storage. The D7-P5520 will also be used in ByteDance’s public cloud services platform Volcano Engine.

Benefits:

• Accelerated performance across range of workloads:

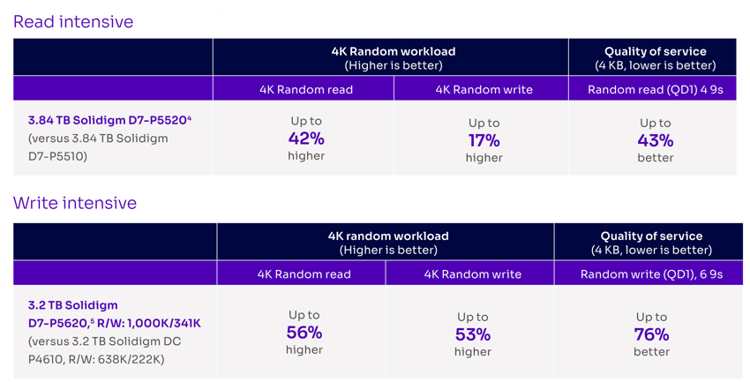

  • • D7-P5520: up to 42% higher 4K random reads, 17% higher 4K random writes, with up to 43% better latency generation to generation. It also delivers up to 40% better read responsiveness in the presence of write pressure as compared to the competition, a key consideration for real-world workloads.

    • D7-P5620: up to 56% 4K higher random reads, and up to 53% higher random writes, with up to 76% better latency generation to generation.

• TCO can be reduced through the combination of higher performance and expanded capacities. For example, OEMs designing for a 10 million IO/s 2U server can reduce the storage footprint up to 27% while reducing power consumption up to 20% generation over generation.

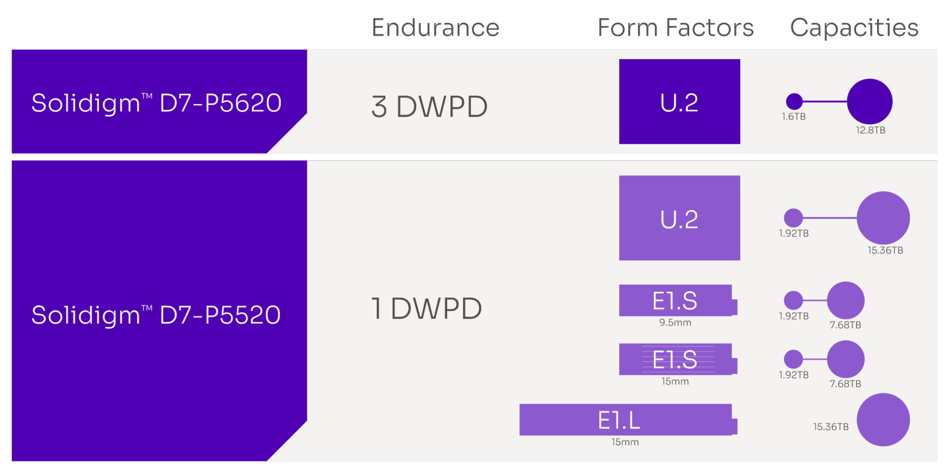

• D7 Series can be used in array of storage configurations, including 1U and 2U tiered and monolithic configurations in compute and storage servers. The drives are available with extended capacity ranges and in multiple form factors, including E1.L and multiple E1.S offerings.

• Qualifications can be streamlined since D7-P5520 and D7-P5620 family of products share common NAND, firmware, and controllers across SKUs.

• Quality and reliability are designed into these drives. For example, extra firmware checks are added to validate that data was saved accurately in the event of power loss. Additionally, the drives have been tested beyond industry specs and common industry practices.
