TerraMaster F2-423 2-Bay and F4-423 4-Bay Desktop NAS With Celeron Quad-Core Processor and 2×2.5 GbE Interfaces

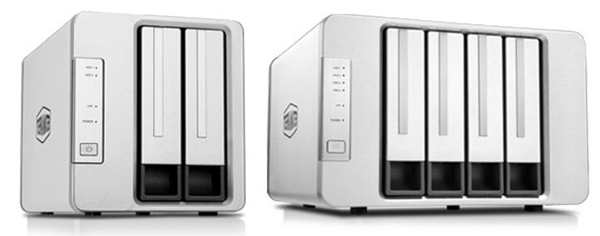

TerraMaster Technology Co. Ltd. introduces the F2-423 2-bay and F4-423 4-bay desktop NAS.

The products are designed for SMBs. Both deliver performance with its quad-core processor and larger memory support compared to the previous generation F2-422 and F4-422 NAS.

They are equipped with an Celeron N5105/N5095 quad-core processor with a maximum burst frequency of 2.9GHz. Both are equipped with 4GB DDR4 SODIMM memory, expandable up to 32GB memory (2x16GB). These NAS supports 20TB HDDs, supporting up to 40TB (2x20TB) and 80TB (4x20TB) of maximum internal raw storage capacity respectively. Both units also comes with 2xM.2 NVMe PCIe 3.0 slots that support NVMe SSDs for SSD caching or for M.2 Wi-Fi modules.

Made faster and better

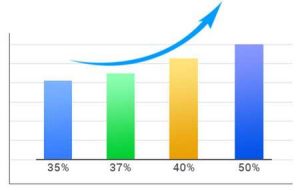

The F2-423 and F4-423 uses a Jasper Lake Celeron N5105/5095 2.0GHz quad-core processor at maximum turbo of 2.9GHz. Compared to the previous gen models, they deliver 50% improvement in handling high-load workflows, 37% faster file and photo retrieval, 35% improvement in database response time, and 40% faster webpage PHP response speeds.

Dual 2.5GbE NICs

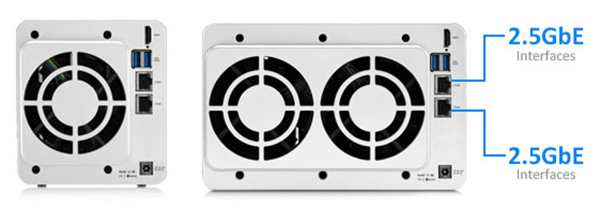

These NAS are configured with 2×2.5 GbE interfaces and supports Link Aggregation of up to 5Gb/s of combined bandwidth, for multi-user, high-concurrent file access. The linear data transmission speed can reach 283MB/s (Seagate IronWolf 18TB, RAID-0).

Multimedia Service
With 4K video decoding capability, the F2-423 and F4-423 are compatible with uPnP/DLNA protocol for streaming videos to various supported multimedia devices. They support the company’s proprietary application Multimedia Server and most third-party multimedia applications.

Flexible storage configuration
The F2-423 and F4-423 support various RAID types. They offer online capacity expansion and online migration for RAID types. Both also supports multiple storage spaces, and ext4 or BTRFS file systems.

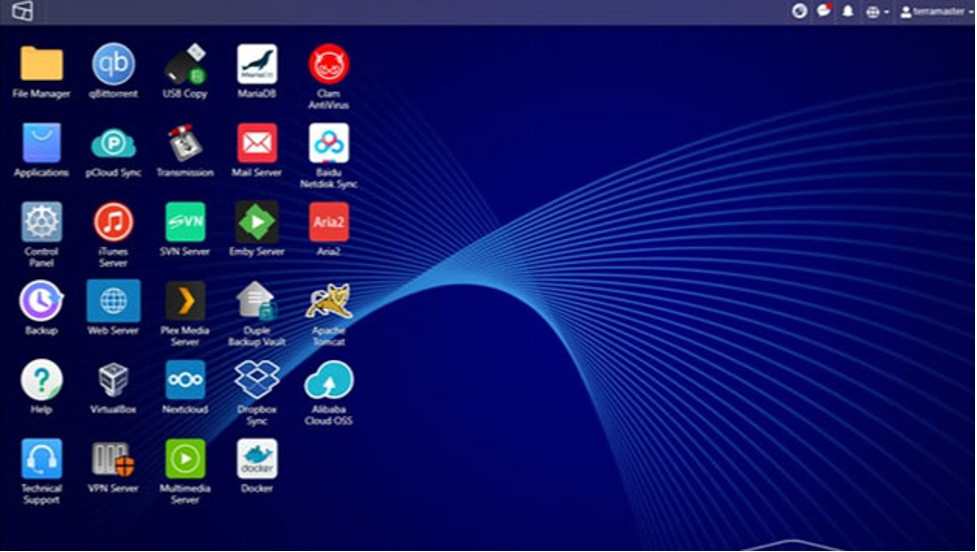

TOS 4.2.30 screenshot

Professional OS
These NAS runs on the TOS 4.2.30, an OS developed based on Linux. Both TNAS devices supports the latest TOS 5 which can be updated for free. TOS provides professional storage management functions including network management, permission management, storage management, and resource. Numerous apps are also available on the TOS App Store.

Across-platform file services
F2-423 and F4-423 support file services including SMB, AFP, SFTP/FTP, iSCSI, NFS, and WebDAV. Moreover, the F4-423 supports Windows AD domain and LDAP.

Backup solutions
Like all of the firm’s NAS devices, the F2-423 and F4-423 have a selection of backup solutions. Both TNAS support centralized backup, duple backup, snapshot, cloudSync and others.

Virtualized applications
These NAS can be used for virtualization applications with its support for professional virtualized apps, including VirtualBox and Docker.<

The F2-423 and F4-423 are available for $379.99 and $499.99, respectively.
