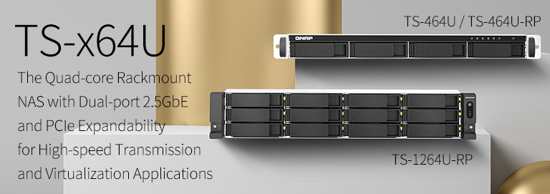

Qnap TS-464U-4G/TS-464U-RP-4G 1U 4-Bay and TS-1264U-RP-4G 2U 12-Bay Rackmount NAS

Qnap Systems, Inc. launched the TS-x64U NAS (including 4 and 12-bay models).

Supporting PCIe Gen 3 expandability, 2.5GbE connectivity and 4K HDMI output, the TS-x64U enables installing a QM2 card for M.2 SSD caching or Edge TPU for AI image recognition, and also VM display and smooth multimedia streaming.

“The TS-x64U NAS series adds high flexibility to IT network infrastructure deployment with high performance, high-speed I/O ports and high expandability. Offering versatile business applications, the TS-x64U meets requirements for optimized storage, backup, sharing, DR and hybrid cloud,” said Jason Hsu, product manage.

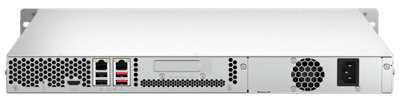

TS-464U-4G front and rear

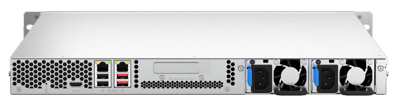

TS-464U-RP-4G with redundant power supplies rear

The TS-x64U is powered by a Celeron N5105/N5095 quad-core 4-thread processor (burst up to 2.9GHz) with Intel AES-NI encryption engine and 4GB DDR4 memory (upgradable to 16GB dual channel). It has a PCIe Gen 3 slot allowing installing a 10GbE network card, a QM2 card for NVMe SSD caching or Qtier, or a Coral M.2 Accelerator for AI image recognition. The TS-x64U has 2x 2.5GbE ports, 2xUSB 2.0 (480Mb) and 2xUSB 3.2 Gen 2 (10Gb/s) ports that provide faster data transfer and backup. Its storage capacity can be expanded by connecting TL and TR storage expansion enclosures.

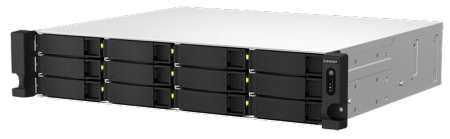

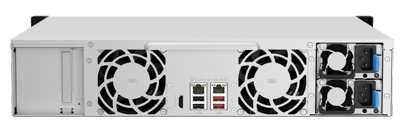

TS-1264U-RP-4G front and rear

The TS-x64U adopts the QTS 5.0 OS, and includes NAS home/business applications: HBS (Hybrid Backup Sync) realizes efficient local/remote/cloud backup jobs; Block-based snapshots make data protection and recovery easier and effectively mitigate the threats of ransomware; HybridMount provides cloud storage gateways that integrate private and public cloud storage and enable local caching; Virtualization Station and Container Station enables light virtualization applications; QVR Elite helps deploy a cutting-edge smart surveillance system; and KoiMeeter provides a complete cross-platform video meeting and wireless presentation solution. Home users will also enjoy the range of multimedia applications (including Plex), streaming capabilities, and a built-in HDMI port, which allows them to enjoy their multimedia on their device of choice.

Key specs:

TS-464U-4G: 1U, 4×3.5-inch 6Gb SATA drive bays, 4GB DDR4 memory
TS-464U-RP-4G: 1U, 4×3.5-inch 6Gb SATA drive bays, 4GB DDR4 memory, redundant power supplies
TS-1264U-RP-4G: 2U, 12×3.5-inch 6Gb SATA drive bays, 4GB DDR4 memory, redundant power supplies

Celeron N5105/N5095 quad-core processor (burst up to 2.9GHz); 4GB DDR4 dual-channel memory (supports up to 16GB); hot-swappable 2.5/3.5-inch 6Gb SATA HDD/SSD; 2×2.5GbE RJ45 port, 1xPCIe Gen3 x 2 slot; 1xHDMI 1.4b 4K output; 2xUSB 3.2 Gen2 ports, 1xUSB 2.0 port.
