Icy Dock CP090 2-Bay M.2 SATA SSD RAID Mobile Rack

For external 3.5-inch drive bay

Icy Dock introduces the CP090 2-bay M.2 SATA SSD RAID mobile rack for external 3.5-inch drive bay.

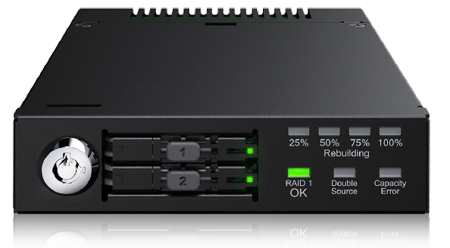

Icy Dock Cp090 2

Introducing the CP090, a removable 2xM.2 SATA SSD RAID enclosure for a single 3.5-inch floppy drive bay. The enclosure is equipped with hardware RAID-1/JBOD function while allowing frontal drive access without opening the computer case.

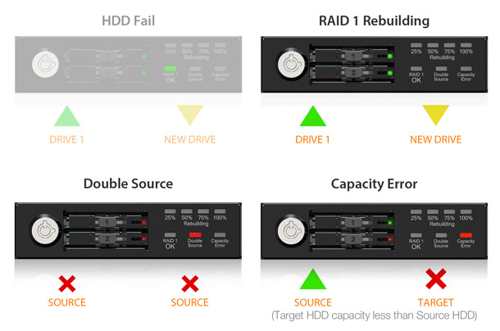

Icy Dock Cp090 Scheme2

With the built-in RAID-1 mode, you can add the RAID-1 array to any system without needing a RAID controller card. The CP090 mirrors 2xM.2 SATA SSD in RAID-1 mode for data redundancy in case of single drive failure. If you need to clear the existing RAID-1 array within the drives, toggle the RAID mode switch to JBOD to erase the RAID table and data and access the individual drive. In addition, the RAID status LED indicators allow users to monitor the current drive status at a glance without using RAID monitoring software.

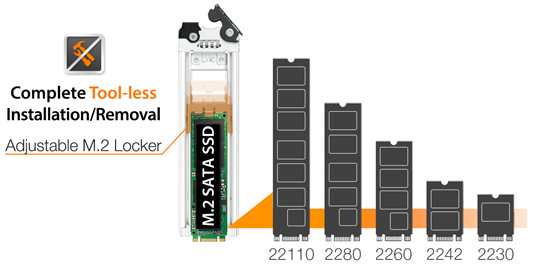

Icy Dock Cp090 Cp090 Tool Less

The CP090 includes a patent-pending M.2 adjustable locker removable drive tray that features tool-less drive installation/removal. In addition, it supports all M.2 SATA drive lengths ranging from 30-110mm.

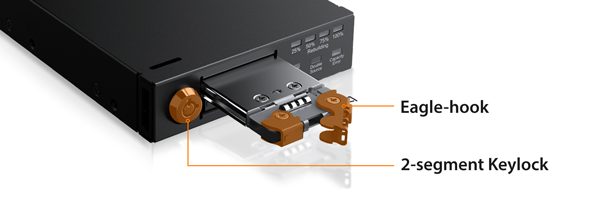

Icy Dock Cp090 5

For an additional layer of security, the 2-segment keylock can be used to protect vs. unwanted access and secure drives in rugged environments.

Key features:

  • Supports 2xM.2 SATA SSD ranging from 2230/2242/2260/2280/22110 length

  • Installs into any standard external 3.5-inch drive bay

  • Built-in hardware RAID-1 mirroring (SAFE) chipset and RAID mode switch

  • Supports up to 6Gb/s data transfer speeds

  • Easy to read RAID status LED indicators for drive power, access, fail, and RAID-1 rebuilding process

  • Removable drive tray with tool-less drive installation design for easy drive maintenance

  • Ruggedized design is capable of holding up in harsh environments

  • EMI Grounding – Protects SSDs from electrical damage

  • Includes thermal pad that conducts the heat from the drive to the heatsink tray

  • Active Power Technology (APT) saves power by shutting the device down when no drive is installed

  • Eagle hook latch securely holds the tray inside of the enclosure

  • Supports SATA data and power cables with locking latches

  • 3-year warranty with customer support.

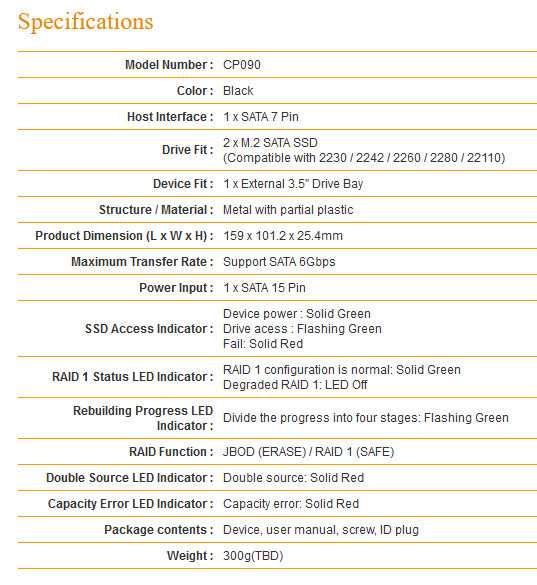

Icy Dock Cp090 Secptabl
