Five Among 191,212 HDDs With Only One Failure During 3Q21 at Backblaze

HGST 12TB, Seagate 6TB, Toshiba 4TB and 14TB, WDC 16TB

KleinThis blog was authored by Andy Klein, principal storage cloud evangelist, Backblaze, Inc., and published on November 2, 2021.







Backblaze Drive Stats for 3Q21

As of September 30, 2021, Backblaze had 194,749 drives spread across four data centers on 2 continents.

Of that number, there were 3,537 boot drives and 191,212 data drives. The boot drives consisted of 1,557 HDDs and 1,980 SSDs. This report will review the quarterly and lifetime failure rates for our data drives, as well as compare failure rates for our SSD and HDD boot drives.

3Q21 HDD Failure Rates
At the end of September 2021, the firm was monitoring 191,212 HDDs used to store data. For this evaluation, it removed from consideration 386 drives which were used for either testing purposes or were drive models for which we did not have at least 60 drives. This leaves us with 190,826 HDDs for the 3Q21 quarterly report, as shown below.

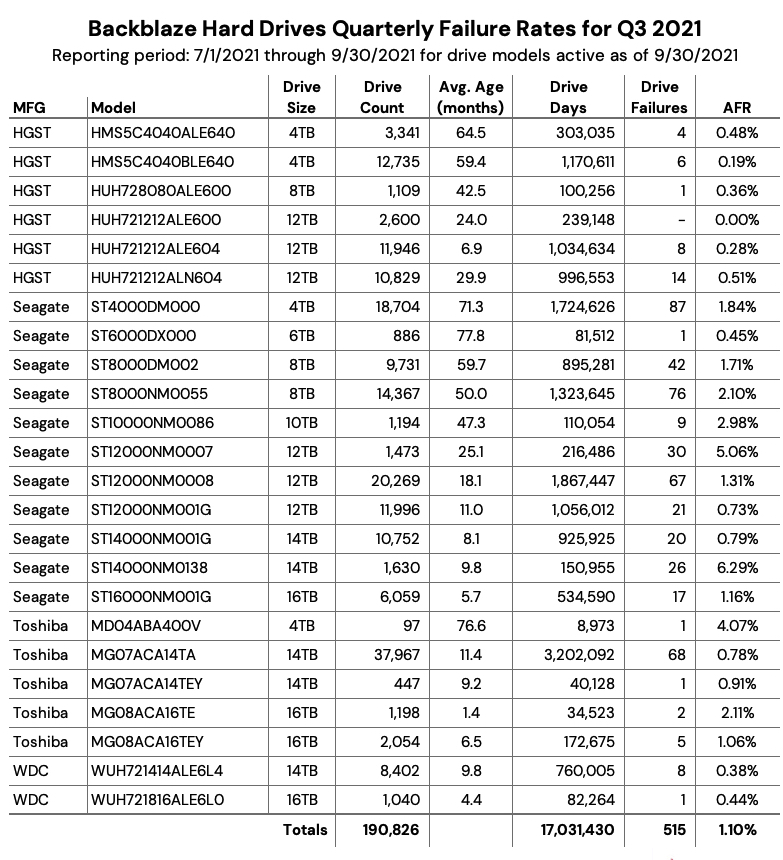

Backblaze Drive Stats 3q21 F1

Notes and Observations on Stats
The data for all of the drives in the data centers, including the 386 drives not included in the list above, is available for download on the HDD Test Data webpagehttps://www.backblaze.com/b2/hard-drive-test-data.html.

Zero Failures
The only drive model that recorded zero failures during 2Q21 was the HGST 12TB drive (model: HUH721212ALE600) which is used in Dell storage servers in firm’s Amsterdam data centerhttps://www.backblaze.com/blog/next-backblaze-storage-pod/.

Honorable Mentions
Five drive models recorded one drive failure during the quarter:
• HGST 12TB drive (model: HUH728080ALE600).
• Seagate 6TB drive (model: ST6000DX000).
• Toshiba 4TB drive (model: MD04ABA400V).
• Toshiba 14TB drive (model: MG07ACA14TEY).
• WDC 16TB drive (model: WUH721816ALE6L0).

While one failure is good, the number of drive days for each of these drives is 100,256 or less for the quarter. This leads to a wide confidence interval for the annualized failure rate (AFR) for these drives. Still, kudos to the Seagate 6TB drives (average age 77.8 months) and Toshiba 4TB drives (average age 75.6 months) as they have been good for a long time.

What’s New
We added a new Toshiba 16TB drive this quarter (model: MG08ACA16TE). There were a couple of early drive failures, but they’ve only been installed a little over a month. This drive is similar to model MG08ACA16TEY, with the difference purportedly being the latter having the Sanitize Instant Erase (SIE) feature, which shouldn’t be in play in compan’s environment. It will be interesting to see how they compare over time.

Outliers
There are 2 drives in the quarterly results which require additional information beyond the raw numbers presented.

Let’s start with the Seagate 12TB drive (model: ST12000NM0007). Back in January of 2020, we noted that these drives were not working optimally in our environment and higher failure rates were predicted. Together with Seagate, we decided to remove these drives from service over the coming months. Covid-19 delayed the project some and the results are the predicted higher failure rates. We expect all of the remaining drives to be removed during 4Q21.

The second outlier is the Seagate 14TB drive (model: ST14000NM0138). As noted in the Q21 Drive Stats report, these drives, while manufactured by Seagate, were provisioned in Dell storage servers. As noted, both Seagate and Dell were looking into the possible causes for the unexpected failure rate. The limited number of failures, 26 this quarter, have made failure analysis challenging. As we learn more, we will let you know.

HDDs vs. SSDs
As a reminder, we use both SSDs and HDDs as boot drives in our storage servers. The workload for a boot drive includes regular reading, writing, and deleting of files (log files typically) along with booting the server when needed. In short, the workload for each type of drive is similar.

In our recent post, Are SSDs Really More Reliable Than HDDs? we compared the failure rates of our HDD and SSD boot drives using data through 2Q21. In that post, we found that if we controlled for the average age and drive days for each cohort, we were able to compare failure rates over time.

We’ll continue that comparison, and we have updated the chart below through 3Q21 to reflect the latest data.

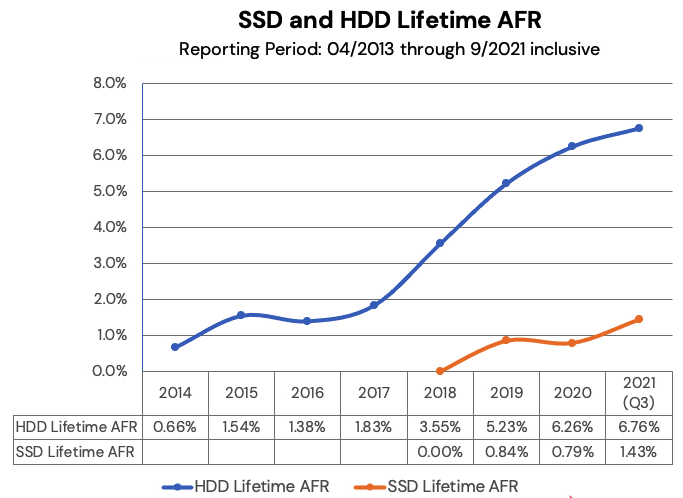

Backblaze Drive Stats 3q21 F2

The first 4 points of each drive type create lines that are very similar, albeit the SSD failures rates are slightly lower. The HDD failure rates began to spike in year five (2018) as the HDD drive fleet started to age. Given what we know about drive failure over timehttps://www.backblaze.com/blog/drive-failure-over-time-the-bathtub-curve-is-leaking, it is reasonable to assume that the failure rates of the SSDs will rise as they get older. The question to answer is: will it be higher, lower, or the same? Stay tuned.

Storage Changes
Over the last year, we’ve added 40,129 new HDDs. Actually, we installed 67,990 new drives and removed 27,861 old drives. The removed drives included failed drives (1,674) and migrations (26,187). That works out to installing about 187 drives a day, which over the course of the last year, totaled just over 600PB of new storage.

The following chart breaks down the efforts of our intrepid data center teams.

Backblaze Drive Stats 3q21 F3

Lifetime HDD Stats
The chart below shows the lifetime AFRs of all the HDD models in production as of September 30, 2021.

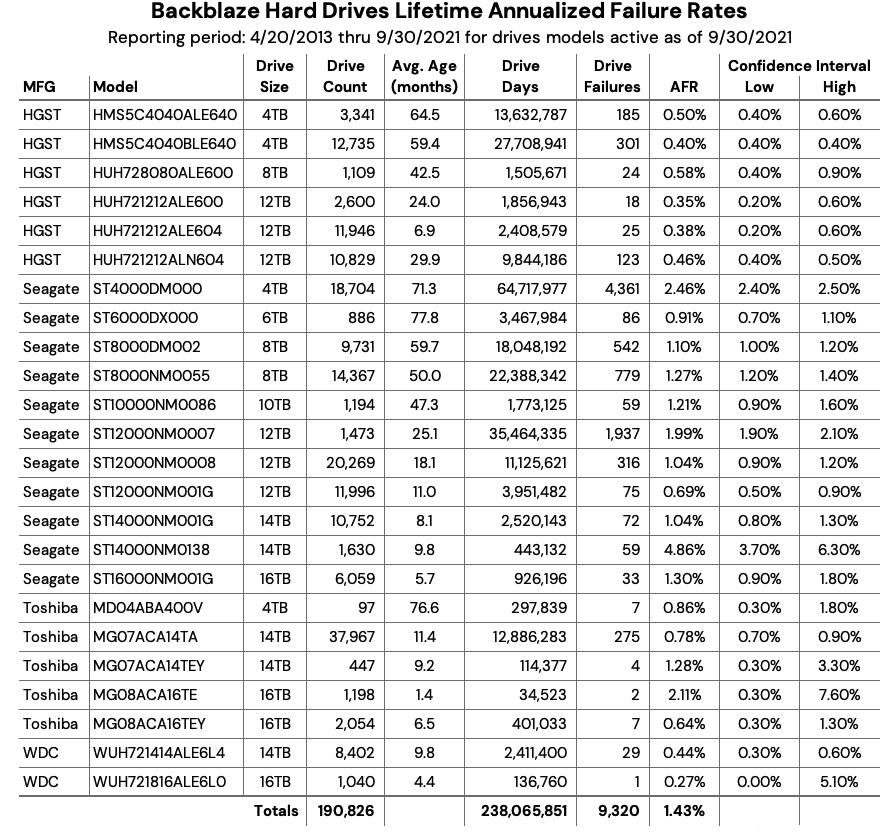

Backblaze Drive Stats 3q21 F4

Notes and Observations on Lifetime Stats
The lifetime AFR for all of the drives in our farm continues to decrease. The 1.43% AFR is the lowest recorded value since we started back in 2013. The drive population spans drive models from 4TB to 16TB and varies in average age from 1 month (Toshiba 16TB) to over 6 years (Seagate 6TB).

Our best performing drive models in our environment by drive size are listed in the table below:

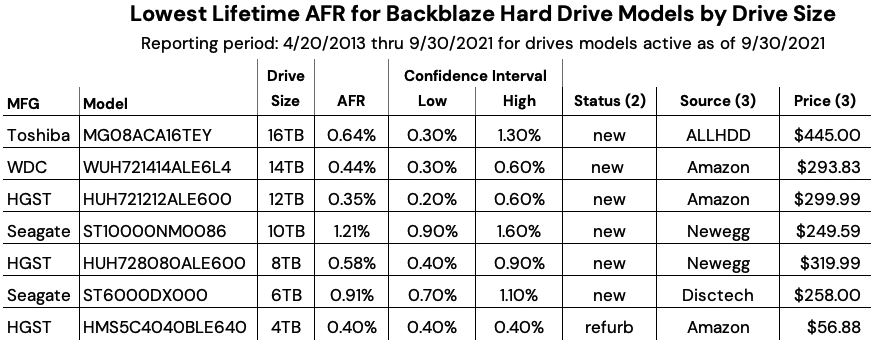

Backblaze Drive Stats 3q21 F5

Notes:
1 The WDC 16TB drive (model: WUH721816ALE6L0) does not appear to be available in the US through retail channels. It is available in Europe for €549.
2 Status is based on what is stated on the website. Further investigation may be required to ensure you are purchasing a new drive vs. a refurbished drive marked as new.
3 The source and price columns were as of October 23, 2021.

If you just want the summarized data used to create the tables and charts in this blog post, you can download the ZIP file containing the Excel XLXS files for each chart.
