Stanford Discovery Could Pave Way to Fast, Energy-Efficient Computing

By Mark Shwartz, communications/writer, Precourt Institute for Energy, Stanford University

Scientists have spent decades searching for faster, more energy-efficient memory technologies for everything from large data centers to mobile sensors and other flexible electronics.

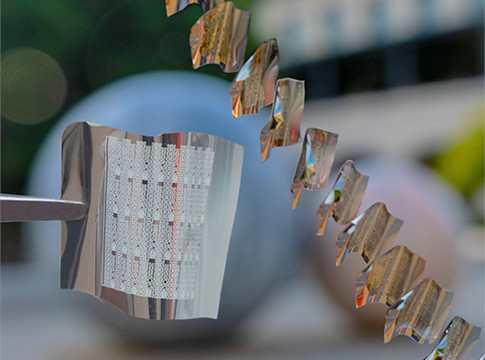

Fexible phase-change memory substrate held by tweezers (left) with diagonal
sequence showing substrates in process of being bent.
(Credit: Crystal Nattoo)

Among the most promising data storage technologies is phase-change memory, which is thousands of times faster than conventional hard drives but is not the most energy-efficient among emerging memory types.

Now, Stanford University engineers have overcome a key obstacle that has limited widespread adoption of phase-change memory. The results are published in a September 10 study in Science.

“People have long expected phase-change memory to replace much of the memory in our phones and laptops,” said Eric Pop, professor of electrical engineering, and senior author of the study. “One reason it hasn’t been adopted is that it requires more power to operate than competing memory technologies. In our study, we’ve shown that phase-change memory can be both fast and energy efficient.”

Electrical resistance
Unlike conventional memory chips built with transistors and other hardware, a typical phase-change memory device consists of a compound of three chemical elements – germanium, antimony and tellurium (GST) – sandwiched between two metal electrodes.

Conventional devices, like flash drives, store data by switching the flow of electrons on and off, a process symbolized by 1’s and 0’s. In phase-change memory, the 1’s and 0’s represent measurements of electrical resistance in the GST material – how much it resists the flow of electricity.

“A typical phase-change memory device can store two states of resistance: a high-resistance state 0, and a low-resistance state 1,” said Asir Intisar Khan, doctoral candidate, co-lead author of the study. “We can switch from 1 to 0 and back again in nanoseconds using heat from electrical pulses generated by the electrodes.”

Heating to about 300°F (150°C) turns the GST compound into a crystalline state with low electrical resistance. At about 1,100°F (600°C), the crystalline atoms become disordered, turning a portion of the compound to an amorphous state with much higher resistance. The large difference in resistance between the amorphous and crystalline states is used to program memory and store data.

“This large resistance change is reversible and can be induced by switching the electrical pulses on and off,” said Khan. “You can come back years later and read the memory just by reading the resistance of each bit,” Pop said. “Also, once the memory is set it doesn’t use any power, similar to a flash drive.”

‘Secret sauce’
But switching between states typically requires a lot of power, which could reduce battery life in mobile electronics.

To address this challenge, the Stanford team set out to design a phase-change memory cell that operates with low power and can be embedded on flexible plastic substrates commonly used in bendable smartphones, wearable body sensors and other battery-operated mobile electronics.

“These devices require low cost and low energy consumption for the system to work efficiently,” said Alwin Daus, postdoctoral scholar, co-lead author. “But many flexible substrates lose their shape or even melt at around 390°F (200°C) and above.”

In the study, Daus and his colleagues discovered that a plastic substrate with low thermal conductivity can help reduce current flow in the memory cell, allowing it to operate efficiently.

“Our new device lowered the programming current density by a factor of 10 on a flexible substrate and by a factor of 100 on rigid silicon,” Pop said. “Three ingredients went into our secret sauce: a superlattice consisting of nanosized layers of the memory material, a pore cell – a nanosized hole into which we stuffed the superlattice layers – and a thermally insulating flexible substrate. Together, they significantly improved energy efficiency.”

Ultrafast, flexible computing
The ability to install fast, energy-efficient memory on mobile and flexible devices could enable a wide range of new technologies, such as real-time sensors for smart homes and biomedical monitors.

“Sensors have high constraints on battery lifetime, and collecting raw data to send to the cloud is very inefficient,” Daus said. “If you can process the data locally, which requires memory, it would be very helpful for implementing the IoT.”

Phase-change memory could also usher in a new generation of ultrafast computing.

“Today’s computers have separate chips for computing and memory,” Khan said. “They compute data in one place and store it in another. The data have to travel back and forth, which is highly energy inefficient.”

Phase-change memory could enable in-memory computing, which bridges the gap between computing and memory. In-memory computing would require a phase-change device with multiple resistance states, each capable of storing memory.

“Typical phase-change memory has two resistant states, high and low,” Khan said. “We programmed four stable resistance states, not just two, an important first step towards flexible in-memory computing.”

Phase-change memory could also be used in large data centers, where data storage accounts for about 15 percent of electricity consumption.

“The big appeal of phase-change memory is speed, but energy-efficiency in electronics also matters,” Pop said. “It’s not just an afterthought. Anything we can do to make lower-power electronics and extend battery life will have a tremendous impact.”

Other Stanford co-authors are former postdoctoral scholar Raisul Islam, doctoral candidate Kathryn Neilson, research scientist Hye Ryoung Lee, and H.-S. Philip Wong, the Willard R. & Inez Kerr Bell Professor in the School of Engineering. Wong and Eric Pop are also affiliated faculty members at the Stanford Precourt Institute for Energy.

Funding for this research was provided by member companies of the Stanford Non-volatile Memory Technology Research Initiative (NMTRI), the Stanford Graduate Fellowship program, the Swiss National Science Foundation’s Early Postdoc Mobility Fellowship and the Beijing Institute of Collaborative Innovation.

Article : Ultralow–switching current density multilevel phase-change memory on a flexible substrate

Science Magazine has published an article written by Asir Intisar Khan, Alwin Daus, Raisul Islam, Kathryn M. Neilson, Department of Electrical Engineering, Stanford University, Stanford, CA 94305, USA, Hye Ryoung Lee, Department of Electrical Engineering, Stanford University, Stanford, CA 94305, USA, and Department of Materials Science and Engineering, Stanford University, Stanford, CA 94305 USA, H.-S. Philip Wong, Department of Electrical Engineering, Stanford University, Stanford, CA 94305, USA, and Eric Pop, Department of Electrical Engineering, Stanford University, Stanford, CA 94305, USA, Department of Materials Science and Engineering, Stanford University, Stanford, CA 94305 USA, and Precourt Institute for Energy, Stanford University, Stanford, CA 94305, USA.

Abstract: “Phase-change memory (PCM) is a promising candidate for data storage in flexible electronics, but its high switching current and power are often drawbacks. In this study, we demonstrate a switching current density of ~0.1 mega-ampere per square centimeter in flexible superlattice PCM, a value that is one to two orders of magnitude lower than in conventional PCM on flexible or silicon substrates. This reduced switching current density is enabled by heat confinement in the superlattice material, assisted by current confinement in a pore-type device and the thermally insulating flexible substrate. Our devices also show multilevel operation with low resistance drift. The low switching current and good resistance on/off ratio are retained before, during, and after repeated bending and cycling. These results pave the way to low-power memory for flexible electronics and also provide key insights for PCM optimization on conventional silicon substrates.“

Flexing computer memory
“Phase change materials leverage changes in structure into differences in electrical resistance that are attractive for computer memory and processing applications. Khan et al. developed a flexible phase change memory device with layers of antimony telluride and germanium telluride deposited directly on a flexible polyimide substrate. The device shows multilevel operation with a low switching current density. The combination of phase change and mechanical properties is attractive for the large number of emerging applications for flexible electronics“. – BG
