Tyan (Mitac) Transport Rackmount Cloud and Storage Server Platforms With AMD EPYC 7003 Series Processors

With memory-based AI computing, large storage capacity, and SDS systems

Tyan, MiTAC Computing Technology Corp. subsidiary, brings a variety of AI, cloud and storage server platforms incorporating the AMD EPYC 7003 Series processors in it’s 2021 server solutions online exhibition that began June 2 (registration required).

Tyan Highlights New Ai, Cloud And Storage Server Platforms

As the continued growth of using clouds for running HPC workloads, modern data center operators need to raise the bar for improved business outcomes,” said Danny Hsu, VP, server infrastructure business unit. “With leadership performance and modern security features, Tyan‘s 3rd gen AMD EPYC processor-based platforms empower our customers to drive performance at a competitive price.”

Transport HX products deliver compute in supercomputing and deep learning

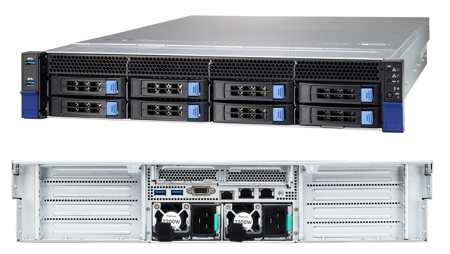

Transport HX TN83-B8251

Tyan Transport Hx Tn83 B8251 Server. Front And Rear

Attendees experienced demonstrations on the latest AMD products and technologies in HPC, cloud, storage, and 5G halls at the 3D virtual environment. Leveraging 3rd gen AMD EPYC processors, the Transport HX TN83-B8251 is a 2U dual-socket server with 16 DDR4-3200 DIMM slots, 2xhalf-height, half-length PCIe 4.0 x16 expansion slots for high-speed networking cards, and 8×3.5-inch SATA/NVMe U.2 hot-swap, tool-less drive bays. The platform supports up to 4 double-width GPU cards that can be scaled out to improve HPC and deep learning performance.

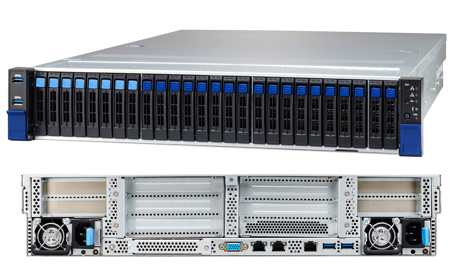

HX TS75A-B8252 front and rear

Tyan Transport Hx Ts75a B8252 Server Front And Rear

The Transport HX TS75A-B8252 is a 2U dual-socket server platform optimized for virtualization applications with support for 32 DDR4-3200/2933 DIMM slots and up to 9xPCIe 4.0 x8 slots. The TS75A-B8252 accommodates 26×2.5-inch SATA hot-swap, tool-less drive bays with up to 8xNVMe U.2 support by configuration.

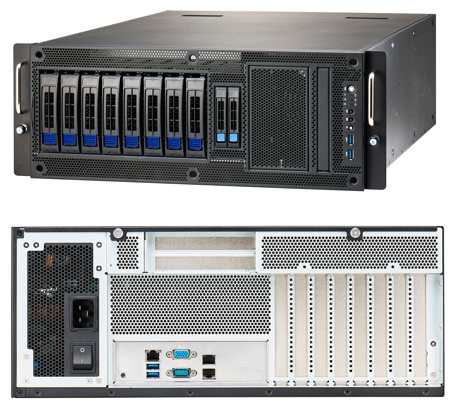

Transport HX FT65T-B8030 front and rear

Tyan Transport Hx Ft65t B8030 Server Front And Rear

The Transport HX FT65T-B8030 is a 4U convertible tower server platform designed for cost-effective HPC applications. The system supports a single EPYC 7003 Series processor, 8xDDR4-3200 DIMM slots, 8×3.5-inch SATA, and 2xNVMe U.2 hot-swap, tool-less drive bays. The FT65T-B8030 supports 4 double-width PCIe 4.0 x16 slots for GPUs to accelerate HPC applications.

Transport CX lineup designed for cloud and data analytics requiring large memory capacity

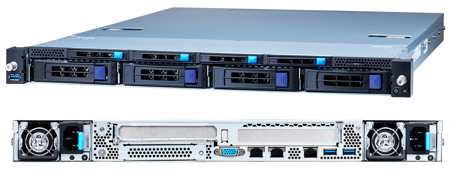

Transport CX GC79-B8252 front and rear

Tyan Transport Cx Gc79 B8252 Server Front And Rear

The Transport CX GC79-B8252 and Transport CX GC79A-B8252 are 1U dual-socket server platforms that are for high-density data center deployment for a variety of memory-based computing applications. Both systems feature 32 DDR4-3200/2933 DIMM slots, 2 standard PCIe 4.0 x16 expansion slots, and an OCP 3.0 LAN mezzanine slot. The GC79-B8252 platform provides 4×3.5-inch SATA and 4×2.5-inch NVMe U.2 hot-swap, tool-less drive bays, while the GC79A-B8252 platform offers 12×2.5-inch drive bays with up to 12xNVMe U.2 support.

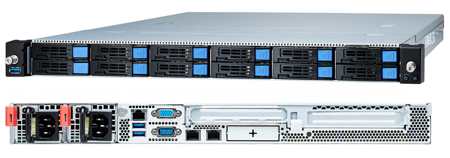

Transport CX GC68A-B8036 front and rear

Tyan Transport Cx Gc68a B8036 Server Front And Rear

The Transport CX GC68-B8036-LE and Transport CX GC68A-B8036 are cost-optimized single-socket cache server platforms featuring 16 DDR4-3200/2933 DIMMs, a pair of PCIe 4.0 x16 expansion slots and an OCP 2.0 LAN mezzanine slot in a 1U chassis. The GC68-B8036-LE accommodates 4×3.5-inch SATA hot-swap, tool-less drive bays for large storage capacity and 4×2.5-inch hot-swap, tool-less NVMe U.2 bays for application cache usage; the GC68A-B8036 offers 12×2.5-inch hot-swap, tool-less drive bays with support for up to 12xNVMe U.2 devices for applications for high storage performance requirements.

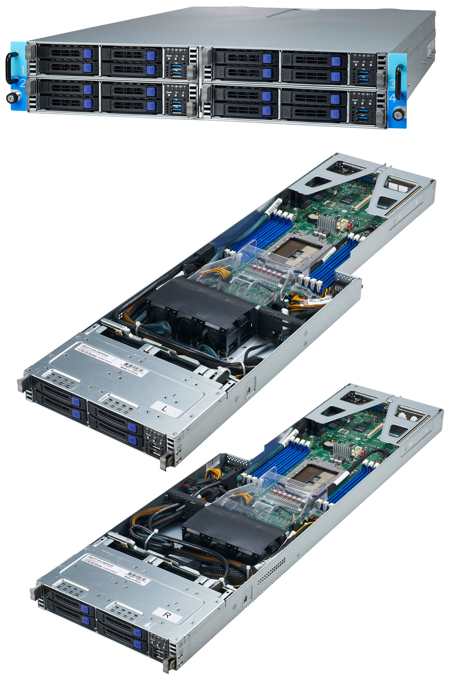

Transport CX TN73-B8037-X4S

Tyan Transport Cx Tn73 B8037 X4s Server Front Open

The Transport CX TN73-B8037-X4S is a 2U multi-node server platform with four front-serviced compute nodes. Each node supports one EPYC 7003 Series processor, 4×2.5-inch hot-swap, tool-less NVMe/SATA drive bays, 8xDDR4-3200 DIMM slots, 3 internal cooling fans, 2 standard PCIe 4.0 x16 expansion slots, 2 internal NVMe M.2 slots and 1xOCP 2.0 LAN mezzanine slot. The platform is suited for high-density data center deployments and targets scale-out applications with large numbers of nodes.

Transport SX lineup to deliver massive I/O and memory bandwidth for storage applications

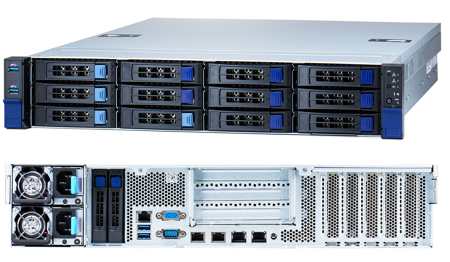

Transport SX TS65-B8253 front and rear

Tyan Transport Sx Ts65 B8253 Server Front And Rear
The Transport SX TS65-B8253 is a 2U dual-socket hybrid software storage server for various datacenter and enterprise deployments supporting 16 DDR4-3200 DIMM slots and 7 standard PCIe 4.0 slots. The platform offers 12 front 3.5-inch hot-swap, tool-less SATA drive bays with support for up to 4 U.2 NVMe SSDs, and 2 rear 2.5-inch hot-swap, tool-less SATA drive bays for boot drive deployment.

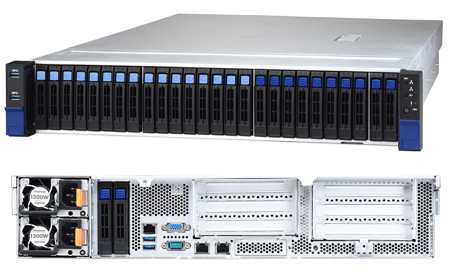

Transport SX TS65A-S8036 front and rear

Tyan Transport Sx Ts65a B8036 2 Server

Transport SX TS65-S8036 and Transport SX TS65A-S8036 are 2U single-socket storage servers with support for 16 DDR4-3200/2933 DIMM slots, 5 PCIe 4.0 and 1 OCP 2.0 LAN mezzanine slots. The TS65-S8036 accommodates 12 front 3.5-inch and 2 rear 2.5-inch hot-swap, tool-less SATA drive bays for cloud storage applications, up to 4 NVMe U.2 devices are supported on the front twelve drive bays; the TS65A-S8036 offers 26 front and 2 rear 2.5-inch hot-swap, tool-less drive bays for high-performance data streaming applications, the 26 front drive bays can support up to 24 NVMe U.2 devices by configuration.
