Greenliant Sampling DRAM-Less NVMe M.2 2280 88 PX Series ArmourDrive Up to 2TB SSD Modules With TLC 3D NAND

Commercial and industrial temperature between 0°C to +70°C or -40°C to +85°C, up to 2,500 and 2,100MB/s R/W speeds

Greenliant Systems Ltd has started sampling its DRAM-less NVMe M.2 2280 ArmourDrive SSD modules to customers requiring storage with fast access speeds, while using less power than other PCIe interface SSDs.

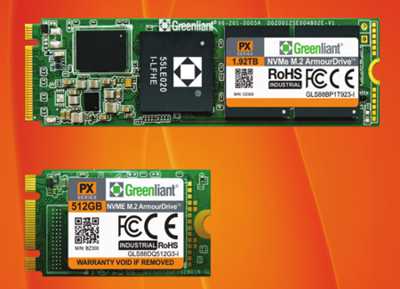

Greenliant Nvme M.2 Armourdrive

They use industrial TLC 3D NAND flash memory and support capacities from 128GB to 2TB.

Forward Insights predicts that the NVMe PCIe SSD market will grow from $10.5 billion in 2019 to $29.2 billion in 2024. To address this demand and diverse customer requirements, the company has expanded its NVMe M.2 ArmourDrive portfolio to offer 2280 form factor SSDs both with and without on-board DRAM. The DRAM-less NVMe M.2 2280 ArmourDrive products support the PCIe Gen3x4 interface and can reach up to 2,500/2,100 MB/s sequential R/W performance. Available in commercial (0°C to +70°C) or industrial (-40°C to +85°C) temperature, DRAM-less NVMe M.2 2280 ArmourDrive SSDs provide reliability and low latency to a applications including industrial automation, cloud computing, security, networking, broadcasting and transportation.

Benefits of 88 PX Series DRAM-less NVMe M.2 2280 ArmourDrive SSDs include:

  • Performance: Reaches up to 2,500/2,100MB/s R/W

  • Energy efficient: Active power consumption as low as 3,150mW and 2mW in a low-power idle mode

  • High data integrity: No data-at-rest corruption during power loss events

  • Wide range of capacities: 128, 256, 512GB, 1TB and 2TB

  • Commercial and industrial temperature: Operates between 0°C to +70°C or -40°C to +85°C

  • Host Memory Buffer (HMB) support: Improves IO/s performance and reduces latency

  • Data security: Supports TCG OPAL 2.0 (I-temp) or Pyrite (C-temp)

Click to enlarge

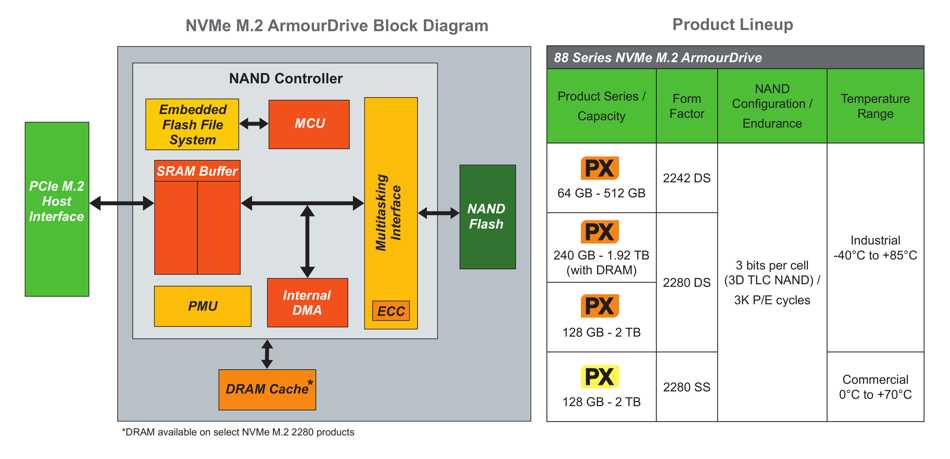

Greenliant Nvme M.2 Armourdrive Scheme


  • The company is sampling commercial temperature DRAM-less NVMe M.2 2280 SSDs to customers and expects to start shipping in volume production in December.

  • The firm plans to start sampling industrial temperature DRAM-less NVMe M.2 2280 SSDs in December with volume production expected in February 2021.
