ICP Deutschland: M.2 2280 Series T376 Up to 1TB SSD With 3D TLC NAND

ICP Deutschland GmbH completes its SSD portfolio with an M.2 2280 series, which combines TLC technology with data protection.

In addition to models in the M.2 2280 form factor, the T376 series also consists of models in mSATA and 2.5″ form factor. Common to all of them is the Powerguard or Power Loss Protection function (PLP), a technology that provides additional power in the event of a power failure to complete the storage of data and thus prevent data loss. This is realized by additional tantalum capacitors, which provide the required power in case of a power failure. The SSD offers further protection in the form of 256-bit AES encryption. Furthermore, unlike the earlier MLC series, the TLC series has optional write protection. When activated, users or malware cannot overwrite, delete or manipulate data.

The M.2 T376 series is available in form factor 2280 and has a B and M key. The built-in 3D TLC NAND flash memory is available in 128, 256, 512GB and 1TB. With a read speed of up to 550MB/s and a write speed of up to 475MB/s, the SSD has performance for common OSs.

A version for the temperature range from 0°C to 70°C and a version with an extended temperature range from -40°C to +85°C are offered. The T376 is always energy-saving: 460mW power in idle mode, or 2,140mW power in active mode with an MTBF of 2,000,000 hours and a maximum of 1,167 Terra Byte Written, the T376 underlines its industrial suitability.

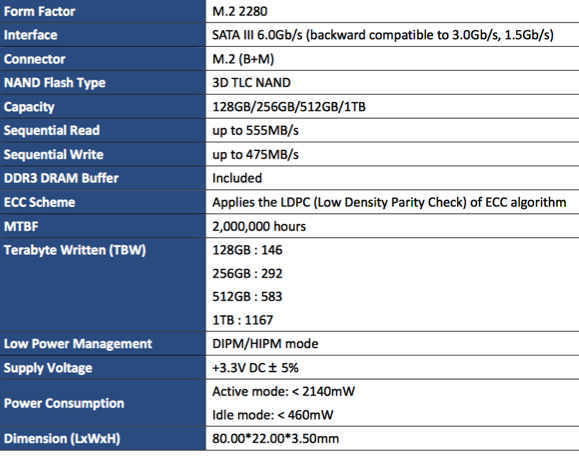

Specifications

• 3D TLC NAND flash memory

• 6Gb SATA with backward compatibility to SATA I and SATA II

• 128GB to 2TB capacity

• 2.5″, mSATA and M.2 2280 form factor

• DDR3 DRAM buffer memory

• Powerguard function (Power Loss Protection)

• AES-256-bit encryption

• SLC write cache technology

• Low power consumption

• Static and Dynamic Wear Leveling

• Bad Block Management

• S.M.A.R.T. and Trim functions

• Standard or extended temperature range

• Optional write protection

Applications

• embedded systems

• 19″ systems

• Measuring computer

• Image processing

• Multimedia

• AI

• Data processing
