Silicon Motion With PCIe 4.0 NVMe 1.4 Controllers for SSD

Offer up to 7,400/6,800 MB/s sequential RW speeds, including SM2264 for performance, SM2267 for mainstream and SM2267XT for value DRAM-less client SSDs.

Silicon Motion Technology Corporation announced a portfolio of PCIe 4.0 NVMe 1.4 controller solutions to address performance, mainstream and value SSD applications.

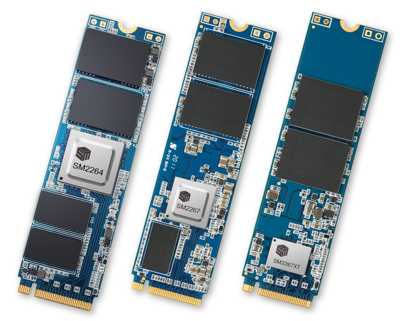

Silicon Motion Ssd Controller

It consists of SM2264 for performance, SM2267 for mainstream and SM2267XT for value DRAM-less client SSDs.

This controller family has been designed with PCIe Gen4 technology and hardware features especially optimized for true Gen4 performance at low power consumption, advanced error correction as well as data path and EMI protections. To date, 10 of the leading global NAND makers and SSD OEMs have selected the company’s Gen 4 controllers with 3D TLC and QLC NAND technologies.

Don Jeanette, VP, TrendFocus, commented: “Silicon Motion has long been known as a leader in SSD controller technology. The company’s new product introductions are well timed as Gen 4 continues to gain traction and will become the standard over the next few years for PCs, game consoles and other client devices.

PCIe Gen4 brings the next level of performance for SSDs to the market,” said Wallace Kou, president and CEO, Silicon Motion. “With today’s announcement, Silicon Motion’s complete line-up of PCIe 4.0 SSD controller solutions meets the requirements of the world’s top PC OEM and SSD manufacturers into the future. Already, our new PCIe Gen4 controllers have been designed into SSDs from leading OEM customers and SM2267 has started volume production.

Performance and automotive PCIe Gen 4 solutions: SM2264 Gen4 x 4 Lanes, 8 NAND channel SSD controllers
Targeted at performance and automotive SSDs, SM2264 features a quad-core ARM R8 CPU with 4 lanes of 16Gb/s PCIe data flow and supports 8 NAND channels with up to 1,600MT/s per channel. Its architecture, based on 12nm process technology, enables high throughput, lower power consumption, and data protection while delivering high speed of sequential read/write performance of up to 7,400/6,800MB/s and random read/write speeds of up to 1,000,000 IO/s. The quad core ARM R8 CPU offers high multi-threaded performance to handle mixed workload operations required by emerging storage applications. SM2264 is designed with the firm’s 7th generation NANDXtend ECC technology with a performance-optimized 4KB LDPC engine and RAID to maximized error correction capability for the latest and next generation 3D TLC and QLC NAND. SM2264 is also for automotive storage, offering built-in SR-IOV capability that provides direct, high-speed PCIe interface for supporting to up to 8 VMs. SM2264 is currently sampling to customers.

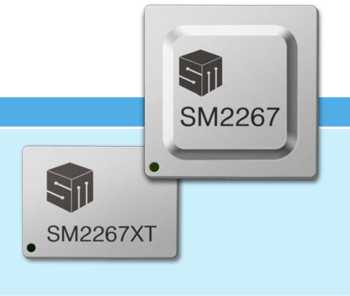

Silicon Motion Sm2267 Sm2267xt Processor

Mainstream and value PCIe Gen 4 SSD solutions: SM2267 Gen 4×4 Lanes, 4 NAND channel and SM2267XT Gen4x4 Lanes, 4 NAND channels, DRAM-less
The company’s SM2267 and SM2267XT meet the requirements of mainstream and value client SSDs and feature 4x16Gb/s lanes of PCIe and 4xNAND channels with up to 1,200MT/s per channel, delivering 3,900/3,500MB/s sequential read/write performance. SM2267 includes a DRAM interface while the SM2267XT DRAM-less controller enables small form factor SSDs without compromising performance. Both also include NANDXtend ECC technology and support the latest TLC and QLC NAND. SM2267 and SM2267XT have entered volume production.

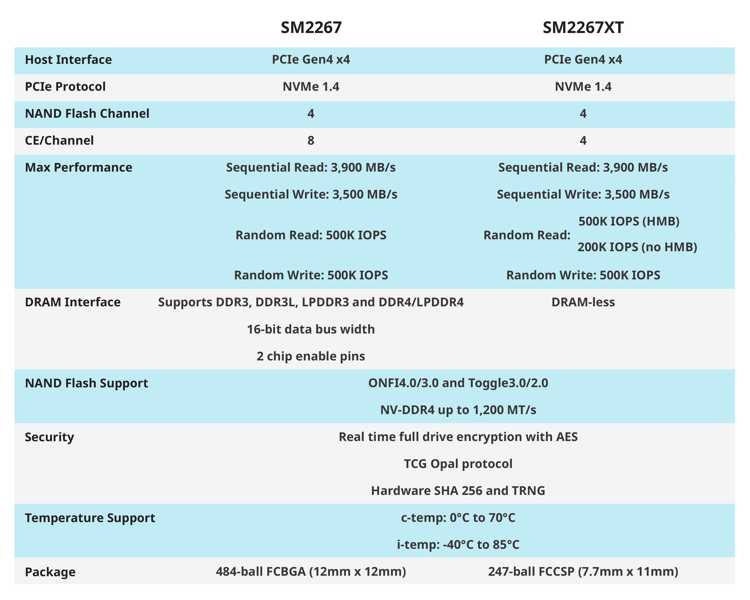

Silicon Motion Sm2267 Sm2267xt Spectabl
