Asustor 12-Bay Lockerstor 12R Pro and 16-Bay 16R Pro Rackmount NAS With 9th Gen Xeon Quad-Core Processor

$3,100 for 12R Pro, and $5,000 for 16R Pro (diskless)

Asustor Inc. has announced the rackmounted Lockerstor 12R Pro and Lockerstor 16R Pro equipped 9th Gen Xeon E-2224 3.4GHz Quad-Core processor.

Asustor Lockerstor 12r 16r

They come with 8GB DDR4-2666 ECC UDIMM and supports a maximum of 128GB, improving computing power and system stability of VMs and Docker applications. In addition to the 4xGbE ports, they provide 3xPCIe slots that support 10/25/40/50GbE network cards and SAS cards increasing speeds. The variety of I/O include 6xUSB 3.2 Gen2 ports, of which 4 are Type-A and 2 are Type-C, and dual M.2 slots for SSD caching.

Lockerstor 12R Pro

Asustor Lockerstor 12r Pro 3


Lockerstor 16R Pro


Asustor Lockerstor 16r Pro 3

The 80 Plus Platinum 550W dual redundant power supplies and 4xGbE ports can be configured with failover to ensure the reliability of power supply and transmission, and also through high power conversion efficiency (up to 94%), provide high-efficiency power supply and virtualized storage stability, allowing enterprises to control costs and protect the environment. The 45xGbE ports combined provide up to 451MB/s and 451MB/s read and write speeds. The Lockerstor 12R Pro and 16R Pro support up to 192TB and 256TB respectively and the support for large amounts of storage space fully accommodates rapidly increasing storage needs, meeting the needs of the present and the future simultaneously.

Asustor Lockerstor 12r Pro Rear

They equipped with ADM NAS OS. The UI of ADM enables network administrators to manage company data quickly and share data across a variety of platforms and environments. These NAS are equipped with both enterprise-grade hardware and software as well as being compatible with VMware, Citrix and Hyper-V storage environments, integrate with iSCSI/IP-SAN, NFS or an existing IT environment and provide a cost-effective storage solution for business. In addition, the company’s MyArchive cold backup technology turns NAS HDDs into cold storage HDDs for safekeeping. Accessing content, backing up and sharing terabytes of data is a breeze.

Asustor Lockerstor 12r Pro 2

The 2 NAS not have computing and massive storage capabilities, and also protect investment by guaranteeing tkem NAS for 4 years. This series provide companies increased productivity and a cost-effective purchase, maximizing their benefits, and achieve sustainable growth with the firm.

The Lockerstor 12R Pro and 16R Pro retail for $3,099/US – £3,499/UK and $4,999/US – £4,799/UK.

Lockerstor 12R Pro
Click to enlarge

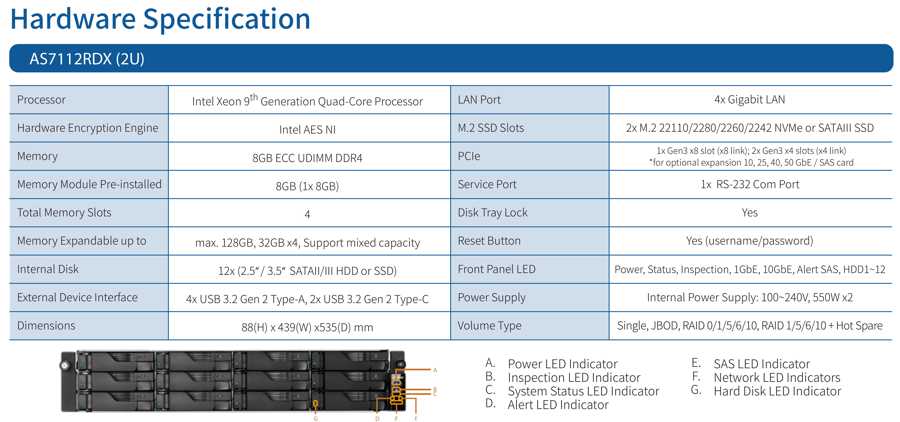

Asustor Lockerstor 12r Pro(as7112rdx) Spectabl

Lockerstor 16R Pro
Click to enlarge

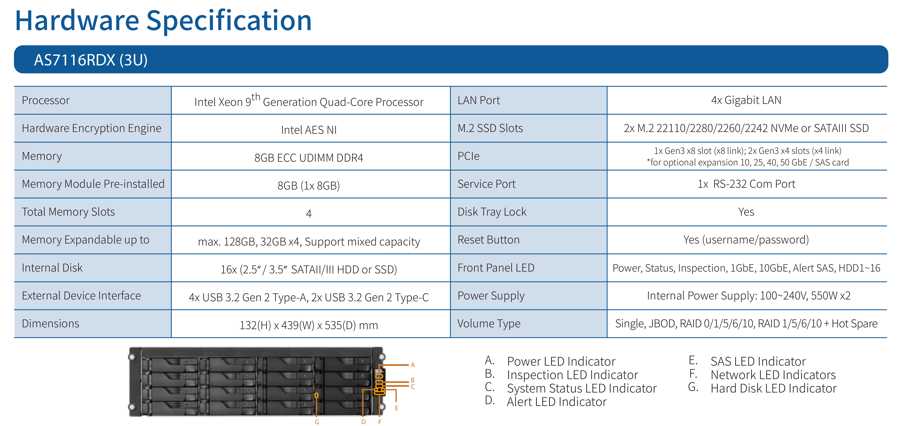

Asustor Lockerstor 16r Pro(as7116rdx) Spectabl

Main specs:

  • CPU: Intel 9th gen Xeon E-2224 3.4GHz Quad-Core processor


  • 12 or 1 2.5″ or 3.5″ HDD bays

  • Dual M.2 NVMe slots

  • 4xGbE ports

  • Link aggregation speeds of 451MB/s read and 451MB/s write

  • 4xUSB 3.2 Gen2 (Type A), 2xUSB 3.2 Gen2 (Type C)

  • 3xPCIe Gen3 (8Gb) slots, support 10/25/40/50GbE network cards and SAS cards

  • Dual 550W 80 PLUS Platinum power supplies

  • Lockerstor 12R Pro maximum volume size of 192TB

  • Lockerstor 16R Pro maximum volume size of 256TB

  • Supports HDD hot-swapping

  • Supports RAID-0/1/5/6/10, single, JBOD

  • Supports system migration

  • Supports Btrfs MyArchive drives
