R&D: Astonishing Parabola Trick, HZDR Physicists Demonstrate Unusual Magnetic Behavior

From Helmholtz-Zentrum Dresden-Rossendorf (HZDR)

The better we understand these phenomena, the better and more energy efficient the memory chips and hard drives we can build.

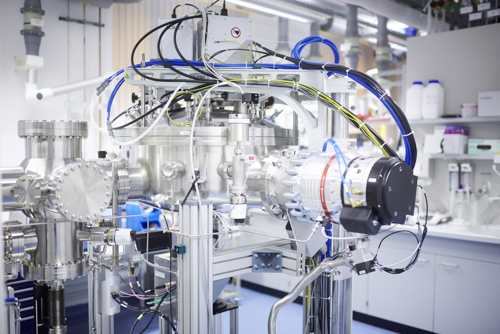

Using a deposition machine HZDR physicists prepare certain magnetic thin films,
which are then patterned lithographically into parabolas.
(Foto: HZDR / S. Floss)

Physicists from the Helmholtz-Zentrum Dresden-Rossendorf (HZDR) and the Helmholtz-Zentrum Berlin (HZB) have now completed the essential fundamental work for future storage devices: Using a creative approach of shaping magnetic thin films in curved architectures, they validated the presence of chiral responses in a commonly used magnetic material. This facilitates the creation of magnetic systems with desired properties that rely on simple geometrical transformations. The team has now presented their work in the journal Physical Review Letters.

We all know that our left hand is different from our right – a left glove won’t fit your right hand and vice versa. Scientists use the term ‘chirality’ to describe objects that do not align with their mirror image. Chemists, in particular, are familiar with this property in molecules, as in left- and right-rotating lactic acid. Humans metabolize the right-rotating variant more easily than its ‘mirror image’.

Such chiral effects are known to occur in magnetic materials, where magnetic textures also have chiral properties: the arrangement of individual magnetic moments inside the material, or, figuratively speaking, the alignment of the many tiny ‘compass needles’ that make up a magnet, could form right- and left-handed alignments. Under certain conditions, some textures behave like image and mirror image – a left-handed texture cannot be made congruent with its right-handed version.

The interesting aspect here is that “the two textures can present different magnetic behaviors,” as Dr. Denys Makarov, physicist, HZDR points out. “To put it simply: a right-handed texture can be more energetically preferable than a left-handed texture. Since systems in nature tend to assume their lowest possible energetic state, the right-handed state is preferred.”

Such chiral effects hold great technological promise. Among other things, they could be helpful in the future development of highly energy-efficient electronic components such as sensors, switches, and non-volatile storage devices.

Magnetic curved architectures
“Helimagnets are materials with well-defined chiral magnetic properties, due to a lack of internal magnetic symmetry,” explains the lead author of the paper, Dr. Oleksii Volkov,  Institute of Ion Beam Physics and Materials Research, HZDR. “Despite the fact that they have been known for a long time, these are rather exotic materials that are difficult to produce. Moreover, helimagnets usually exhibit their unique chiral properties at low temperatures.”

That is why Makarov’s team chose a different path. They used a common magnetic material, iron-nickel alloy (known as Permalloy), to build curved objects like parabola-shaped strips. Using lithography, they formed various parabolic strips of several micrometers from thin sheets of Permalloy.

The physicists then exposed the samples to a magnetic field, thus orienting the magnetic moments in the parabola along this magnetic field. They then experimentally explored the magnetization reversal by using a highly sensitive analysis method at HZB’s synchrotron. The team was able to show that the magnetic moments in the parabolic strip remained in their original direction until a reversed magnetic field of a certain critical value was applied.

Surprisingly strong effect
This delayed response is due to chiral effects caused by the curvature at the apex area of the parabola strips. “Theorists have predicted this unusual behavior for some time, but it was actually considered more of a theoretical trick,” explains Dr. Florian Kronast, Helmholtz-Zentrum Berlin. “But now we have shown that this trick actually works in practice. We detected magnetic chiral response in a conventional soft ferromagnetic material, just through the geometric curvature of the strips we used.”

In the process, the team were faced with two more surprises: On the one hand, the effect was remarkably strong, which means it could be used to influence the magneto-electric responses of materials. On the other hand, the effect was detected in a relatively large object: micrometer-sized parabolas that can be produced using conventional lithography. Previously, experts had assumed that these curvature-induced chiral effects could only be observed in magnetic objects with dimensions of about a dozen of nanometers.

“In terms of possible applications, we are looking forward to novel magnetic switches and data storage devices that utilize geometrically-induced chiral properties,” Makarov emphasizes.

There are concepts that envision future digital data storage in certain magnetic objects, so-called chiral domain walls or skyrmions. The recent discovery might help to produce such objects quite easily – at room temperature, and using common materials. In addition, the newly discovered effect also paves the way for novel, highly sensitive magnetic field sensors.

Publication: Experimental Observation of Exchange-Driven Chiral Effects in Curvilinear Magnetism

Physical Review Letters has published an article written by Oleksii M. Volkov, Attila Kákay, Helmholtz-Zentrum Dresden-Rossendorf e.V., Institute of Ion Beam Physics and Materials Research, 01328 Dresden, Germany, Florian Kronast, Helmholtz-Zentrum Berlin für Materialen und Energie, 12489 Berlin, Germany, Ingolf Mönch, Mohamad-Assaad Mawass, Helmholtz-Zentrum Berlin für Materialen und Energie, 12489 Berlin, Germany, Jürgen Fassbender, and Denys Makarov, Helmholtz-Zentrum Dresden-Rossendorf e.V., Institute of Ion Beam Physics and Materials Research, 01328 Dresden, Germany.

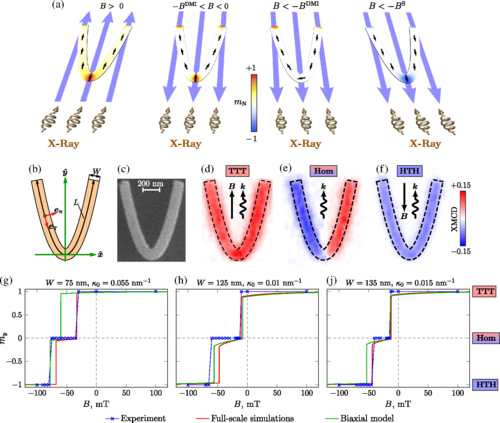

Hysteresis loops and states. (a) Schematic illustration of the four main magnetic states appearing during the field reversal: saturation, domain wall (head-to-head or tail-to-tail), homogeneous along the parabola, and again saturation in the reversed field. The blue arrows mark the external field direction, and the small black arrows indicate the magnetization direction. In color code, the component of the magnetization perpendicular to the parabola’s long axis is shown. Reducing the field from positive saturation to zero, a DW is forming at the apex of the parabolic stripe. In order to remove the DW pinned by the curvature-induced DMI at the apex, a certain negative field $-B^{\mathrm{DMI}}$ has to be applied. Further increasing the field in the negative direction at $B^S$, a DW will nucleate at the end of the parabola and move into the apex, thus reversing the magnetization. (b) Schematic picture of a parabolic stripe construction. Green arrows correspond to the Cartesian frame of references, while red ones refer to a local curvilinear frame of references. (c) Scanning electron microscopy image of a patterned stripe with $L=2\mu m$ length, $W=135\mathrm{nm}$ width, and ${\kappa }_0=0.015{\mathrm{nm}}^{-1}$ vertex curvature. The main magnetic states imaged by XMCD-PEEM appearing during the field reversal are (d) tail-to-tail (TTT) DW, (e) homogeneous along the parabola, and (f) head-to-head (HTH) DW. A comparison of experimentally and numerically obtained hysteresis loops for parabolic stripes are shown for the following stipe widths: (g) $W=135\mathrm{nm}$ and ${\kappa }_0=0.015{\mathrm{nm}}^{-1}$, (h) $W=75\mathrm{nm}$ and ${\kappa }_0=0.05{\mathrm{nm}}^{-1}$, and (j) $W=125\mathrm{nm}$ and ${\kappa }_0=0.01{\mathrm{nm}}^{-1}$. Blue crosses correspond to the experimentally observed magnetic contrast change via the XMCD-PEEM imaging. Red lines correspond to results of the full-scale micromagnetic simulations.

Abstract: “The main origin of the chiral symmetry breaking and, thus, for the magnetochiral effects in magnetic materials is associated with an antisymmetric exchange interaction, the intrinsic Dzyaloshinskii-Moriya interaction (DMI). Recently, numerous inspiring theoretical works predict that the bending of a thin film to a curved surface is often sufficient to induce similar chiral effects. However, these originate from the exchange or magnetostatic interactions and can stabilize noncollinear magnetic structures or influence spin-wave propagation. Here, we demonstrate that curvature-induced chiral effects are experimentally observable rather than theoretical abstraction and are present even in conventional soft ferromagnetic materials. We show that, by measuring the depinning field of domain walls in the simplest possible curve, a flat parabolic stripe, the effective exchange-driven DMI interaction constant can be quantified. Remarkably, its value can be as high as the interfacial DMI constant for thin films and can be tuned by the parabola’s curvature.“
