Synology FS6400, FS3400, SA3400 Rackmount and DS620slim Desktop NAS

Synology Inc. launched FS6400, FS3400, SA3400, and DS620slim, refining the product portfolio to resolve IT challenges from IO density, storage capacity, and physical dimensions of the server.

These models are successors to the existing ones with a name change in the product series to better distinguish among high-end rackmount servers.

“Synology renews the product portfolio for high-end models to offer more options tailored to demands from various business workloads,” said Jason Fan, product manager, Synology. “When it comes to data management, performance and capacity are two central concerns facing businesses. Therefore, we developed the FS and SA series to address these specific concerns from IT administration, taking data management to new levels of flexibility and efficiency. All these are to eliminate storage silos and enable businesses to realize the potential value of their important data.“

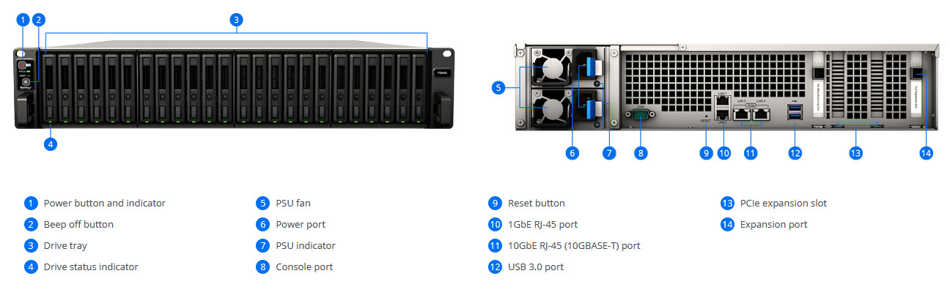

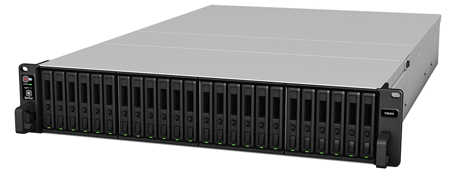

FlashStation FS6400: Accelerated storage for every workload

FS6400 is armed with dual Xeon Silver 8-core processors, delivering over 240,000 iSCSI 4K random write IO/s. The all-flash storage FS6400 is for virtualized and containerized environments, databases, and web-based applications, building a data-centric architecture that realizes storage acceleration.

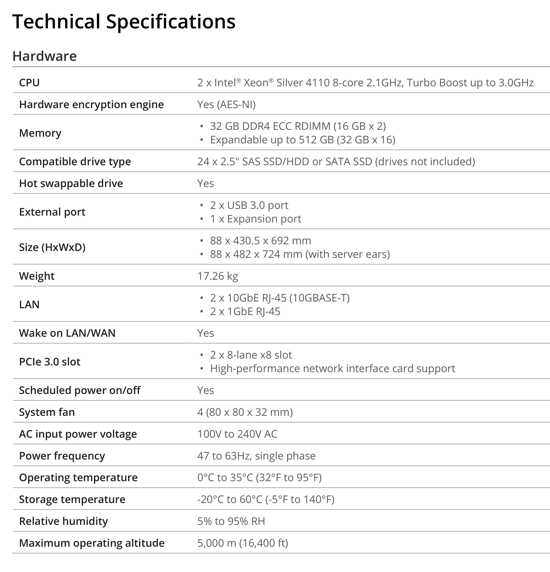

Click to enlarge

Scalability: Up to 48 drives with two RX1217SAS, or 72 drives with two RX2417SAS
Memory: 32GB DDR4 ECC RDIMM, expandable up to 512GB
10GbE built-in: Two 10GbE and two 1GbE ports supporting failover and link aggregation
PCIe expansion: Two PCIe 3.0 slots for additional network interface cards
Performance: Over 240,000 iSCSI 4K random write IO/s

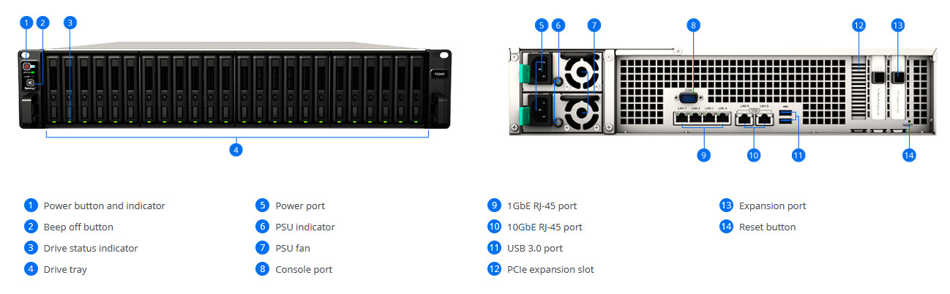

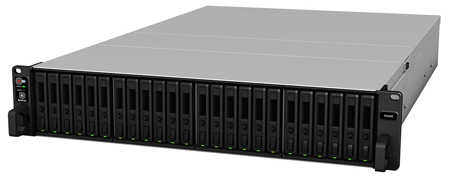

FlashStation FS3400: Flash adoption for SMBs to set free power of data

Powered by Intel Corp.’s 8-core, 2.1GHz CPU and 16GB ECC RDIMM memory, FS3400 delivers more than 137,000 4K random write IO/s, speeding up the responsiveness of your business-critical applications. You can choose between SAS and SATA drives without vendor lock-in to align with your service deployment, increase storage capacity to up to 72 or 48 drives with two company’s RX2417sas/RX1217sas, or expand the networking bandwidth through an additional 25/40GbE network interface card.

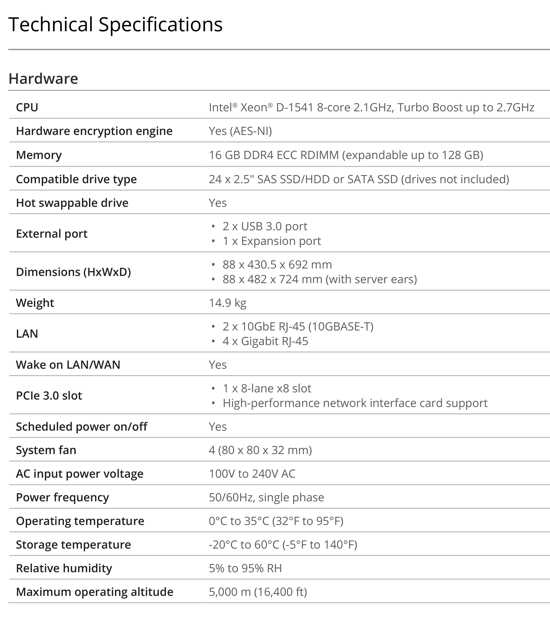

Click to enlarge

Scalability: More than 500TB raw capacity with 2 expansion units
Memory: 16GB DDR4 ECC RDIMM, expandable up to 128GB
10GbE built-in: 2 10GbE and 4 1GbE ports supporting failover and link aggregation
PCIe expansion: One PCIe 3.0 slot for additional network interface card’s expansion
Performance: Over 137,000 4K random write IO/s in the aggregated 10GbE environment

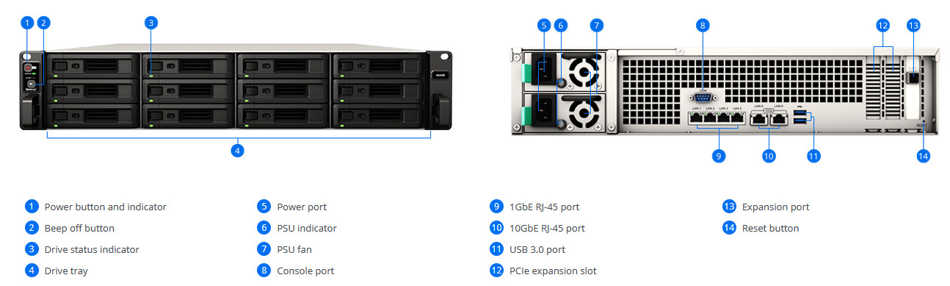

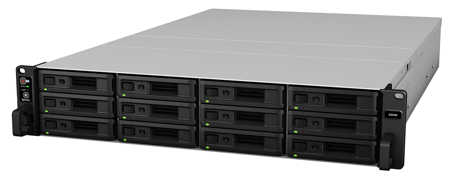

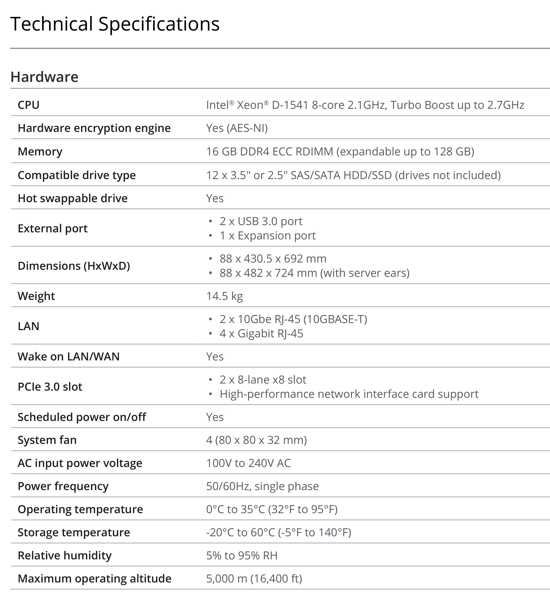

SA3400: Scalable storage for large-scale businesses

SA3400, the first model in the SA series, serves as the successor of RS18017xs+ with an upgraded CPU from 6 to 8 cores and a 50% performance boost in 4K random read IO/s. Equipped with an 8-core, 2.1GHz CPU and 16GB ECC RDIMM memory and scalable up to 1,536TB with little to unnoticeable performance degradation, SA3400 provides more than one petabyte raw capacity, for video post-production and massive surveillance deployment.

Click to enlarge

Scalability: Up to 180 drives with seven x RX2417SAS, or 96 drives with seven RX1217SAS
Memory: 16GB DDR4 ECC RDIMM, expandable up to 128GB
10GbE built-in: Two 10GbE and four 1GbE ports supporting failover and link aggregation
PCIe expansion: 2 PCIe slots for additional network interface cards
Performance: Over 5,520MB/s sequential throughput and 304,277 random IO/s

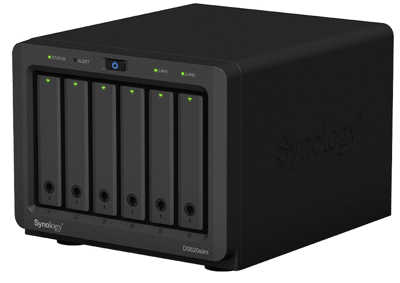

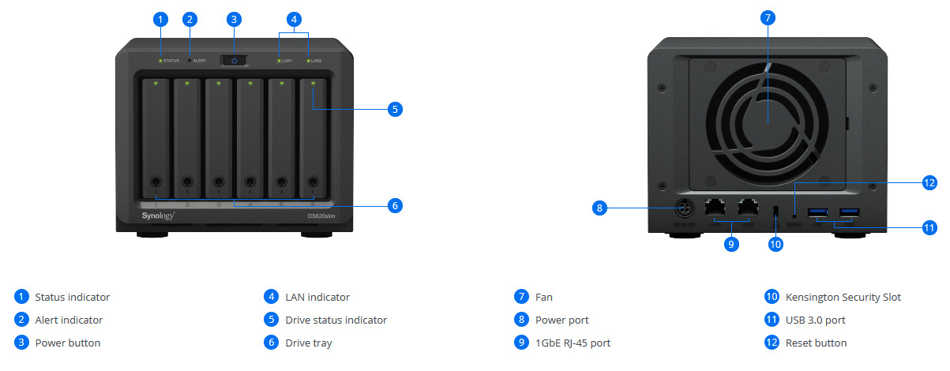

DS620slim: Simplified storage with performance and palm-sized appearance

Powered by Celeron J3355 2-core processor and 2GB DDR3L memory expandable up to 6GB, DS620slim is a 6-bay NAS packed with the company’s classic capabilities. For modern households and studios looking for streaming experience, it is a choice to deliver 4K video transcoding while matching with existing decor.

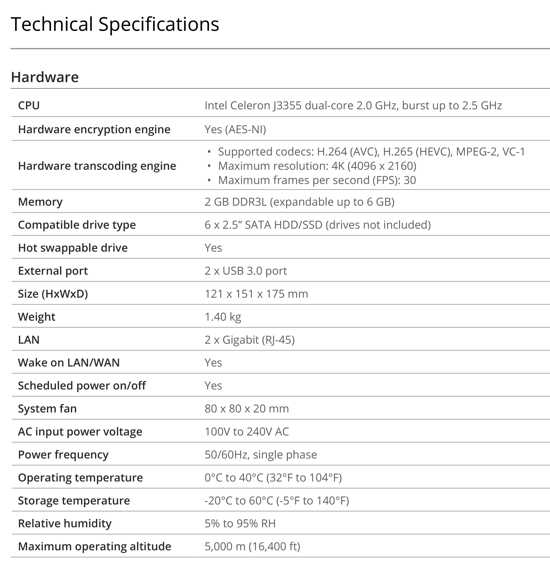

Click to enlarge

Compact design: Mini design with the dimensions of 121x151x175mm, flexible to fit in anywhere
Encryption performance: Over 226MB/s and 198MB/s sequential reading and writing
RAID flexibility: Flexible in a variety of RAID configurations to realize maximum 30TB raw capacity or better data protection with RAID-5/6/10
SSD cache support: Enhance storage performance with SSD R/W cache while still having abundant drive bays for storage
Network: Dual 1GbE LAN ports for network failover and link aggregation
