Microchip Clock Buffers to Meet DB2000Q/QL Standards Plus PCIe Gen 4 and Gen 5 Low Jitter Spes

As data centers migrate to greater bandwidth and faster infrastructure, the need for higher performance timing devices becomes critical.

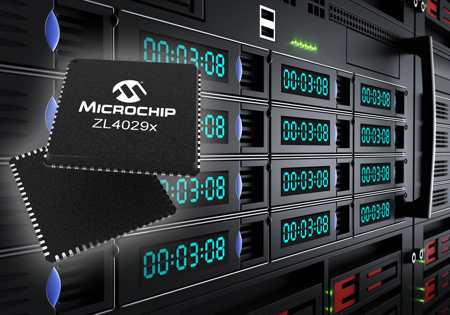

Four 20-output differential clock buffers that exceed PCIe Gen 5 jitter standards for next-gen data center applications are available from Microchip Technology Inc.

The ZL40292 (85Ω termination) and ZL40293 (100Ω termination) are designed to meet the DB2000Q spec while the ZL40294 (85Ω termination) and ZL40295 (100Ω termination) are designed to meet the DB2000QL industry standard. All are suited for next-gen servers, data centers, storage devices and other PCIe applications. These new devices also meet PCIe Gen 1, 2, 3 and 4 specs.

Each buffer is complement to chipsets where distributed clocks are required across several peripheral components, such as CPUs, Field Programmable Gate Arrays (FPGAs) and Physical layers (PHYs) in data center servers and storage devices, along with many other PCIe applications.

The devices’ low additive jitter of approximately 20 femtoseconds (~20fs) exceeds the DB2000Q/QL specification of 80 femtoseconds (80fs). This provides designers large margins to meet tight timing budgets while achieving increasing data rates. These devices will minimize jitter when distributing clocks to up to twenty outputs, thereby maintaining the integrity and quality of the clock signal through the buffer.

These buffers achieve low power dissipation and contribute savings to power budgets by using Low-Power High-Speed Current Steering Logic (LP-HCSL). Compared to standard HCSL, LP-HCSL consumes one third of the power, leading to an decrease in power consumption. This feature also gives customers the ability to drive longer traces on their board, improving signal routing while reducing components and board space. The ZL40292, for example, can eliminate up to 80 termination resistors (four per output) compared to traditional HCSL buffers.

“Microchip provides the broadest clock and timing portfolio in the industry and continues to develop solutions to address demanding next-generation networking applications, such as higher speed data center and enterprise infrastructure,” said Rami Kanama, VP, timing and communications business unit, Microchip. “Customers who are seeking DB2000Q- and DB2000QL-compliant clock buffers can begin their designs now because of Microchip’s early introduction and the superior performance of PCIe Gen 5 devices, offering engineers greater design margins and peace of mind.“

Availability:

The ZL40292 and ZL40293 are available for sampling and in volume production in 72-pin 10 x 10 mm QFN packages.
The ZL40294 and ZL40295 are available for sampling in the 80-pin 6 x 6 QFN packages.
