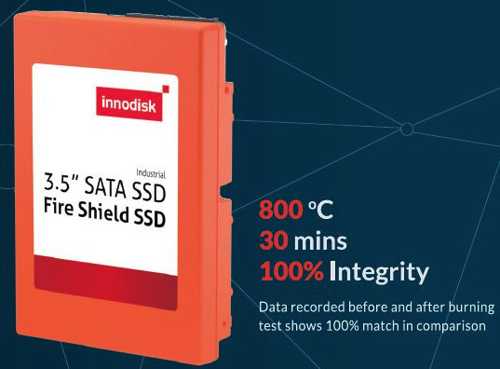

Computex: Innodisk Unveils Fire Shield 3.5-Inch SATA SSD Withstanding Over 800°C of Direct Flames

After many trials and a lengthy design process, the Fire Shield SSD has passed its baptism of fire.

After having been bathed in direct flames at 800°C for more than 30 minutes, comparisons show 100% data accuracy before and after tests. The U.S. patent has already been granted USPTO.

The Fire Shield SSD design borrows from the concept of black boxes. It is placed inside vehicles and public transportation for the purpose of facilitating accident investigation. Modern vehicles are designed with safety in mind. But no matter the safety measures, fire is always a risk. In the US alone, there are more than 400 fire-related vehicle accidents every year, and what is often forgotten is the importance of data after such an accident, as it might be the only clue to the underlying causes. This is why Innodisk Corp. has created the Fire Shield SSD.

In order to simulate conditions of a high-temperature accident scenario and to test the robustness of the device, the Fire Shield SSD was bathed in the direct flame for 30 minutes at 1,500° Fahrenheit (800°C). The result demonstrated the robustness and data preservation of the innovation.

It consists of a triple layer of protection between the environment and the core components. The layers include flame-resistant copper alloy, drive-protecting connector design, and heat-isolating lining material. By combining more than twenty different heat-resistant materials with low heat-conducting properties, the SSD shields the NAND flash from extreme heat.

Fire Shield SSD is available as a SATA 3.5″ SSD form factor and was displayed at Computex in Taipei, Taiwan.
