Atto xCORE Hardware Accelerated iSCSI Available in XstreamCORE ET 8200 Storage Controller

Atto Technology, Inc. announced the availability of xCORE hardware accelerated iSCSI, a low latency implementation of standard TCP/IP based iSCSI, in their XstreamCORE ET 8200 storage controller.

XstreamCORE ET8200

“iSCSI has been connecting storage solutions for decades and manufacturers have been attempting to make iSCSI more efficient with greater speed and lower latency. In theory it is possible to make iSCSI faster but in practical implementations maufacturers are still limited by TCP/IP,” said Tom Kolniak, senior director, marketing, Atto. “Atto found a solution. The challenge of adding iSCSI support to the XstreamCORE meant implementing TCP/IP in hardware without TCP/IP offload engines.“

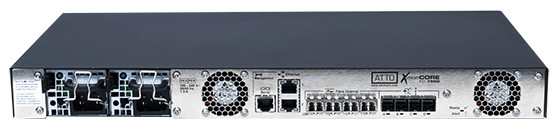

XstreamCORE ET8200 rear

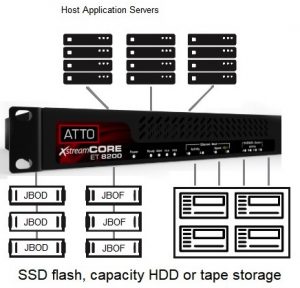

XstreamCORE ET 8200 is a top-of-rack 1U storage controller that, for less than the price of a server, connects any external SAS device, such as a JBOD of HDDs or SSDs, a RAID array or external tape devices, and presents them on an Ethernet SAN fabric. It has low latency because of xCORE hardware acceleration and the firm’s intelligent Bridging Architecture resulting in only 2-4μs of added latency. SAS LUNs attached to the ET 8200 are connected via four 12Gb wide lane SAS ports and mapped and presented via two 40GbE ports as RDMA based ISER and/or iSCSI targets.

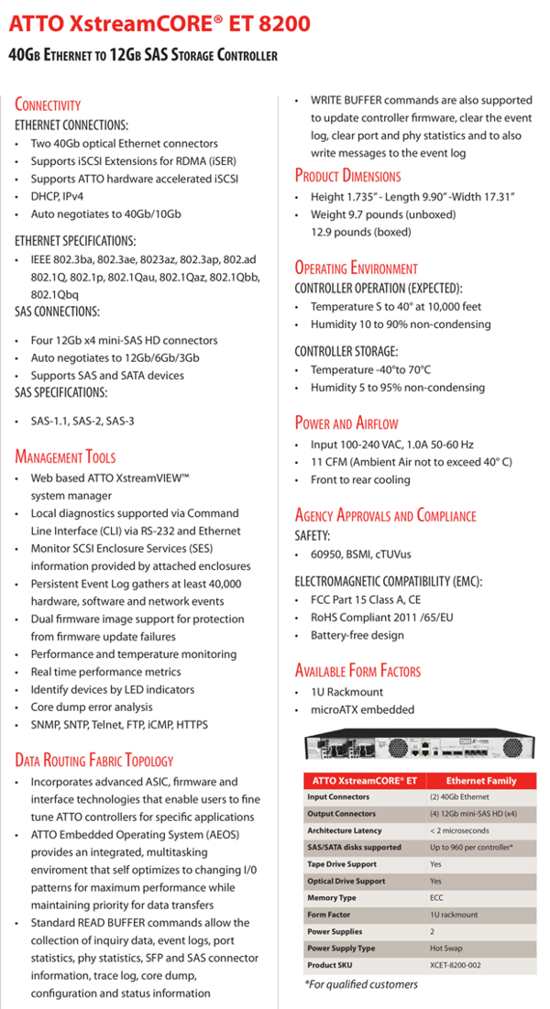

Click to enlarge

To reach its performance goals XstreamCORE ET 8200 utilizes the parallel processing capabilities of custom xCORE ASICs that feature multiple parallel I/O acceleration engines which work together to move data at a fast rate. Combined with the lossless RDMA Ethernet protocol iSER (iSCSI Extensions for RDMA) and hardware accelerated iSCSI, XstreamCORE integrates with SAS storage to create high bandwidth shared Ethernet storage solutions.

“Atto’s initial release of XstreamCORE ET 8200 supported connecting SAS devices to Ethernet networks via iSCSI extensions for RDMA over RoCE v2,” said Jim U’Ren, product manager, Atto. “Using iSER is a very efficient, FC-like technology for new installations that utilize Linux OS and RoCE, however those that require the use of Windows or IllumOS OSs have challenges deploying iSER. Atto hardware accelerated iSCSI works everywhere iSCSI is supported and achieves speeds that rival RDMA-based iSER.“

With the ability to scale up using any brand of storage or enclosure, XstreamCORE is for performance and large capacity use cases, including storage disaggregation, hyperscale data centers fast block storage, HPC, imaging, databases and high frequency trading and other financial applications.
