Cepoint Networks Next-Gen 1U/2U Industrial Rackmount NAS

Cepoint Networks LLC‘s next generation industrial NAS storage servers 1U, 2U rackmount, powered with -48V, -72V and 110V DC battery or standard AC are custom-built servers suitable for SCADA and harsh industrial applications, oil fields, industrial plants and enterprises.

The NAS servers are reliable for industrial applications such as electrical power grids and plants, oil and gas, petroleum, etc. and customized in one, two, three or 4U rack-mount form factors with options of 72-110VDC or 120-240V AC power supplies, and capable of operating with Linux/Unix or Windows Server O/S.

These industrial storage NAS/SAN solution series operates 24/7, 365 days reliably utilizing energy saving DC power sources especially in industrial application environments where the electrical grid is lacking or unstable. Optional Parallel Redundant Protocol Networks (PRP networks) features makes these Industrial NAS suitable for Grid Sub-stations and SCADA operations, for electrical power generation plants.

For telecom and electric power grid companies affected by Hurricane or storm power outages, these types of computer servers are a bonanza for uninterrupted 24/7 operations. Other areas of industry that can benefit from deploying energy saving DC powered enterprise computer servers includes factories, industrial automation, oil and gas, power plants and off-shore or mobile computing facilities.

The units range from 4-bays to 24-bays. Model: RM1708-DC as an example, shipping, has 8 bays and runs Windows or Linux NAS/SAN storage server.

RS-208DX

Specifications:

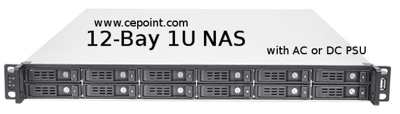

Rugged 1U 19″ rackmount NAS configuration with environmental monitors, IPMI remote management and monitoring. Rack mountable 1U enclosure with 6, 8, or 12 hot swappable 6Gb SAS3 2.5-inch HDD bays, hot swappable 6Gb SATA3 2.5-inch drives, -120V DC (or optional 2U redundant/swappable – 48V DC, 400W or larger power supply), and rack mounting kit.

• Xeon or embedded Atom family dual, quad or eight-Core processor series

• 12 4TB for 48TB raw capacity (RAID-5 available) included. Expandable RAID-0, 1, 5, 6 and 10 configurable

• RAID-1 (2x120GB) OS drive

• Up to 32GB of DDR3/4 2133MHz error correcting code (ECC or non-ECC) memory

RAID controller capable of RAID-5,0,1

• Five GbE LAN ports including Teaming

• IEEE 802.3ad Link (LACP) compliant

• Load balancing

• Port failover and Wake-on-LAN manager

• SMB/CIFS/NFS/Dynamic DNS

• Remote system management

• Remote boot and reset

• Remote image mounting

• Remote system monitoring and diagnostics

Robust protocol support and services

• Radius client or AD (Active Directory)

• FTP/SFTP secure protocol for file transfer

• SNMP support

• Remote monitoring

• HMI integrated data

• iSCI

• Rsync

• WebDAV

• Apple/MAC AFP

Based on Unix/Linux or Windows Storage Server Std.2016/2012 R2.

• Turnkey plug-n-play ready NAS

• Assembled and tested
