Qnap TR-002 2-Bay Hardware RAID Desktop Expansion With USB 3.1 Gen.2 Type-C for NAS or PC

External RAID Manager utility (for Windows and macOS) to view disk health, change RAID configurations, check logs, and update firmware of TR-002

Qnap Systems, Inc. launched the TR-002, a 2-bay hardware RAID expansion enclosure that can be utilized as a NAS storage expansion solution, and also as hardware RAID storage for Windows/macOS/Linux computers and NAS.

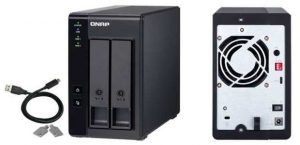

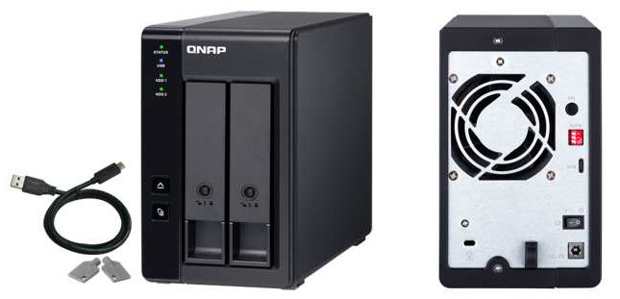

TR-002 front and rear

 Qnap Tr 002 Nas Front And Rear

The TR-002 connects to a PC/NAS via USB 3.1 Gen.2 Type-C and provides a dependable storage solution for various user requirements.

Click to enlarge

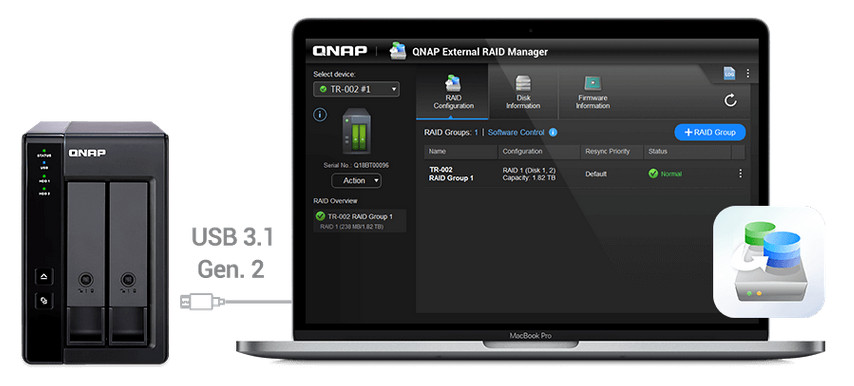

Qnap Tr002 Extension Scheme3

The TR-002 supports individual, JBOD and RAID-0/1 storage configurations. The company’s NAS users can use it with their NAS to set RAID parameters and create a storage pool by using the Storage and Snapshots app within QTS. Alternatively, it can be used as an external storage device for the NAS. Windows, macOS and Linux users with limited storage upgrade options can also use the TR-002 as an expansion unit, and a dedicated firm’s External RAID Manager utility (for Windows and macOS) can help them view disk health, change RAID configurations, check logs, and update the firmware of the TR-002.

Qnap Tr002 Extension Scheme

Qnap’s first Qnap hardware RAID storage expansion enclosure (the TR-004) has received wide acclaim since its launch. QNAP now introduces a 2-bay version, the TR-002, that comes with UBS 3.1 Gen. 2 connectivity, allowing NAS and PC users to take the advantage of TR-002’s high-speed data transfer with RAID protection,“ said Jason Hsu, product manager, Qnap.

A DIP switch on the rear of the TR-002 can switch the disk configuration. There are also status indicators, a one touch copy button and an eject button to make operations more intuitive. For compatible company’s NAS models and usage scenarios, see this link.

The TR-002 RAID Expansion Enclosure for NAS and PC is available.

Video presentation

Click to enlarge

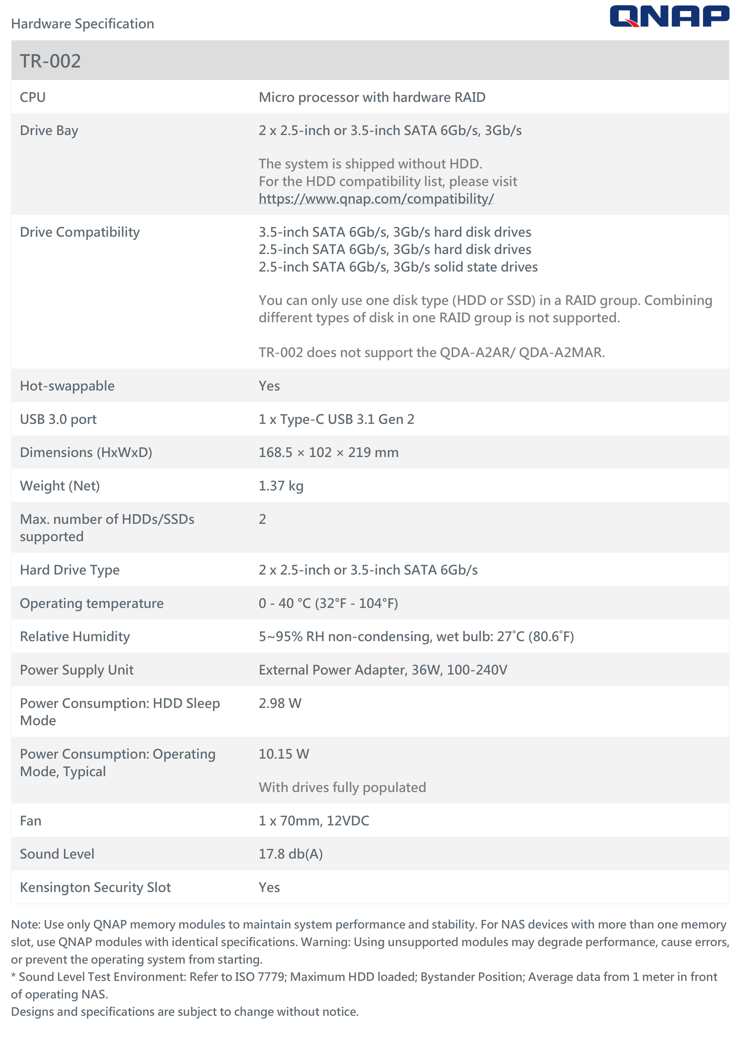

Qnap Tr 002 Spectabl
